Customized Lawn Mower
RNR-G550 (Customized)
Maximum Climbing Slope: 30°
Charging: Engine Self-Charging System
Operating Method: Remote Control
Travel Mode: Electric Tracked Self-Propelled
Maximum Remote Distance: 200m
Starting Method: Recoil & Electric Start
Product Description:

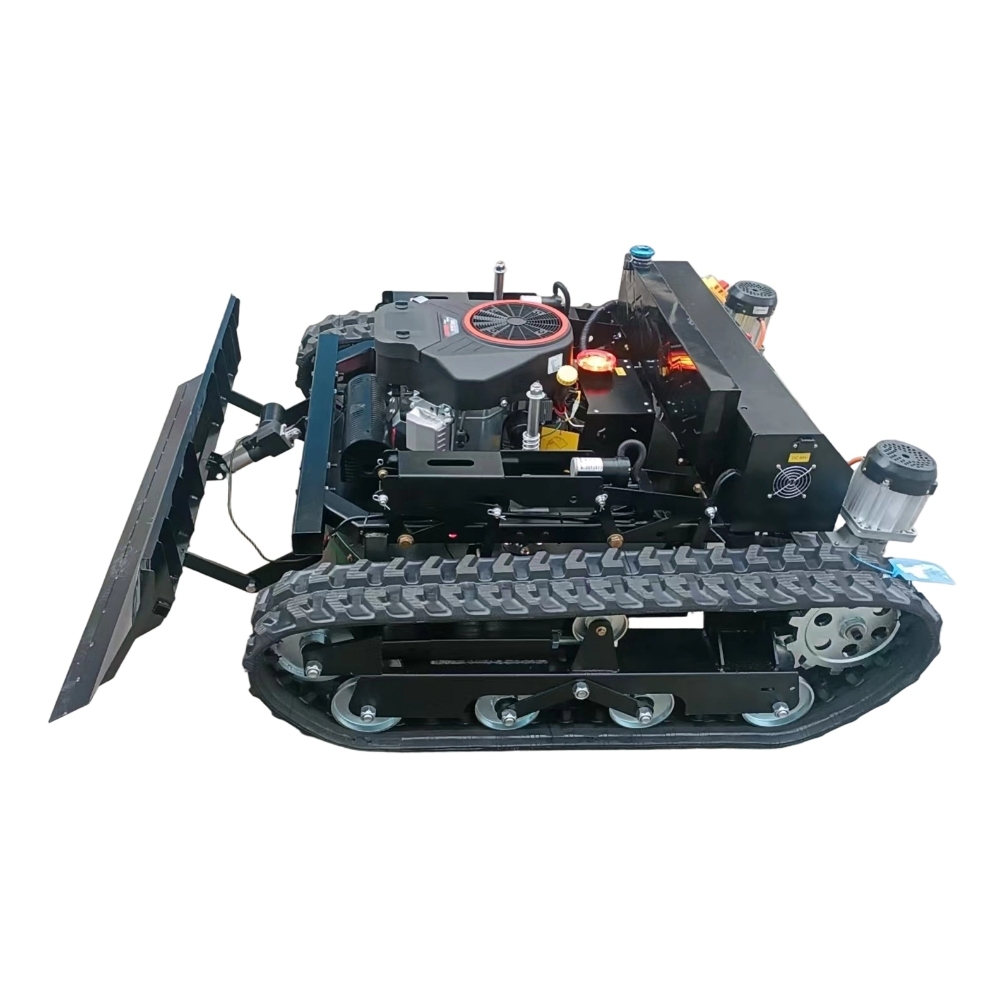

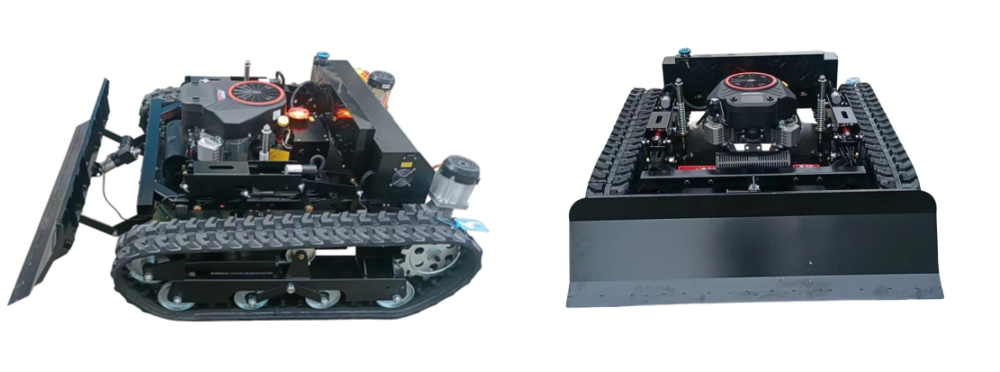

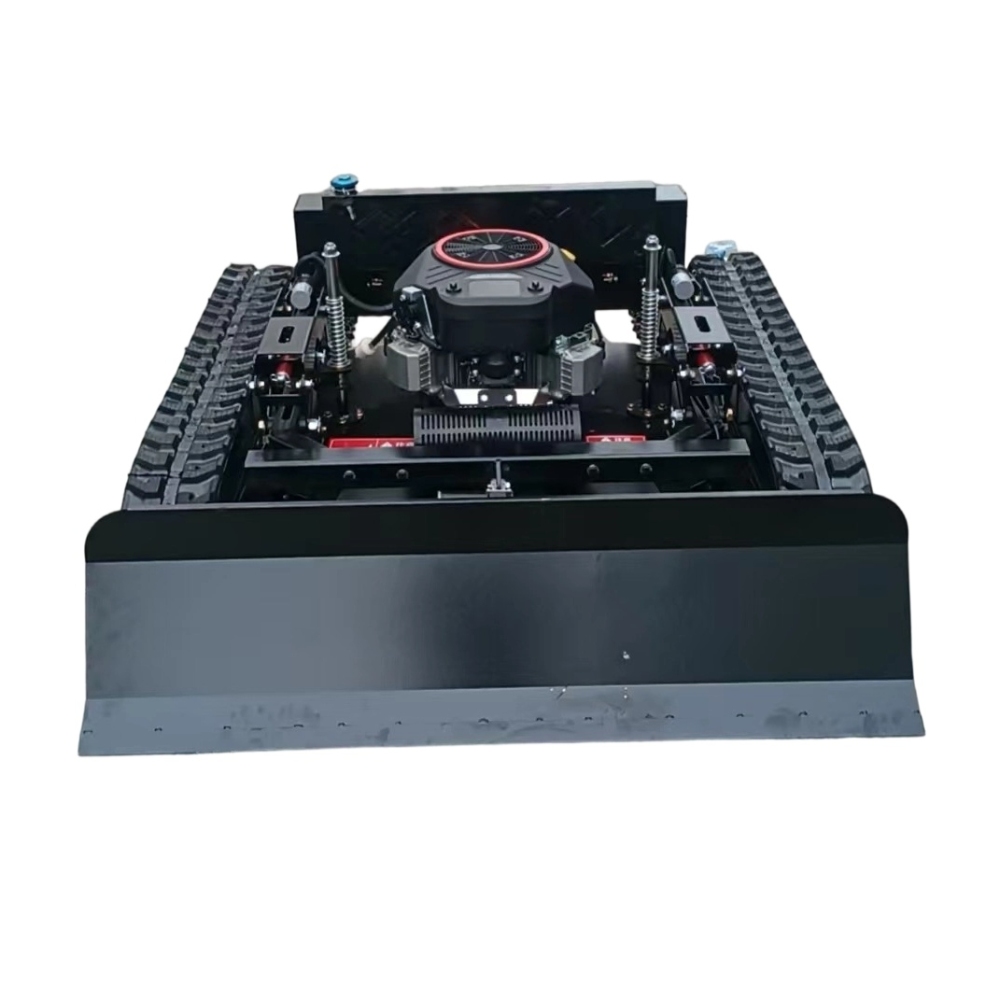

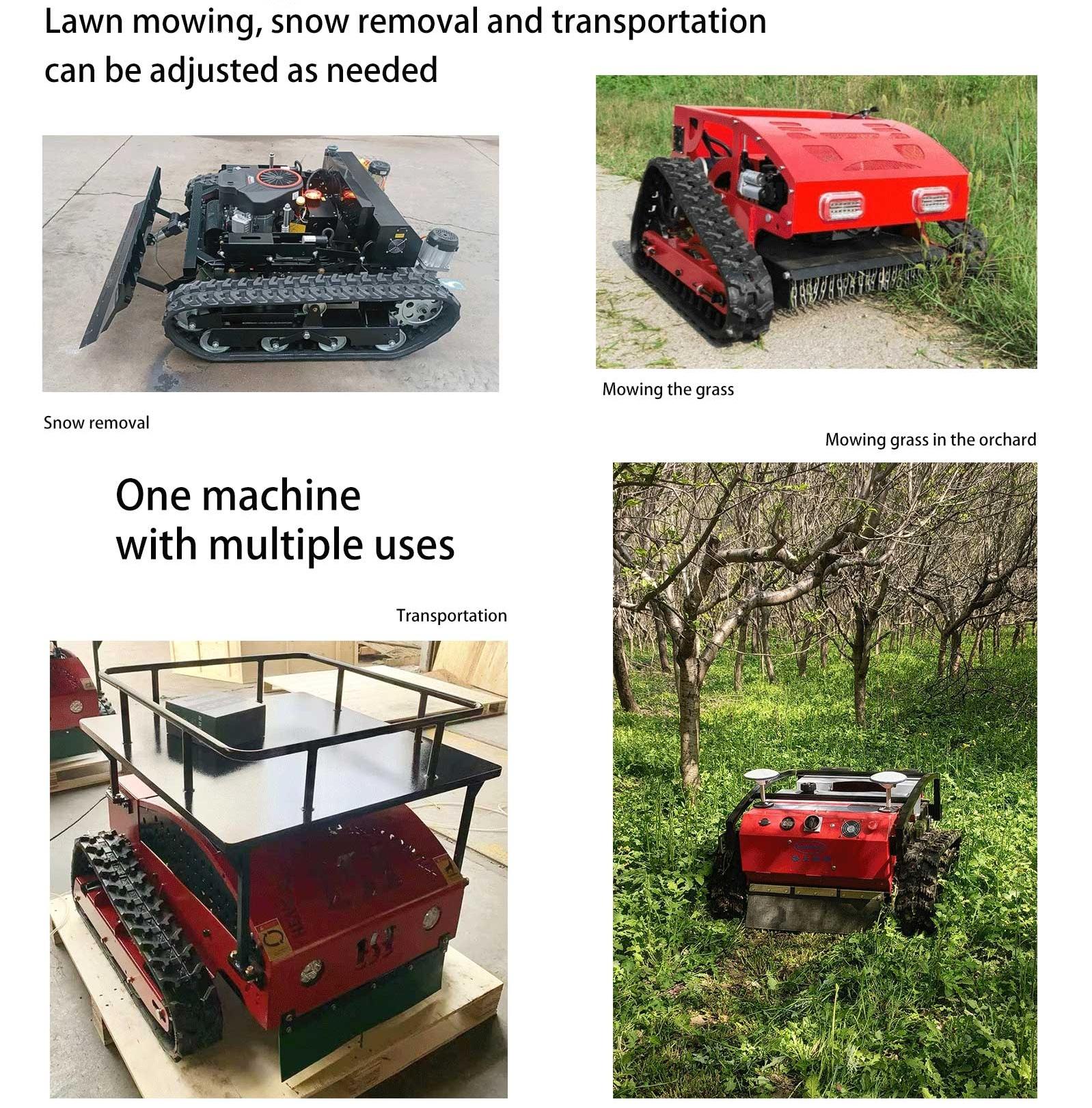

The robotic remote control lawn mower integrates mechanical and electronic control. It can move forward and backward, left and right, switch between high and low speeds, raise and lower the cutter head height, and start and stop the engine through a remote control. In addition to the mowing function, the remote controlled lawn mower supports customized expansion. By installing snow shovels and transport brackets, it can be used as a small snow removal vehicle and transport vehicle.
Parameters:
RNR-G550 Multifunctional Remote Control Lawn Mower Performance and Specifications | |
Application | Overgrown grass, weeds, slopes and embankments, orchards, gardens, lawns, etc. |
Package Dimension | (L*W*H)1120mm*1020mm*670mm |
Mower Dimension | (L*W*H)1060mm*950mm*550mm/including bumper |
Mower Weight | 163KG/219kg with package |
Cutting Width | 550mm |
Cutting Platform Height Adjustment | Remote Lifting/Lowering |
20mm-150mm | |
Operation Speed | 0-4km/h |
Maximum Climbing Slope | 30° |
Charging | Engine Self-Charging System |
Operating Method | Remote Control |
Travel Mode | Electric Tracked Self-Propelled |
Maximum Remote Distance | 200m |
Fuel Tank Capacity | 4.8L |
Rated Power of Travel Motor | 0.6kw |
Rated Voltage of Travel Motor | 24v |
Rated Power of Generator | 1.5kw |
Engine | |
Brand | 224CC LONCIN (Optional Electric Start) |
Standard Equipment Power | 9HP |
Engine Type | Vertical Shaft |
Engine Stroke | Four Strokes |
Starting Method | Recoil & Electric Start |
Fuel | 92# Gasoline |
Application:

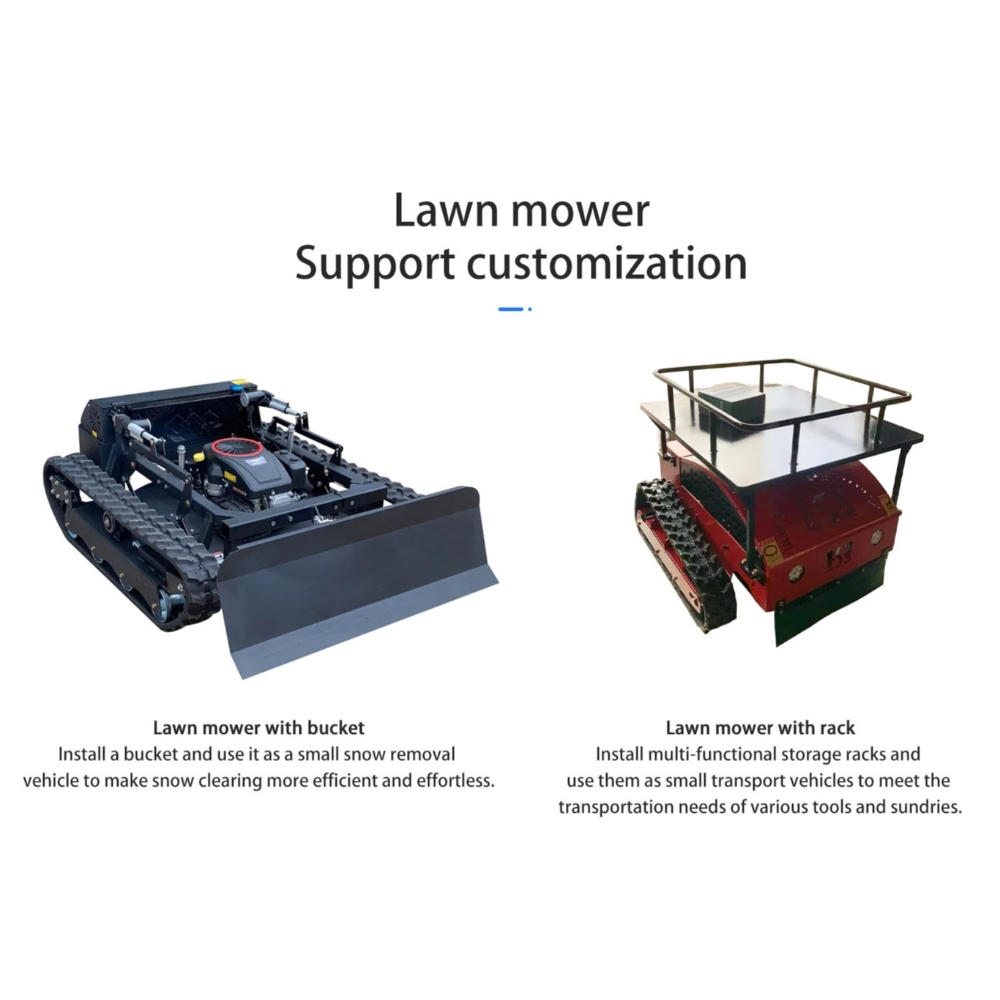

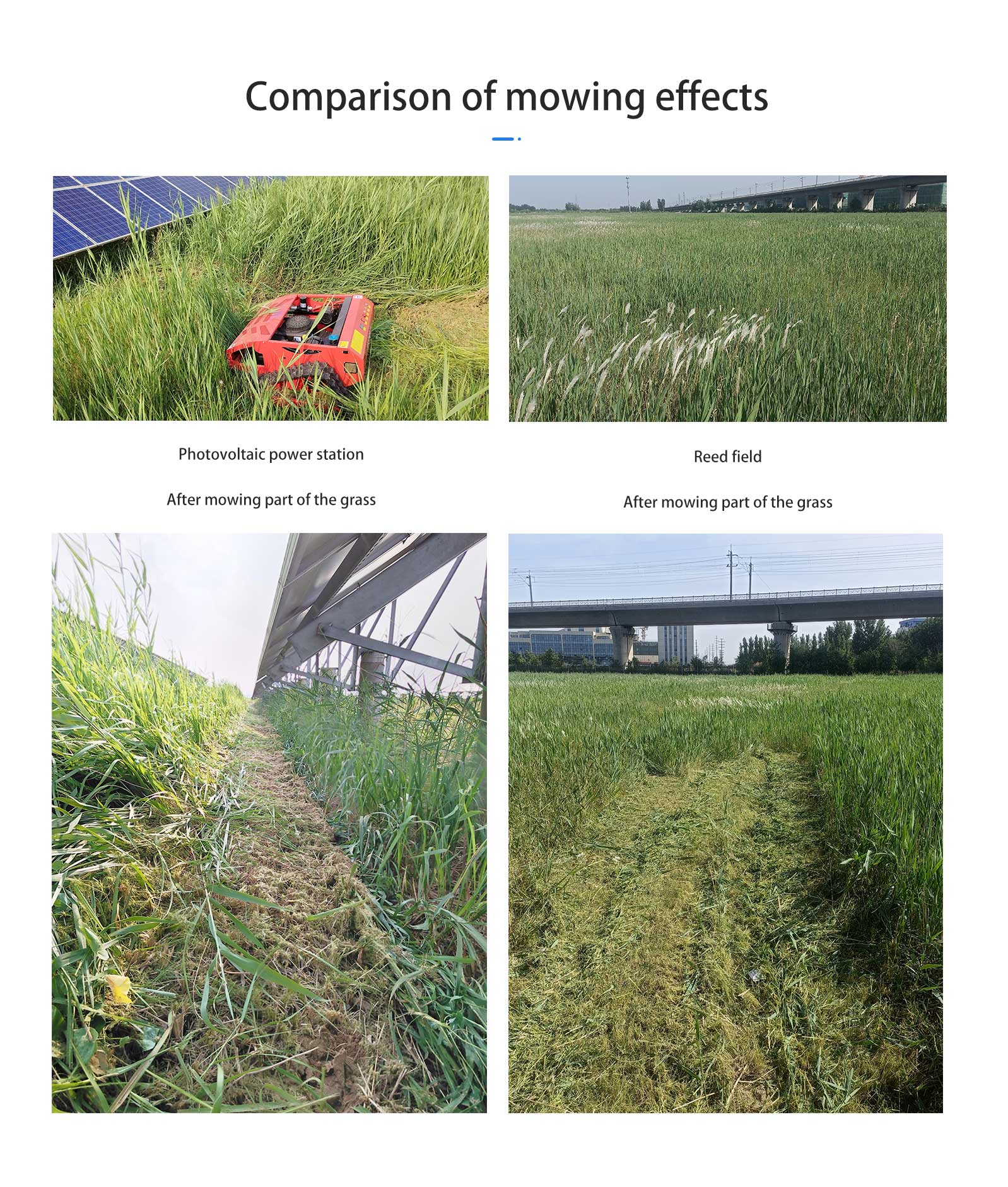

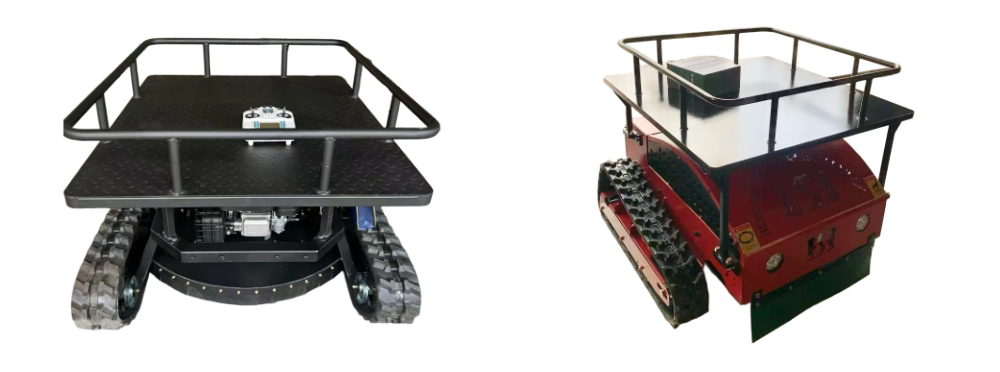

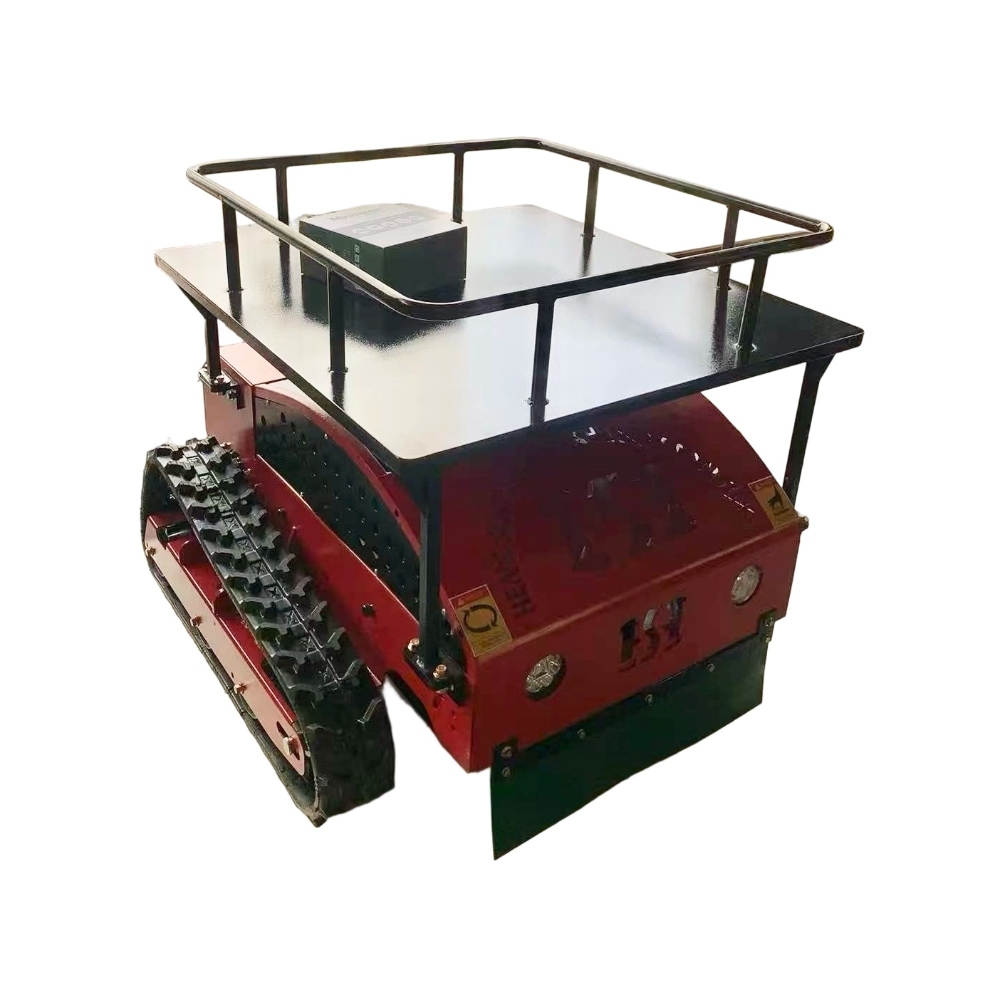

The RNR-G550 gasoline remote control lawn mower has excellent scene adaptability and can operate stably in various environments such as overgrown grass fields, slopes and embankments, orchards, gardens and lawns. In addition to efficiently completing the lawn mowing task, users can also remotely control the remote lawn mower to clear the snow on orchards and garden roads by installing snow shovels and other snow removal equipment. It can also be equipped with a dedicated transport bracket to upgrade it into a small transport vehicle, assisting in transporting operation tools, orchard fruits, etc., significantly improving operation efficiency.
Important Note:
1. Minimize the entry of personnel and vehicles within the robot's working area.
2. For long-term storage exceeding three months, the battery must be charged to above 30% ~ 50%.
3. This robot remote control lawn mower must use the matching charger and battery, and cannot be replaced with any other model of charger and battery.
4. If the robot remote control lawn mower is not used for a long time, charge the battery once every three weeks to prevent battery damage caused by power loss.

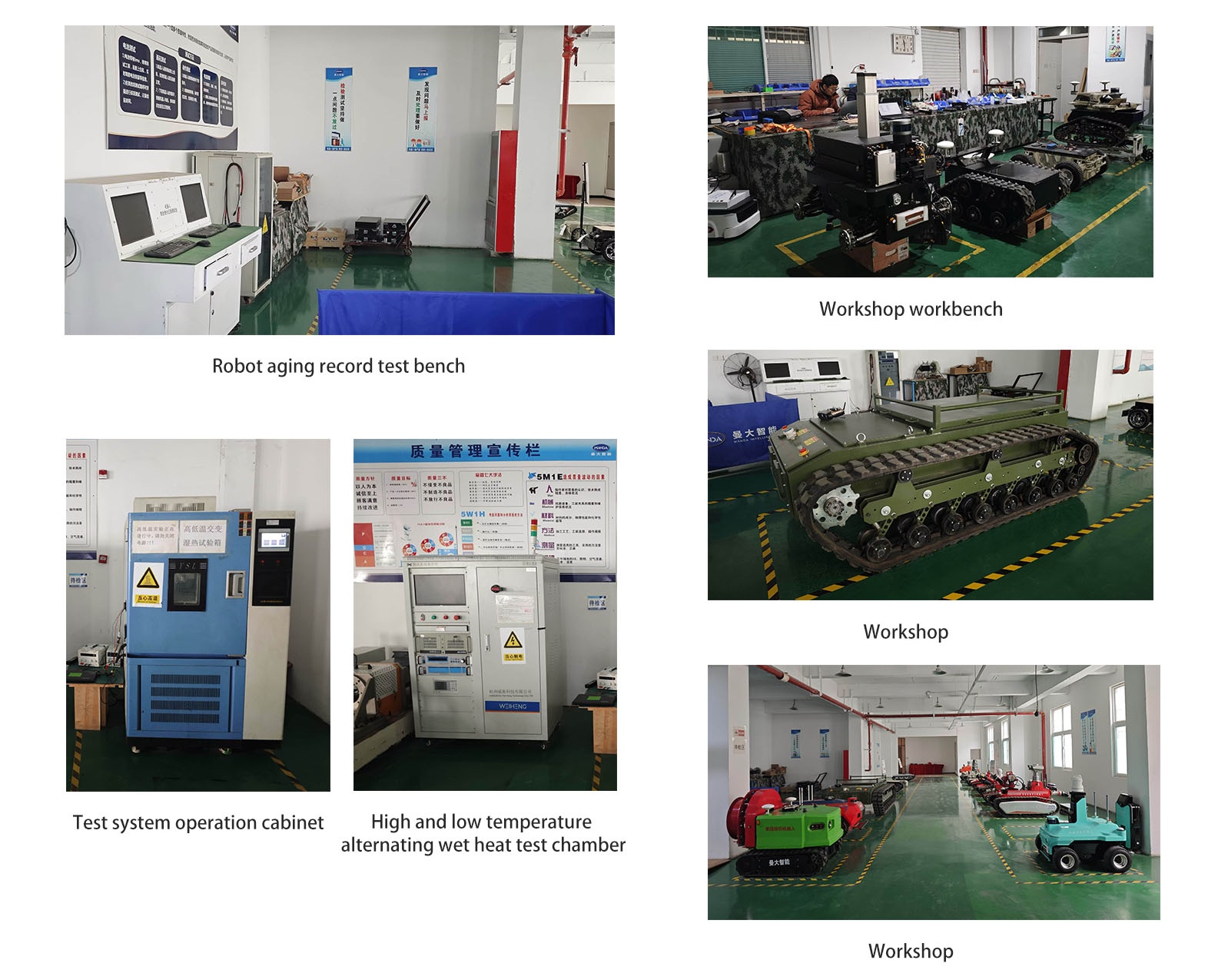

Advanced Equipment&Workshop:
Relying on advanced production and testing equipment and having established a complete quality control system, we can respond quickly to problems and implement closed-loop management, thus ensuring the stability and reliability of product quality. The main testing equipment includes the robot aging record test bench, high and low temperature alternating wet heat test chamber, test system operation cabinet, etc.
Certificate:
The company has successfully passed the ISO9001 quality management system, environmental management system and occupational health and safety management system certifications, ensuring the continuous stability of product quality. Meanwhile, multiple products such as explosion-proof chassis have obtained explosion-proof qualification certificates and corresponding test reports.
