Outdoor Robot Platform

Product Description

It is a modular mobile platform designed specifically for modern agricultural machinery. In response to the challenges of non-standard row spacing in farmlands and the diversification of agricultural equipment, it features an adjustable wheel track and wheelbase structure. The outdoor robot platform platform can be equipped with a variety of agricultural implements such as sprayers, fertilizer applicators, transport buckets, seeders, and weeders, allowing for flexible combinations. It can adapt to various farmland operating environments and crop planting modes. Additionally, it is built with a VCU controller and supports the CAN communication protocol. It is compatible with multiple navigation modes including Beidou, laser, and follow navigation, enabling unmanned operation. This provides convenience for users’ secondary development.

1. The 4 wheel drive chassis can manually adjust the wheel track and wheelbase, with ranges of (900-1200mm) and (850-1350mm) respectively, which can precisely adapt to the operation requirements of different crops and different environments.

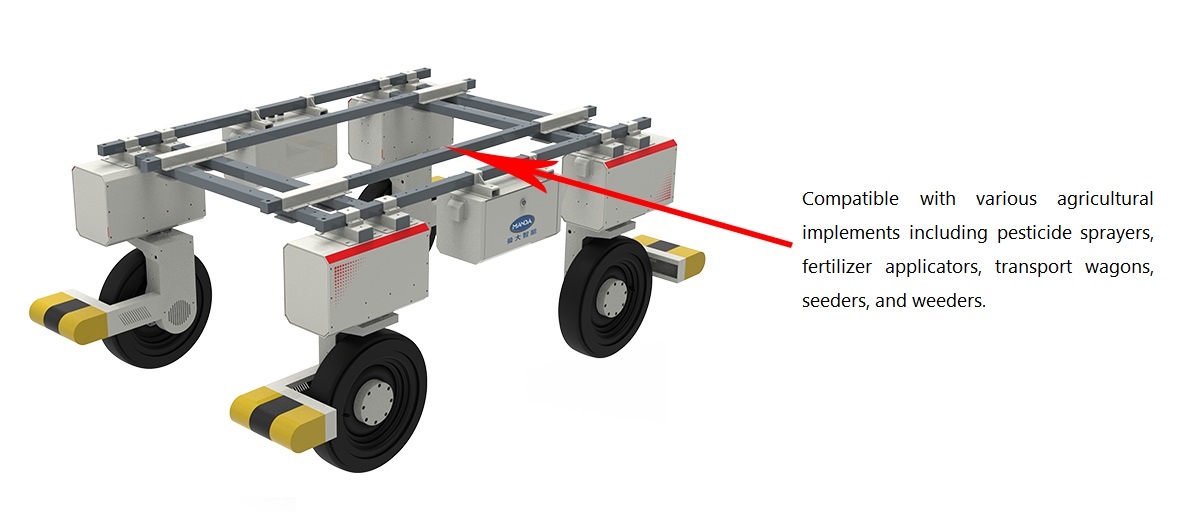

2. The agricultural four-wheel drive and four-wheel steering chassis has a simple structure, ample space for expansion of the superstructure, and is compatible with the quick replacement of various agricultural implements.

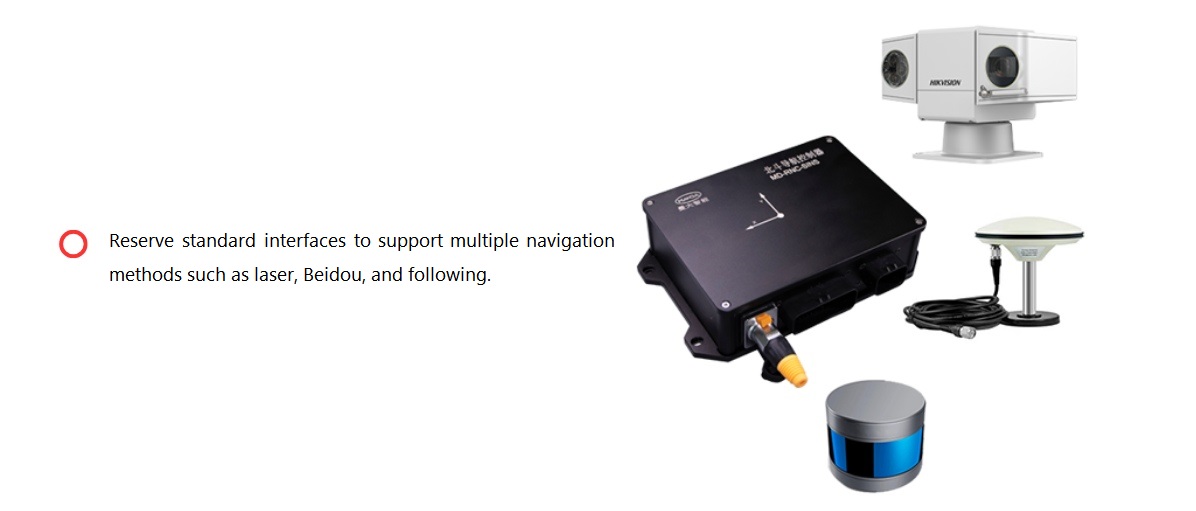

3. The wheeled chassis uses hub motors, steering motors, and a built-in VCU, which can be easily matched with autonomous driving control systems. It also reserves standard interfaces to support multiple navigation methods such as laser navigation, Beidou navigation, and follow navigation.

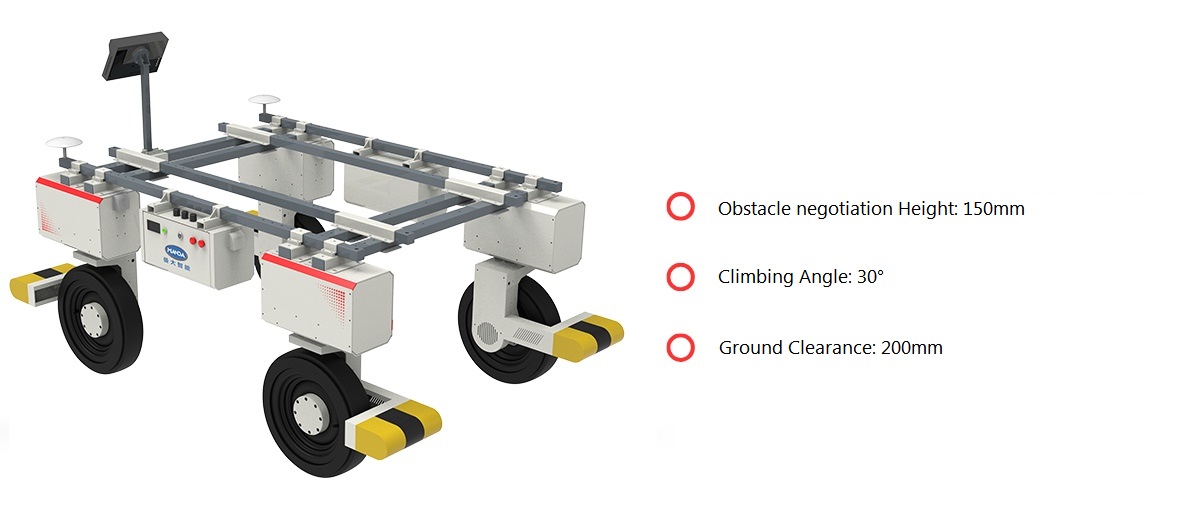

4. It can carry 300kg of goods, has a speed of 10km/h, a height to cross obstacles of 1500mm, a climbing Angle of up to 30°, and a ground clearance of 200mm.

Parameters

Application

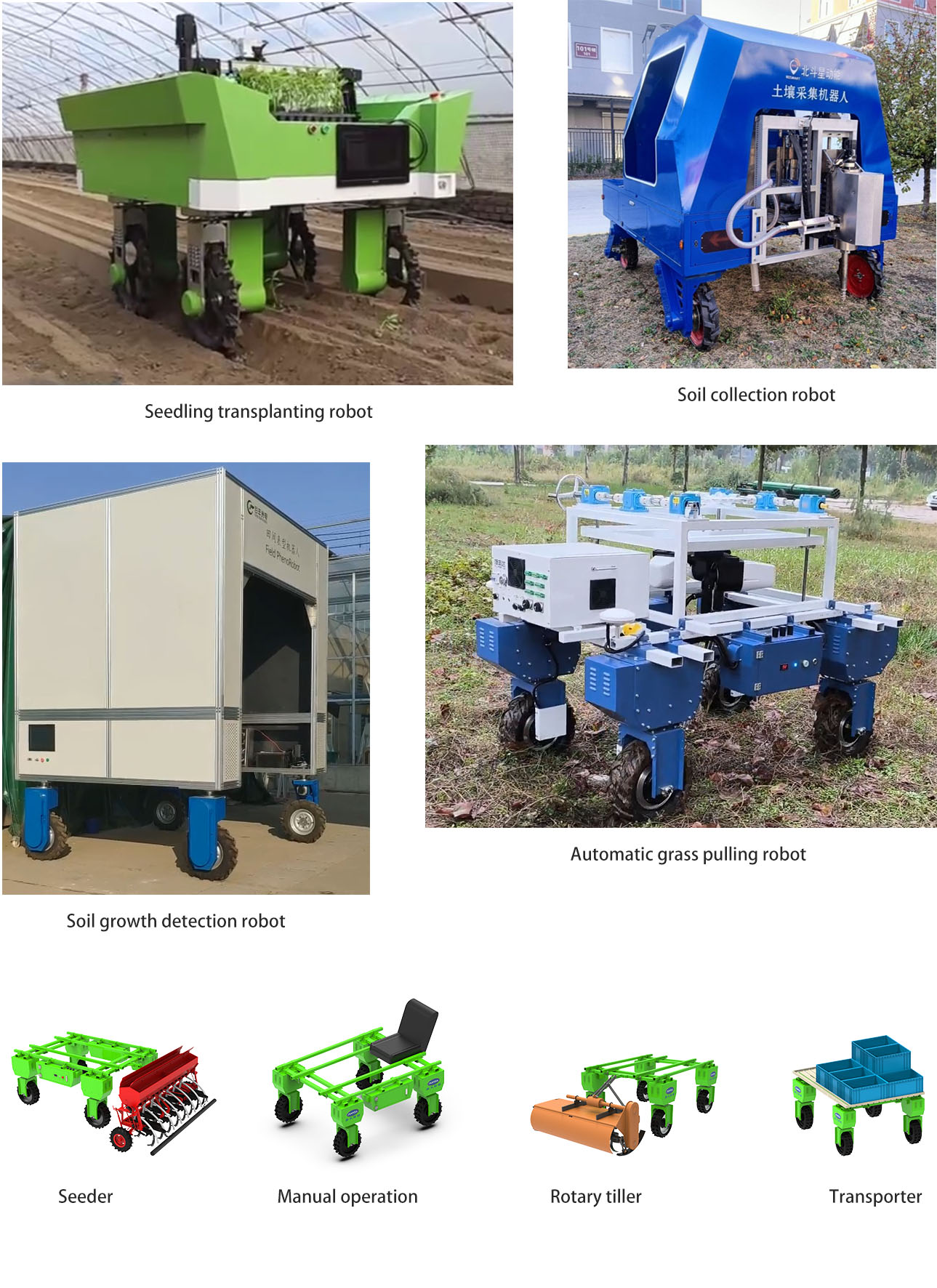

The 4 wheel drive chassis is specially developed for the agricultural sector. It can be equipped with various agricultural machinery such as spraying, fertilizing, weeding and transportation, enabling it to meet the expansion needs of different agricultural operations.Chassis built-in VCU controller, support user quick secondary development. Can be widely used in a variety of intelligent agricultural robot scenarios, such as:

1. Seedling transplanting robot

2. Soil collection robot

3. Soil growth detection robot

4. Automatic grass pulling robot

The wheeled chassis supports customized programming, enabling the fulfillment of specific operational requirements and effectively enhancing the intelligence and scalability of the equipment.

Certificate

To ensure the stability of product quality and meet the demands of the international market, Manda Intelligent has fully implemented the standardization of management and products. The enterprise's products have been certified by national and international authoritative institutions, and have cumulatively obtained multiple explosion-proof qualification certificates and test reports.

Packaging and Shipping

To ensure the intact delivery of your products, the wheeled chassis RMP-WL300 is packed in a sturdy wooden box. Before shipment, the wheel bodies will be professionally fixed to ensure safe transportation. Meanwhile, there will be a product qualification certificate inside the wooden box.
