Tracked Carrier
Boasts powerful power and high load-bearing capacity
Independent shock absorption design for easy handling of complex road conditions
Spacious internal compartment space, capable of carrying more equipment
Modular design, enabling convenient disassembly and maintenance of track modules
Built-in VCU supporting rapid secondary development
Product Description:
Tracked carrier RMP-D400 offers comprehensive robot chassis solutions for the heavy-duty industry. With a maximum load capacity of 700kg, it meets the demand for heavy object handling in industrial scenarios. The track design evenly distributes the weight, maintaining good grip in complex terrains such as mud and gravel, and the climbing Angle can reach 35°. Tracked carrier is designed with independent shock absorption, effectively enhancing operational stability. The large tracked vehicle chassis kit supports handheld remote control operation. Meanwhile, it can be flexibly equipped with laser navigation and Beidou navigation to meet the precise positioning requirements of different scenarios.
Parameters:
Description | Specification | Description | Specification |
Model | RDR-F700D-M1 | Steering type | 2WD differential type |
Dimensions | L2480×W1670×H710mm±50mm | Total weight | 900kg±50kg |
Operating Speed | 0~12km/h | Run time | 4h |
Obstacle negotiation height | 300mm | Climbing angle | 35° |
Ground clearance | 300mm±30mm | Maximum load | 700kg |
Turning diameter | 3000mm±100mm | Suspension | The MacPherson style |
Track parameter | 56 joints in width of 250mm | Track material | Rubber |
Explosive-proof grade | None | IP Grade | IPx5 |
Operation mode | Handheld remote control | Remote control distance | 50m(clear sight distance) |
Charging time | 12h (to reach 80% battery capacity ) | Charging | Manual |
Battery Parameter | DC96V lithium battery | Working temperature | -20℃~+55℃ |
Brake mode | Electromagnetic brake | Communication interface | CAN |
Navigation | It can be equipped with laser navigation, Beidou navigation. | ||
Application:

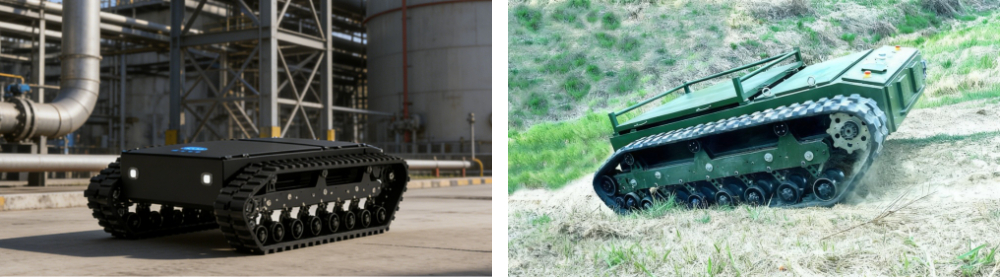

Tracked carriers, with its outstanding off-road capability, high load-bearing capacity and motion stability, is widely used in scenarios such as industrial inspection and detection, education and scientific research, emergency rescue, and intelligent logistics.
Certificate:
The company's independently developed products such as crawler lawn mowers and large robot chassis have established a complete product quality control system and have passed the ISO9001 international quality system certification. We integrate standardization and systematization into every link from R&D to production to ensure that the entire process is precisely controllable and quality is traceable.
Technical and After-sales Service Uarantee:
Pre-sale: We offer professional technical connection and consultation services. Based on application scenarios and requirements, we create industry application solutions and OEM customized development.
During-sales: Ensure the timely delivery of products and provide full technical guidance, installation and commissioning services to ensure that the equipment can be put into efficient operation as soon as possible.
After-sales: Establish a professional and efficient after-sales response mechanism to quickly solve all kinds of problems. At the same time, we provide product upgrade and maintenance services.
