Tractor GPS Autosteer
Rated Voltage: 12VDC/24VDC
Control Signals: RS232/CAN
Servo design, high control accuracy, accuracy can reach 0.1 degree.
Integrated design, easy installation and maintenance.
It is used for unmanned agricultural machinery, road engineering vehicles,low-speed unmanned vehicles, etc. Customization supported.
Product Description:

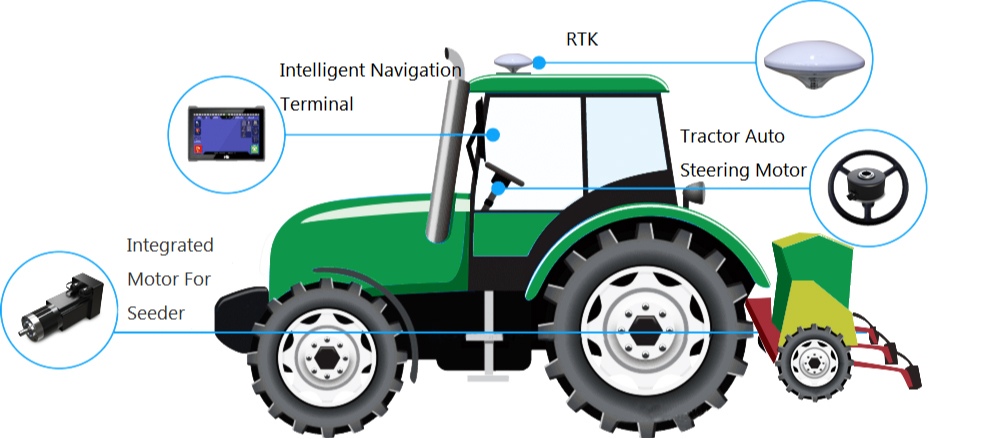

The Auto Steering Motor is a brushless DC torque motor that supports a 12V power supply system. Its peak torque can reach 13 N·m and the rated torque is 7 N·m. It adopts a highly integrated one-piece design, which is integrated into a compact shell interior, significantly reducing installation complexity while meeting strict dust-proof, moisture-proof and salt spray-proof requirements. It is a key actuating component of intelligent agricultural machinery (such as unmanned tractors, automatic navigation transplanters, etc.), responsible for converting the steering instructions of the control system into mechanical actions to achieve precise steering.
Product Parameter:
Model | KY170DD01005-08G |
Rated Voltage | DC 12V/24V |
Power Supply Range | DC 9V-36V |
Rated Power | 50W |
Rated Current | 10A |
Rated Speed | 100RPM |
Instantaneous Max.Current | 20A |
Working Mode | Speed Mode, Position Mode |
Under voltage protection | 7V（adjustable） |
Overvoltage protection | 32V（adjustable） |
Control Method | RS232/CAN |
Feedback Part | Linear encoder |
Operating Temp. | -25-+55℃ |
Storage Temp. | -35-+65℃ |
Protection Grade | IP55 |
Cooling Method | Natural Cooling |
Weight | ≤5kg |
Application Areas:
Unmanned Driving Auto Steering Motor is specially optimized for precision agricultural machinery and unmanned drive systems. It can meet the requirements of deep ploughing in farmland, paddy fields, and operations in high-viscosity soil, and has high precision, high reliability and environmental adaptability. The hollow shaft interface also facilitates connection and installation with the steering wheels of agricultural machinery and equipment.
Drawing:
Adapters For Different Tractors | |||
Adapter model | Tractor Brands &Models | Adapters teeth | Adapters size |
A | 1. John Deere 2. CASE 110 3.New Holland (1404, 2104, 6070, 110-90, 165, TD85D, 1654, 1304) 4. Fendt(716) 5. French Renault11404 | 36 | 21.8-22.1 |
B | 1.WORLD 1304，2204，604，904, 1404，1604 | 36 | 18.2 |
W | 2. DEUTZ (904,454,604,704,804 1204，1604,1654) | 36 | 18.5 |
N | 1. CASE(PUMA145,185CVX) 2. CLASS 3. MASSEY FERGUSON 4. Fendt (936) 5. Valtra N154 | 36 | 15.8 |
D | 1. CASE CVX 1170 2. Fendt (Vario 772, 714 Vario, 2204) 3. LAMBORGINI | 36 | 20.4 |
F | Valtra(2104,191,1904,1504,8158 T183,T171) | Single key | 24.5 |
K | Belarus MTZ 824, 1204 | 36 | 17.8 |
NH40 | 1. New Holland 1304, TS100 2. CASE MXM | 40 | 17.7 |
T | 1. Kubota 594 2. Yanmar Agrica AC21W | 18 | 15 |

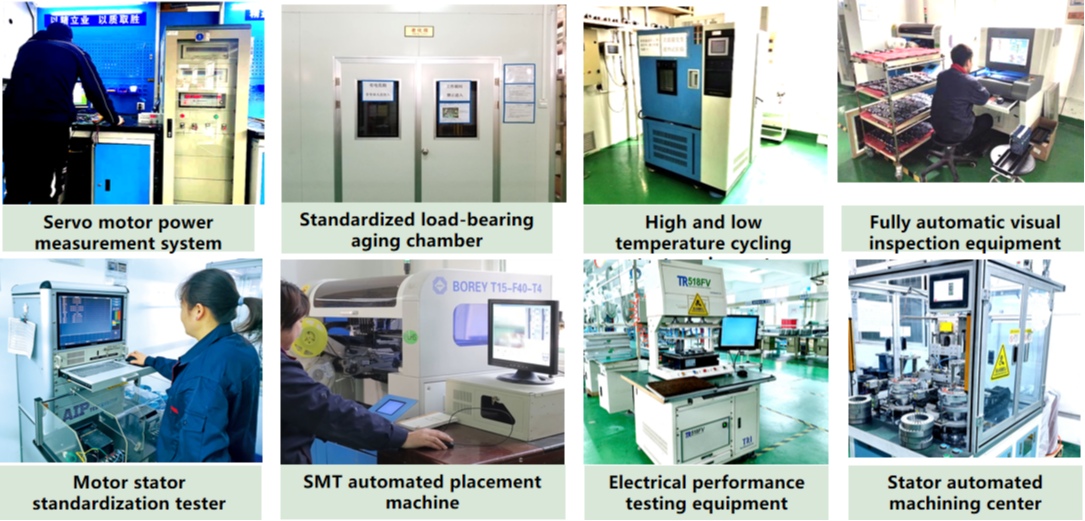

Advanced Equipment&Workshop:
Our production workshop adopts an advanced intelligent manufacturing system and is equipped with automated devices. Through standardized motor stator testing instruments, fully automatic visual inspection equipment, withstand voltage testing instruments, salt spray test chambers and other testing devices, products are inspected to ensure that each product has outstanding performance and reliability, providing customers with complete power drive solutions.
FAQ:
Q1: What is the price of the product?
A1: The specific price depends on the model, power and purchase quantity. Welcome to provide detailed requirements and obtain an accurate quotation.
Q2:Can you enjoy discounts for bulk purchases?
A2: Yes, we adopt a stepped pricing system. Bulk purchases can enjoy price discounts. The specific quotation can be further discussed in detail.
Q3:Does it provide technical support and after-sales service?
A3: We adhere to a customer-centric approach, offering 24-hour rapid response after-sales service and full technical support from a professional technical team to ensure efficient problem-solving.
Q4:What is the delivery cycle like?
A4: For inventory products, we will arrange for shipment immediately upon receiving the order. For out-of-stock products or customized products, the production progress and delivery time will be synchronized in real time.
Welcome to consult us at any time. We will do our best to answer your questions!
