Remote Control Mower
RNR-G800-M1
Fuel: 92# Gasoline
Engine Type: Vertical Shaft
Engine Stroke: Four Strokes
Starting Method: Electric Start
Engine Brand: LONCIN608CC
Operating Method: Remote Control
Charging: Engine Self-Charging System
Travel Mode: Electric Tracked Self-Propelled
Cutting Platform Height Adjustment: Remote Lifting/Lowering 20mm-200mm
Product Description
The RNR-G800-M1 tracked remote controlled lawn mower has a cutting width of 800mm. It can cover a large area with a single pass, significantly reducing the number of round trips and greatly enhancing the work efficiency. Equipped with straight metal blades, it can easily handle various types of vegetation such as weeds, and is widely applicable to large-scale operation scenarios in orchards, farms, and municipal landscaping. The effective remote control range of the remote lawn mower can reach up to 200 meters. Operators can complete the operation from a safe position away from steep slopes, ditch edges, and complex terrains. With a crawler chassis, it has excellent performance in climbing slopes and overcoming obstacles. The maximum climbing angle can reach 30°, enabling it to easily handle undulating terrains such as slopes and hills.
Parameters
RNR-G800-M1 RC Lawn Mower Performance and Specifications | |
Application | Overgrown grass, weeds, slopes and embankments, orchards, gardens, lawns, etc. |
Package Dimension | 1370mm*1230mm*730mm(L*W*H) |
Mower Dimension | 1320mm*1180mm*620mm(L*W*H) |
Mower Weight | 308kg/348kg with package |
Cutting Width | 800mm |
Cutting Platform Height Adjustment | Remote Lifting/Lowering |
20mm-200mm | |
Operation Speed | 0-4km/h |
Maximum Climbing Slope | 30° |
Charging | Engine Self-Charging System |
Operating Method | Remote Control |
Travel Mode | Electric Tracked Self-Propelled |
Maximum Remote Distance | 200m |
Fuel Tank Capacity | 8L |
Rated Power of Travel Motor | 0.8kw |
Rated Voltage of Travel Motor | 24v |
Rated Power of Generator | 3kw |

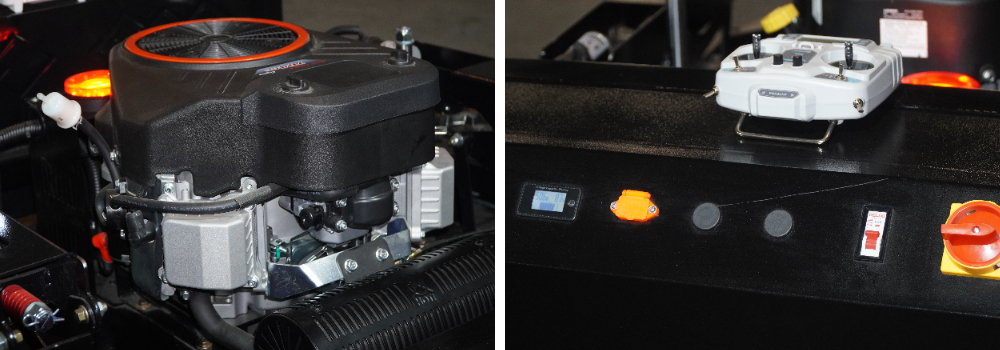

Engine | |
Brand | LONCIN608CC |
Standard Engine Power | 22HP |
Engine Type | Vertical Shaft |
Engine Stroke | Four Strokes |
Starting Method | Electric Start |
Fuel | 92# Gasoline |
Application

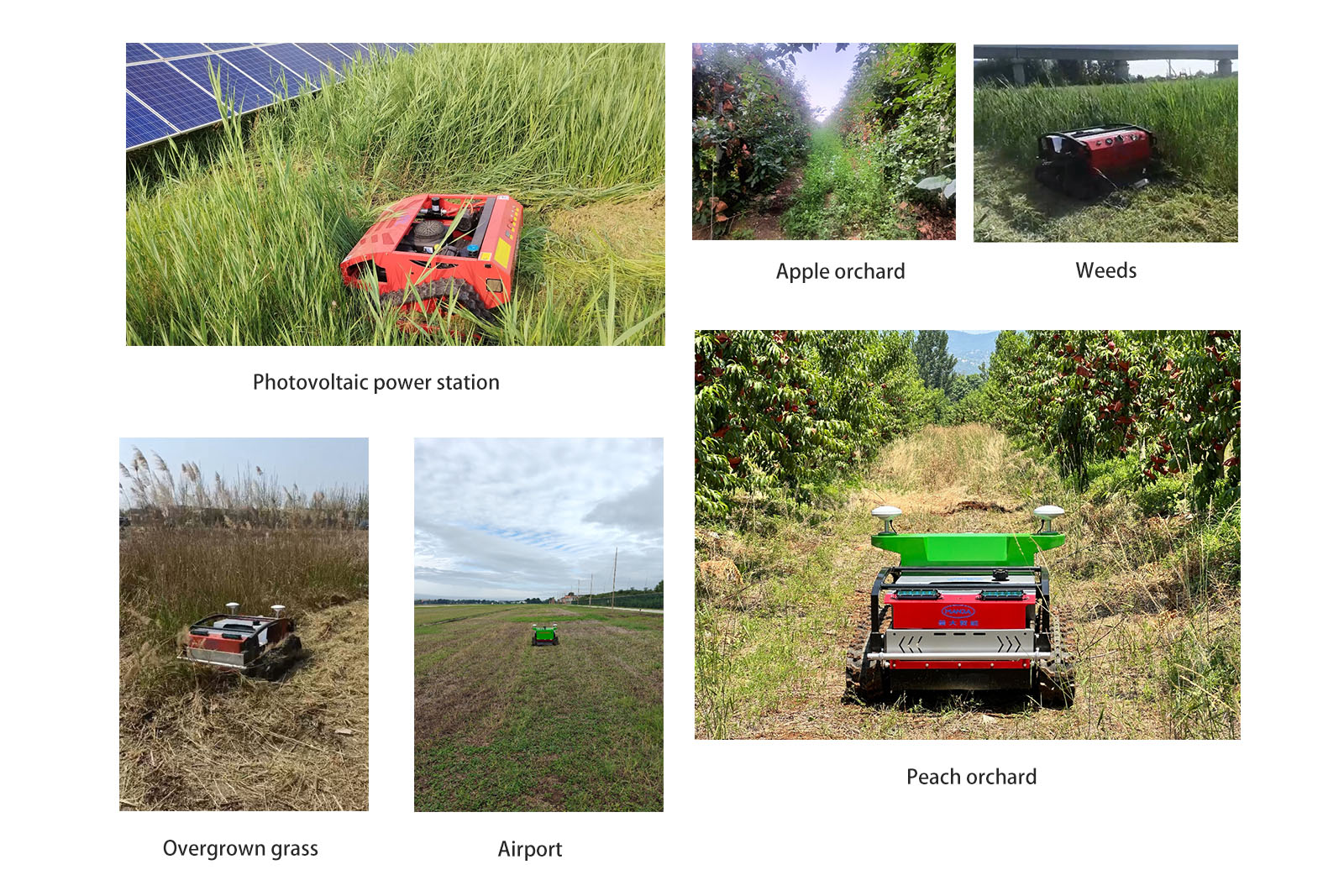

The RNR-G800-M1 remote control robot lawn mower, with its 800mm cutting width, 200m remote control range, 30° climbing slope capability and strong maneuverability, can be widely applied in various complex working environments:

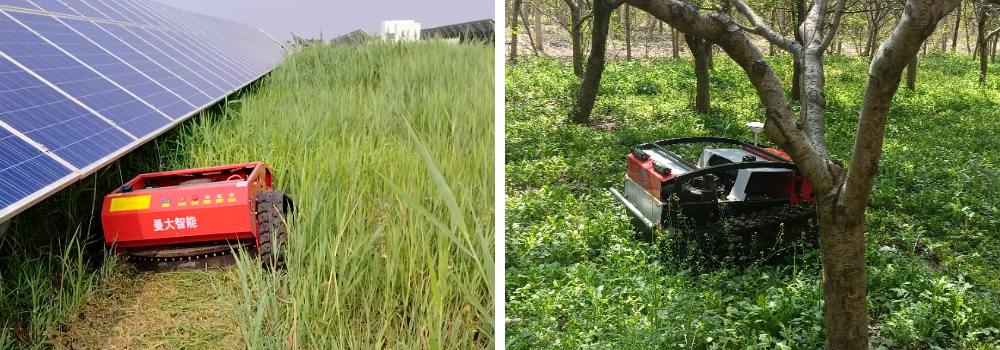

Fruit orchards and agriculture forestry: Move freely under the fruit trees, easily clear the weeds between rows, and reduce the cost of manual weeding.
River embankment and green area: Capable of stable operation in complex areas such as slopes and embankments. The crawler chassis has strong grip and is less prone to skidding or overturning.
Photovoltaic power station: Move flexibly beneath the photovoltaic panels and within the gaps of the array, regularly clear the vegetation to ensure the power generation efficiency of the photovoltaic modules.

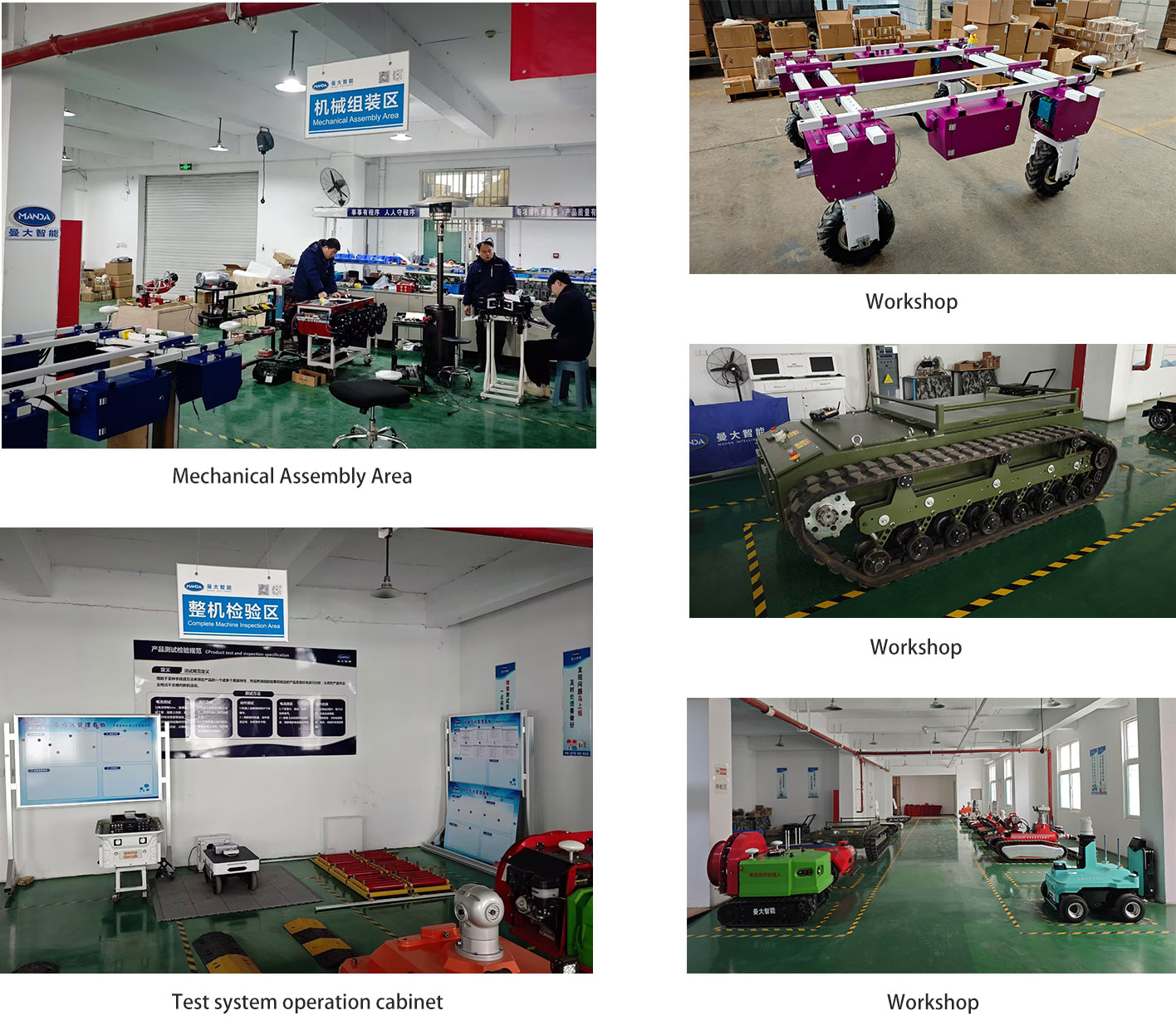

Advanced Equipment&Workshop
In development, the usage of mainstream simulation software can prevent risks in advance. A complete product quality control system have been established for problems source tracing, closed loop improving and PDCA cycle. The main test equipment includes aging test room, high and low temperature experimental equipment, motion simulation equipment, etc., to ensure stability and reliability of product.
Certificate
To ensure the stability of product quality and meet the demands of the international market, Manda Intelligent has fully implemented the standardization of management and products. The enterprise's products have been certified by national and international authoritative institutions, and have cumulatively obtained multiple explosion-proof qualification certificates and test reports.
