Wheeled Robot Chassis
RMP-WL100
Four movement modes: lateral movement, diagonal movement, Ackermann steering, and pivot steering.
Compact design for operation in confined spaces.
Independent suspension system ensures stable vehicle body even in complex terrains.
Can be Equipped with a multi-level obstacle avoidance solution to reduce collision risks.

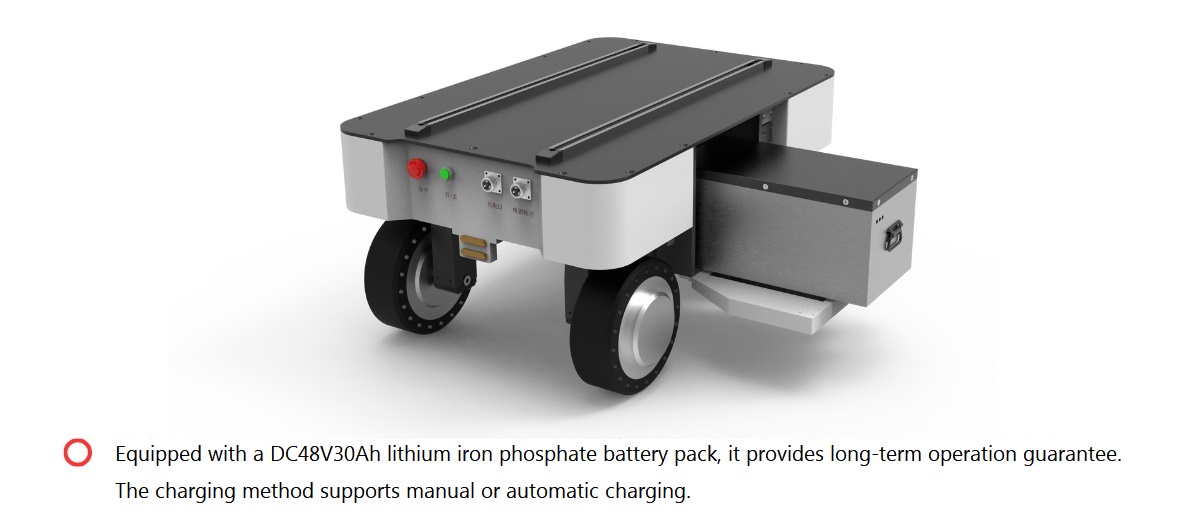

Quick-detachable battery design fully meet continuous operation requirements.

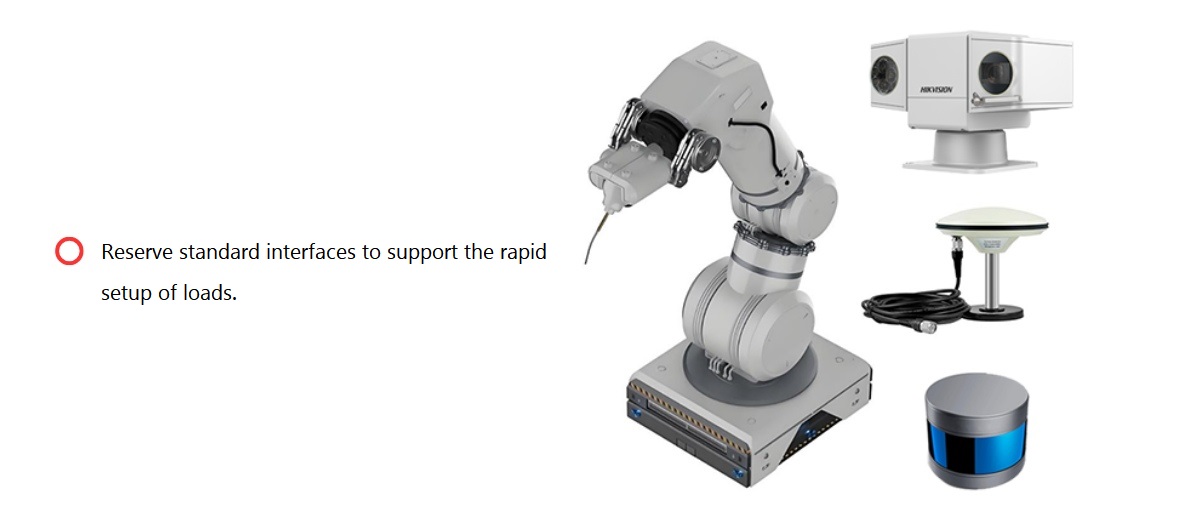

Built-in VCU, supporting rapid secondary development and function expansion.
Product Description:

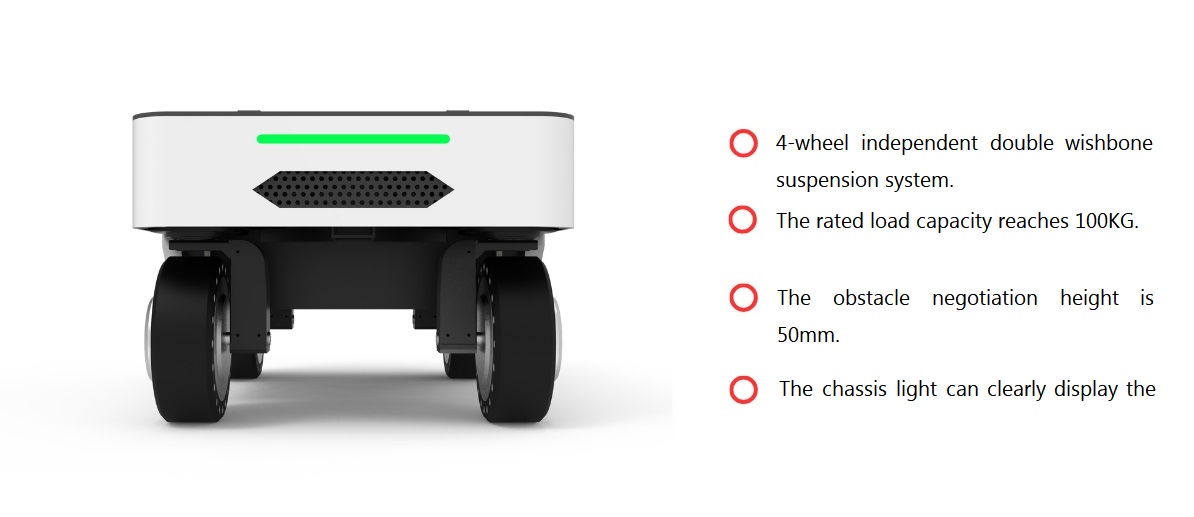

The RMP-WL100 is a compact mobile robot chassis that supports four types of wheeled motion patterns. It is highly flexible to operate and can work in various narrow Spaces. Equipped with 4 sets of independent double-wishbone suspension shock absorption structures, it can easily handle hard road environments both indoors and outdoors. Supports one-click switching among four movement postures: lateral movement, diagonal movement, Ackermann steering, and pivot steering, adapting to the needs of various complex scenarios. The wheeled robot chassis is equipped with a circulating heat dissipation system, an inbuilt VCU control unit, and a standard CAN communication protocol, which can help users quickly achieve secondary development and scene implementation.
Parameters:
Description | Specifications | Description | Specifications |
Overall dimensions | L730xW500xH365mm | Curb weight | 75kg |
Operation speed | 5.4m/s | Rated load | 100kg |
Obstacle clearance height | 50mm | Climbing angle | 15° |
Wheelbase parameters | 480mm | Track parameters | 380mm |
Ground clearance | 120mm±20mm | Exterior color | White + black |
Tturning diameter | 900mm±50mm | Shock absorption form | Double wishbone type |
Tire parameters | 8-inch wheel hub motor/200mm solid tire | Protection level | IP54 |
Control method | handheld remote controller | Remote control distance | 50m (Line-of-sight (LOS) range) |
Battery life | 8h (empty load) 6h (full load) | Charging method | Manual |

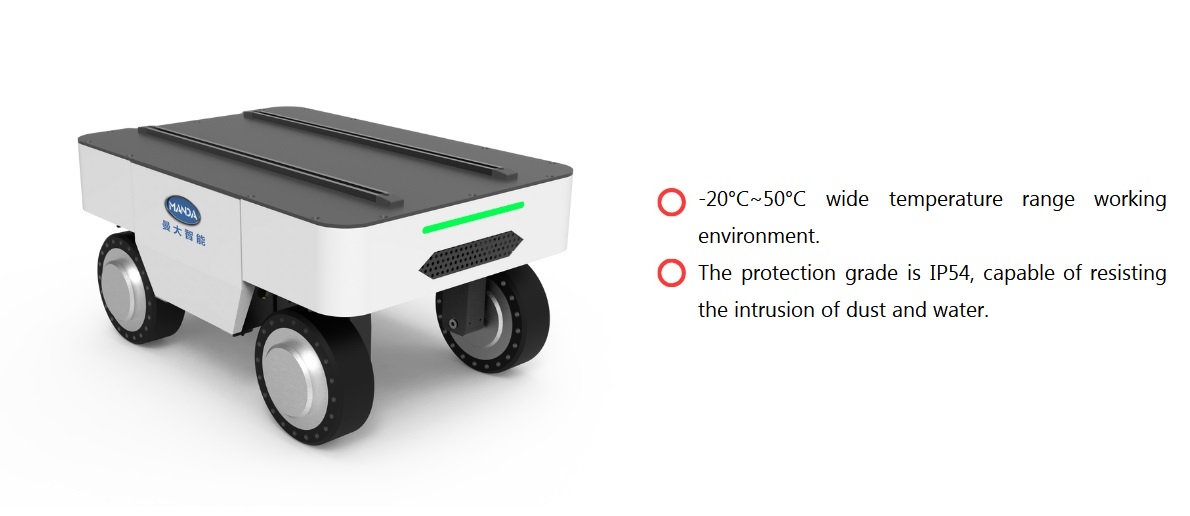

Battery parameters | DC48V 20Ah lithium iron phosphate (LFP) | Operating Temperature | -10°C~+55°C |
Braking mode | Safety Enable braking | Communication protocol | CAN |
Steering modes | Ackermann turns, turns in place, crab walking | ||
Navigation option | LiDAR navigation, Beidou navigation (providing APP and protobuf protocol) | ||
Optional features | Contact charging station, DC48V30Ah lithium iron phosphate battery | ||
Application:

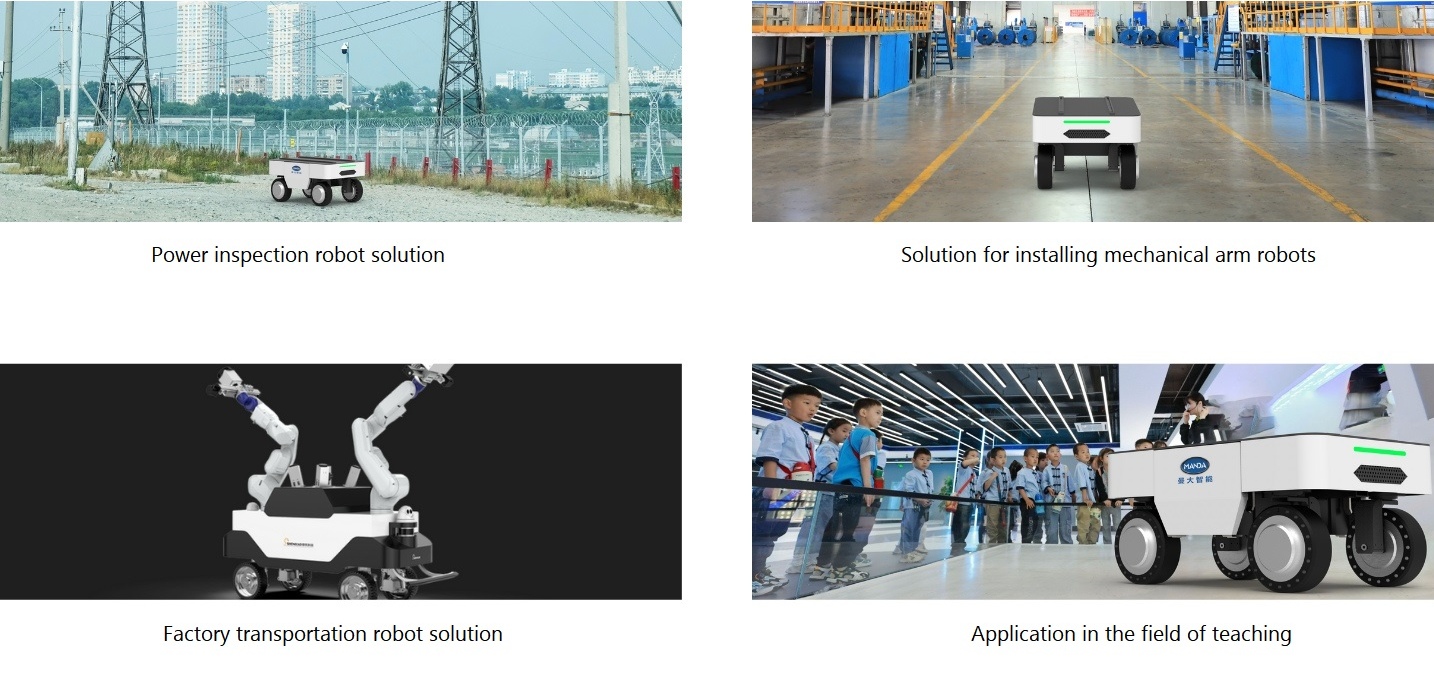

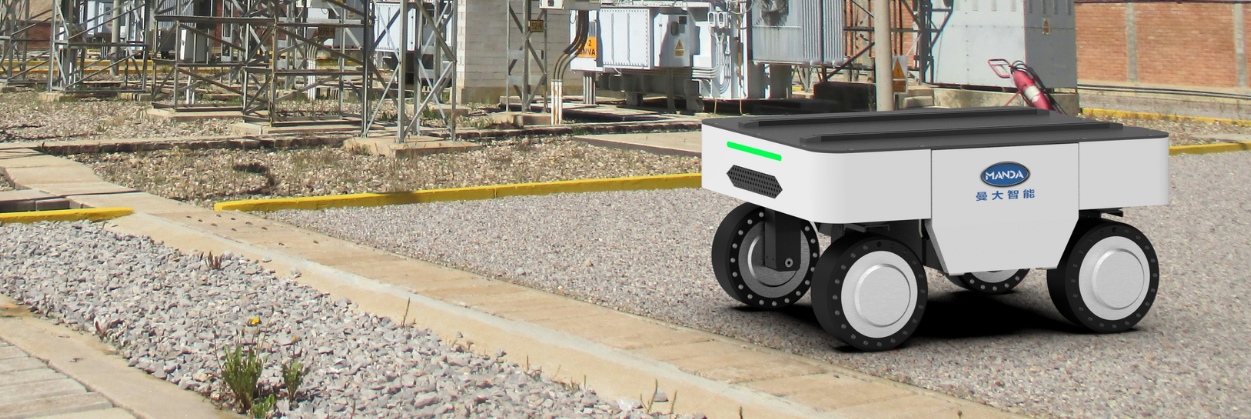

Applications include inspection robots, factory logistics, specialized robot retrofitting, and educational training.
Certificate:
To ensure the stability of product quality and meet the demands of the international market, Manda Intelligent has fully implemented the standardization of management and products. The enterprise's products have been certified by national and international authoritative institutions, and have cumulatively obtained multiple explosion-proof qualification certificates and test reports.
After-Sales Service:
Manda provide a full range of after-sales service, for customer complaints or quality problems, should give a response within 24 hours after confirmation the problems with following ways to support:
Phone Communication: After receiving the user's technical support request or fault report, technical personnel will guide the user to solve the problem by phone.
Anything in Emergency: The technical support leading group is formed to ensure once any emergency occurs, relevant technical personnel can be quickly summoned for problem solving, and emergency technical plans can be given in time.
