Tracked Robot Chassis
Boasts powerful power and high load-bearing capacity
Independent shock absorption design for easy handling of complex road conditions
Spacious internal compartment space, capable of carrying more equipment
Modular design, enabling convenient disassembly and maintenance of track modules
Built-in VCU supporting rapid secondary development
Product Description:

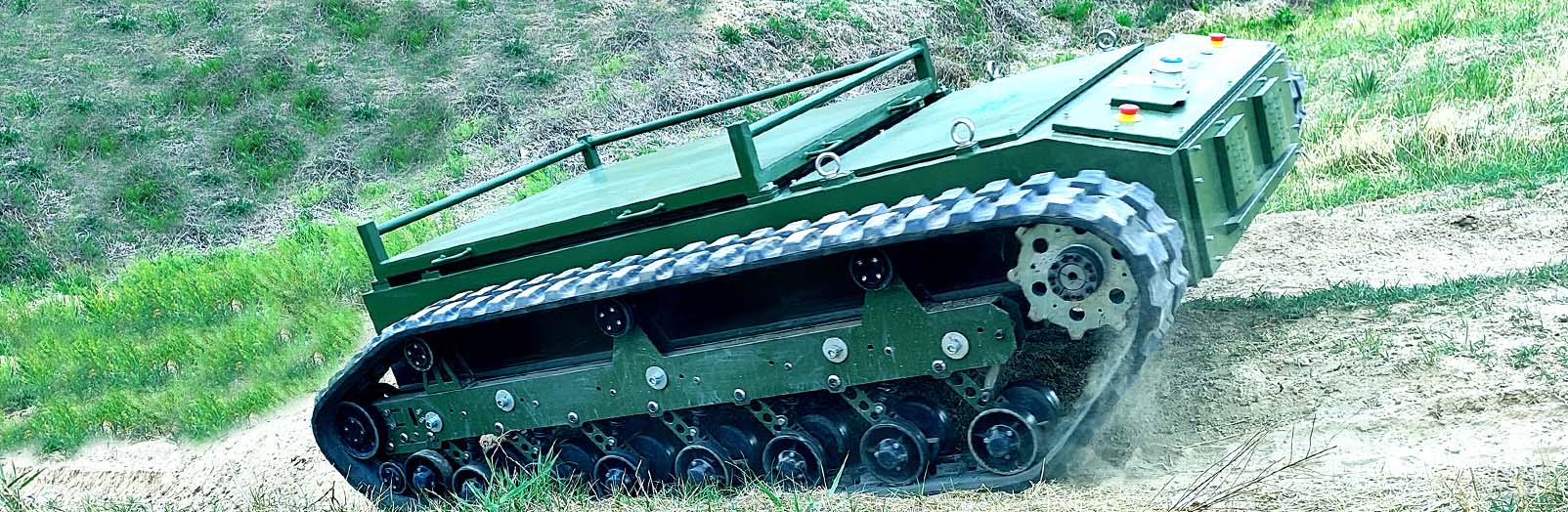

The Manda Intelligent RMP-D400 is a tracked robot chassis with outstanding off-road performance, heavy load capacity and the ability to be redeveloped. It adopts a combination of high-strength shock absorbers, dual 10kw high-power servo motors, and the casing is designed with an IP65 protection level, making it feature large load capacity, high mobility, superior waterproof performance. The robot tank chassis is equipped with a standard CAN communication VCU as standard, supporting secondary development, which helps scientific research and industrial users efficiently build mobile robot solutions suitable for complex road environments.
Parameter:
Description | Specification | Description | Specification |
Model | RDR-F700D-M1 | Steering type | 2WD differential type |
Dimensions | L2480×W1670×H710mm±50mm | Total weight | 900kg±50kg |
Operating speed | 0~12km/h | Run time | 4h |
Obstacle negotiation height | 300mm | Climbing angle | 35° |
Ground clearance | 300mm±30mm | Maximum load | 700kg |
Turning diameter | 3000mm±100mm | Suspension | The MacPherson style |
Track parameter | 56 joints in width of 250mm | Track material | Rubber |
Explosive-proof grade | None | IP Grade | IPx5 |
Operation mode | Handheld remote control | Remote control distance | 50m(clear sight distance) |
Charging time | 12h (to reach 80% battery capacity ) | Charging | Manual |
Battery parameter | DC96V lithium battery | Working temperature | -20℃~+55℃ |
Brake mode | Electromagnetic brake | Communication interface | CAN |
Navigation | It can be equipped with laser navigation, Beidou navigation. | ||
Application:

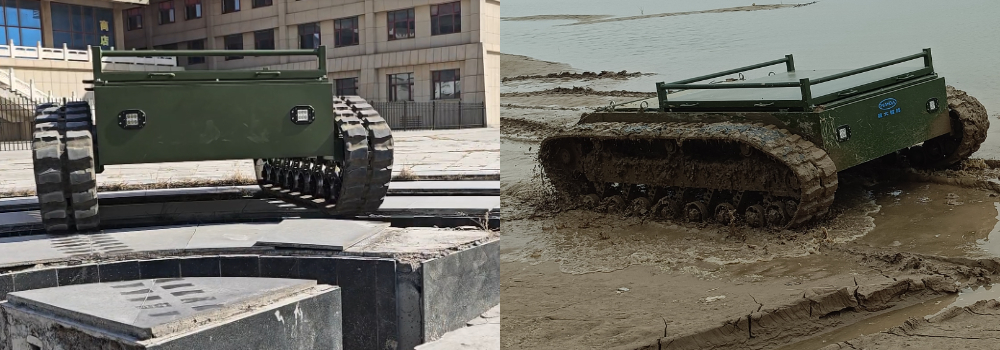

Suitable for industries such as inspection and detection, fire emergency response, material transportation, educational applications, and special vehicle modification.
Certificate:

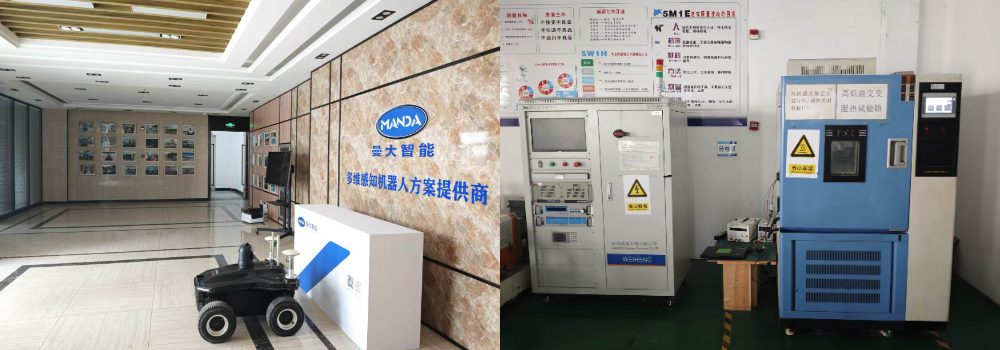

To ensure the stability of product quality and meet the demands of the international market, Manda Intelligent has fully implemented the standardization of management and products. The enterprise's products have been certified by national and international authoritative institutions, and have cumulatively obtained multiple explosion-proof qualification certificates and test reports.
After-Sales Service:
Manda provide a full range of after-sales service, for customer complaints or quality problems, should give a response within 24 hours after confirmation the problems with following ways to support:
Phone Communication: After receiving the user's technical support request or fault report, technical personnel will guide the user to solve the problem by phone.
Anything in Emergency: The technical support leading group is formed to ensure once any emergency occurs, relevant technical personnel can be quickly summoned for problem solving, and emergency technical plans can be given in time.
