Tracked Chassis
Miniaturized design, excellent pass-ability
Independent track suspension, compact structure, lower operation cost
High speed driving performance, with a maximum speed of 15 km/h
Compact structure, precise control, suitable for relatively high speed
Built-in VCU supporting rapid secondary development
Product Description:

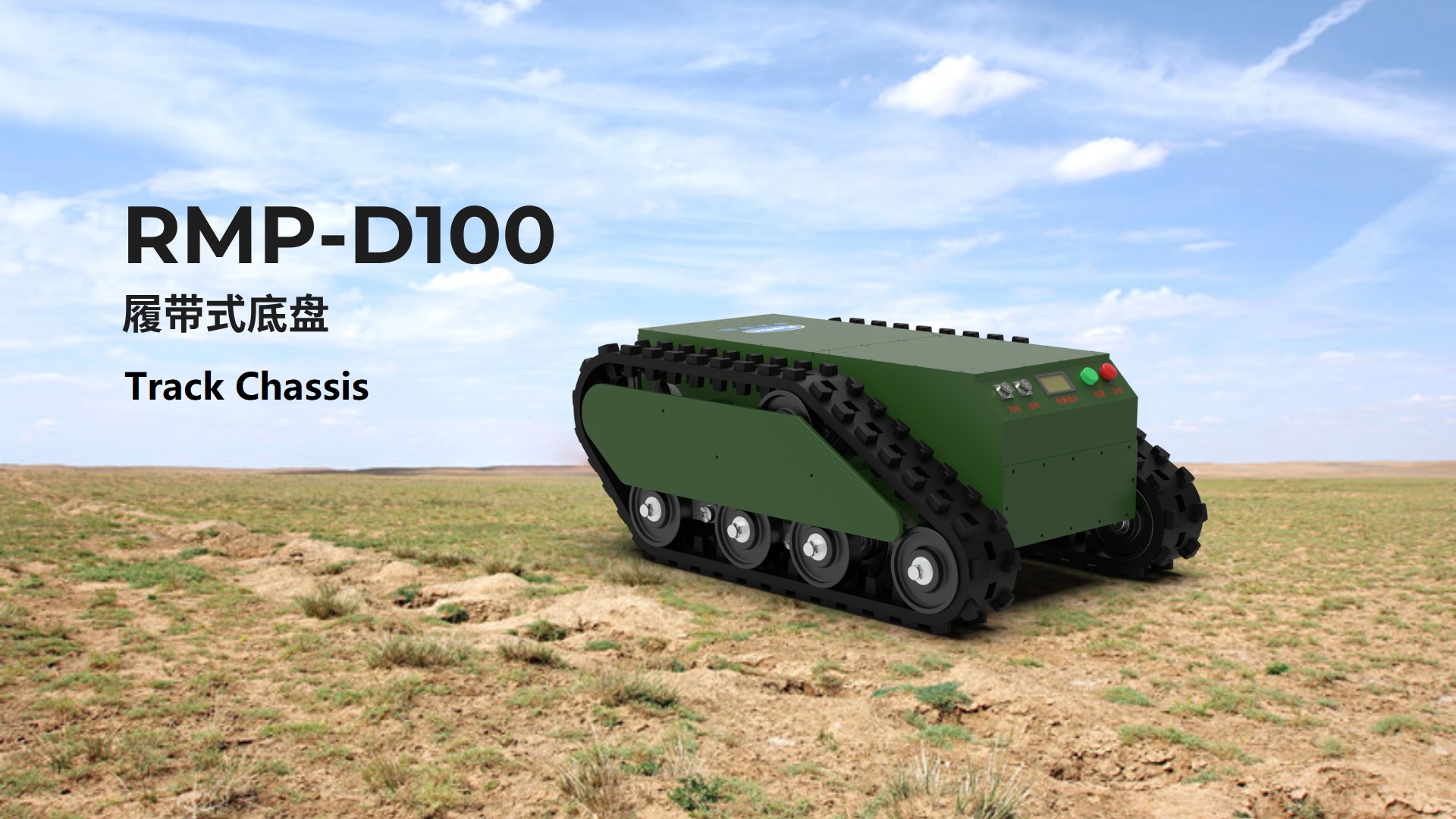

The Manda Intelligent RMP-D100 is a tracked mobile robot chassis featuring light weight and high-speed mobility. The tank chassis adopts a simple suspension structure design imitating the Mathilda style. The track structure is made of lightweight materials, and the track roller are equipped with shock-absorbing springs. The interior is fitted with high-torque servo motors, which endow it with the characteristics of light weight and high-speed movement. It can achieve a rated load of 100kg, a climbing Angle of 30°, and a maximum speed of 15km/h. It is equipped with a standard CAN communication VCU and supports secondary development, facilitating users in scientific research, industry, etc. to quickly build mobile robots suitable for complex road environments.
Parameter:
Description | Specification | Description | Specification |
Model | RDR-F100D-M3 | Steering type | 2WD differential type |
Dimensions | L1020×W710×H400mm±50mm | Total weight | 230kg±30kg |
Operating speed | 0~6km/h | Run time | 4h |

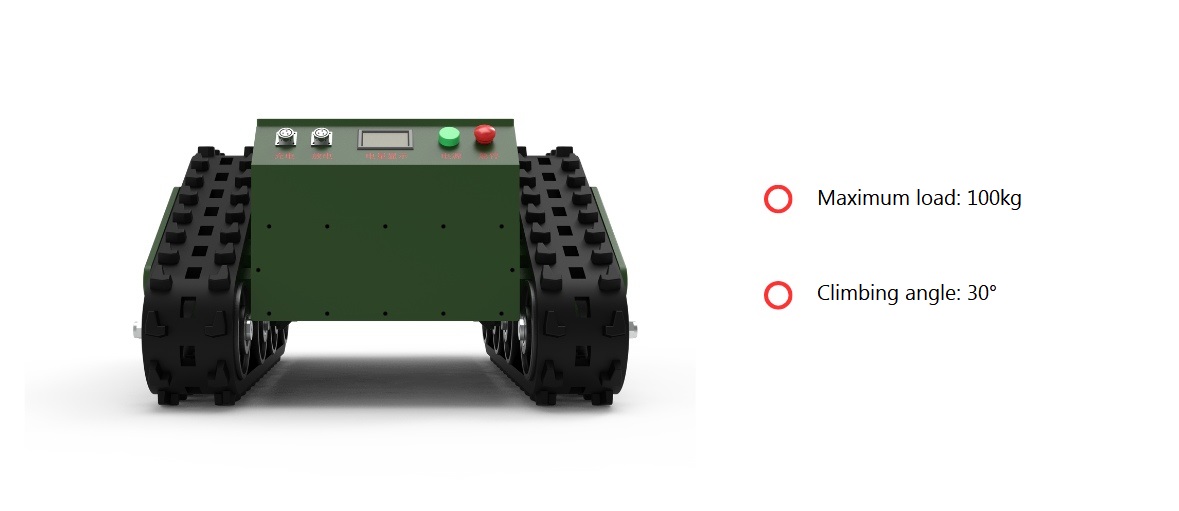

Obstacle negotiation height | ≤100mm | Climbing angle | 30° |

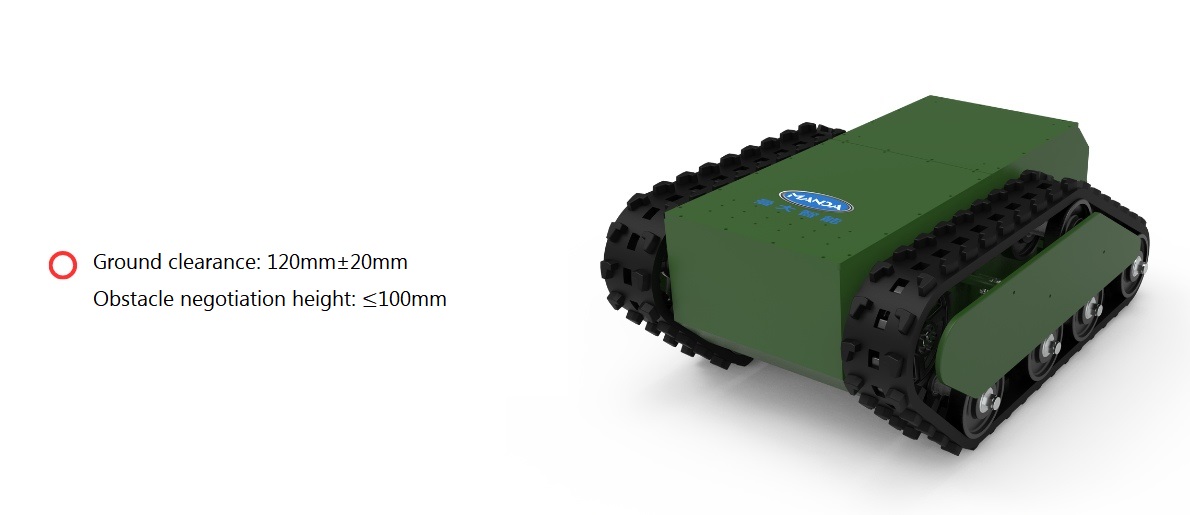

Ground clearance | 120mm±20mm | Maximum load | 100kg |
Turning diameter | 1300mm±100mm | Suspension type | The Christie style |
Track parameter | 37 links, 120mm wide | Track material | Rubber |

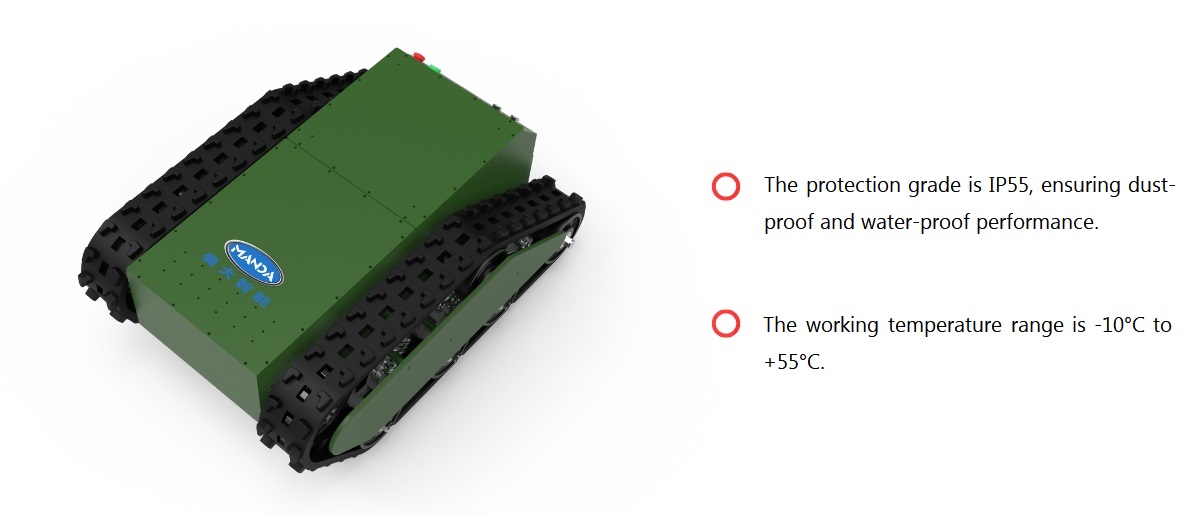

Explosive-proof grade | None | IP grade | IPx5 |
Operation mode | Handheld remote control | Remote control distance | 50m(clear sight distance) |
Charging time | 3h (to reach 80% battery capacity ) | Charging | Manual |

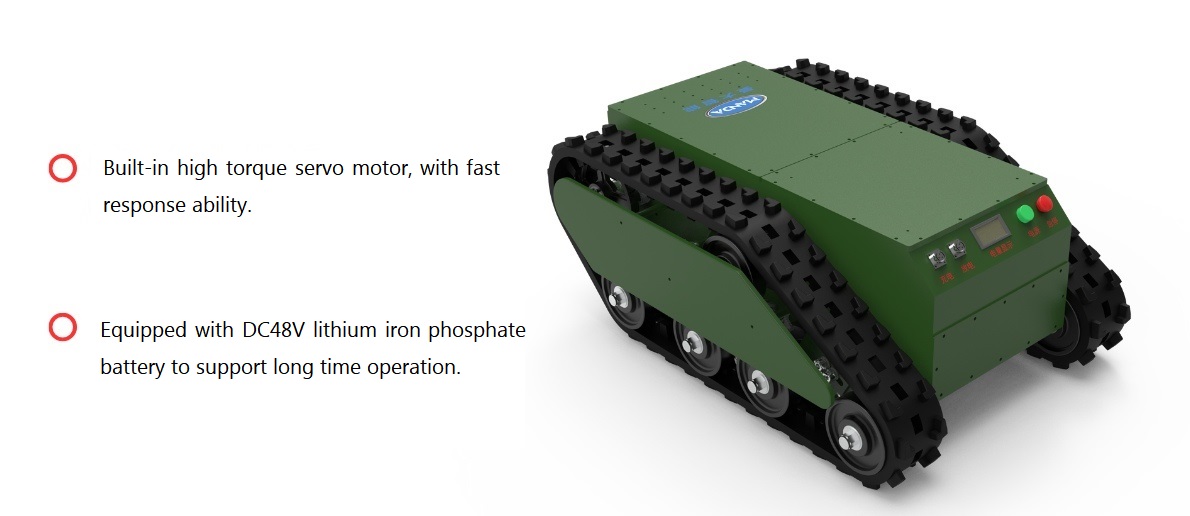

Battery parameter | DC48V lithium battery | Working temperature | -10℃~+55℃ |
Brake mode | Electromagnetic brake | Communication interface | CAN |
Navigation | It can be equipped with laser navigation, Beidou navigation. | ||

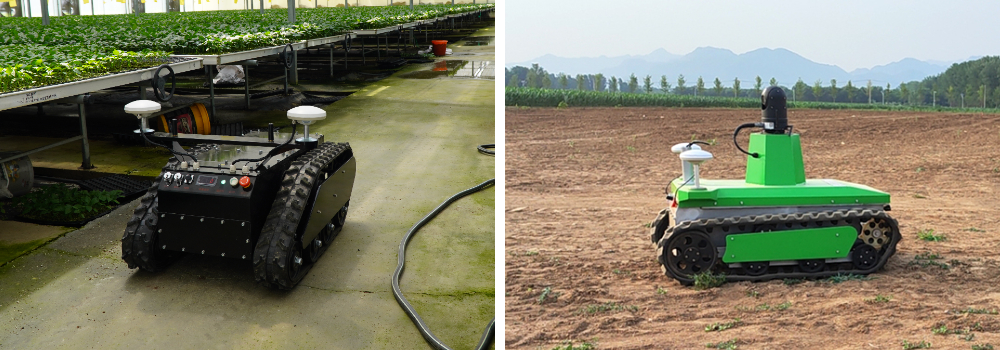

Application Fields:
The rubber track chassis is suitable for industries such as inspection and detection, fire emergency response, material transportation, teaching applications, and special vehicle modification.
Certificate:
To ensure the stability of product quality and meet the demands of the international market, Manda Intelligent has fully implemented the standardization of management and products. The enterprise's products have been certified by national and international authoritative institutions, and have cumulatively obtained multiple explosion-proof qualification certificates and test reports.
After-Sales Service:
Manda provide a full range of after-sales service, for customer complaints or quality problems, should give a response within 24 hours after confirmation the problems with following ways to support:
Phone Communication: After receiving the user's technical support request or fault report, technical personnel will guide the user to solve the problem by phone.
Anything in Emergency: The technical support leading group is formed to ensure once any emergency occurs, relevant technical personnel can be quickly summoned for problem solving, and emergency technical plans can be given in time.
