4 Wheel Drive Chassis
RMP-WL300

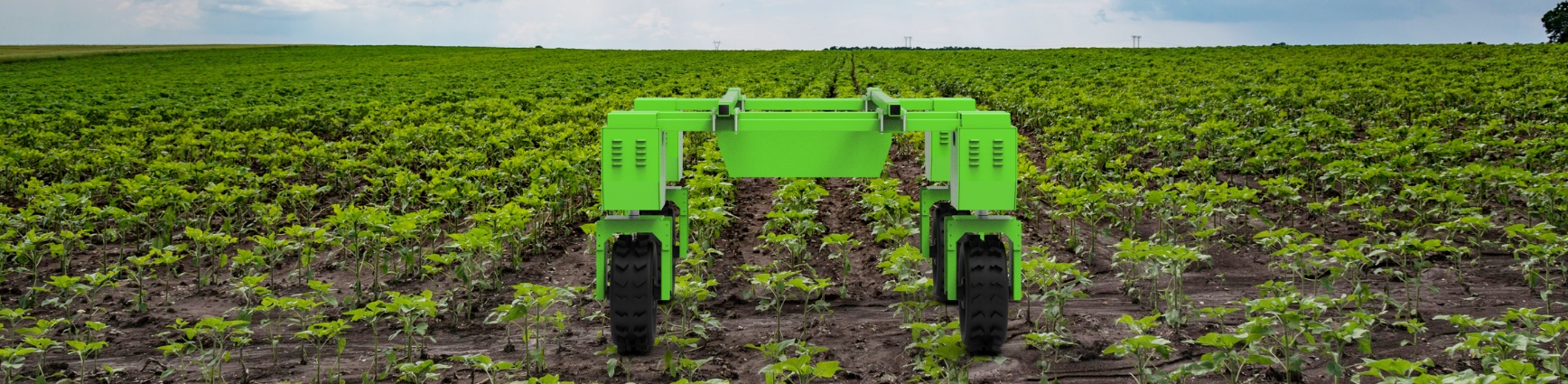

Developed for the agricultural sector, it features a four-wheel drive, four-wheel steering configuration, with adjustable wheel track and wheelbase.

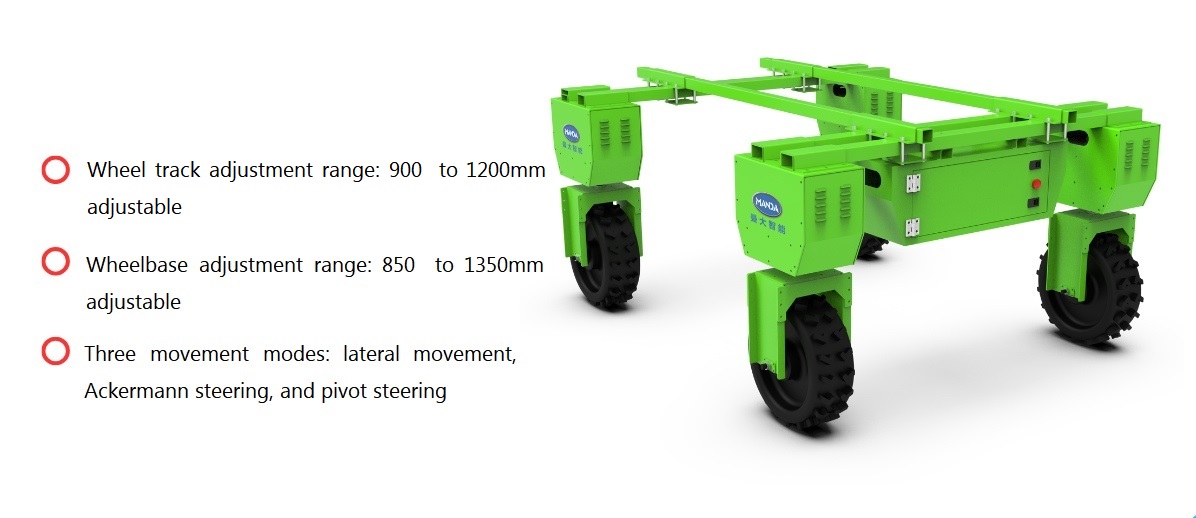

Modular mobile platform with adjustable wheel track and wheelbase to tackle non-standard ridge spacing challenges.

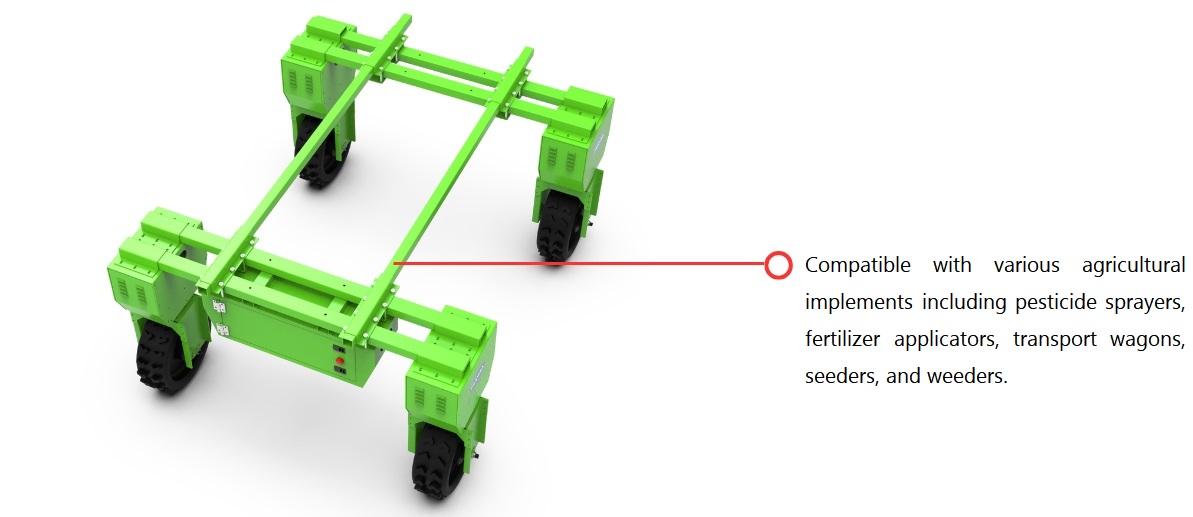

Compatible with various agricultural implements including pesticide sprayers, fertilizer applicators, transport wagons, seeders, and weeders.

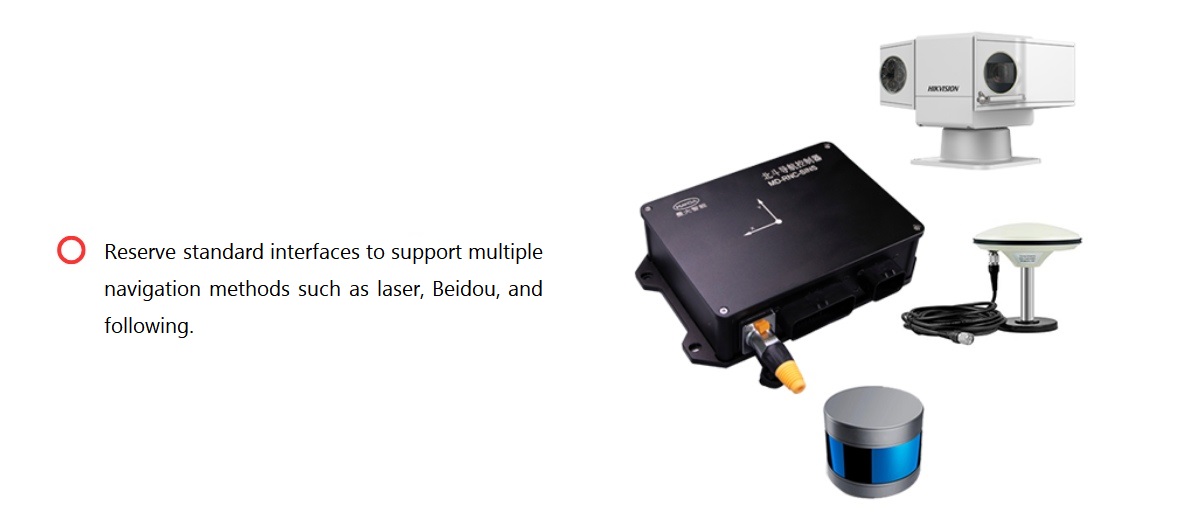

It is built with a VCU controller and provides a CAN communication protocol, which can be matched with various navigation systems such as Beidou, Laser, and Following.
Product Description:
The RMP-WL300 is a 4 wheel drive chassis specially developed for the agricultural field. It features a four-wheel four-steering walking form and has the function of adjustable track and wheelbase. It is a modular mobile platform specially designed for modern agricultural machinery. It addresses the core pain points of non-standard row spacing and diverse farm tools by designing an adjustable track and wheelbase structure. The upper structure can be equipped with various agricultural tools such as sprayers, fertilizer applicators, transport vehicle compartments, seeders and weeding machines. The all terrain robot chassis can adapt to various farmland operation environments and crop planting patterns. It is also equipped with a built-in VCU controller, providing CAN communication protocol, which can be matched with various navigation methods such as Beidou, laser, and following, achieving unmanned driving functions and providing convenience for users' secondary development.
Parameters:
Description | Specification | Description | Specification |
Overall dimensions | L1900*W1450*H965mm | Curb weight | 320Kg |
Operation speed | 0-6km/h | Climbing angle | 15° |
Obstacle negotiation Height | 150mm | Ground clearance | 870mm±30mm |
Wheel track | 850-1350mm Adjustable | Wheelbase parameters | 900-1200mm Adjustable |
Turning diameter | 2400mm±100mm | Communication protocol | CAN |
Suspension type | None | Protection level | IP54 |
Tire specifications | 20” / 510mm Diameter Agricultural Tire | Control type | Handheld Remote Control /APP |
Remote control Range | 50m (Line-of-Sight Distance) | Battery life | 6h (empty load) 4h (full load) |
Charging method | Manual | Battery specifications | 48V DC 30Ah LiFePO4 |
Operating temperature | 0℃-+55℃ | Brake type | Safety Brake Enable |
Turning form | Ackermann steering, zero-radius turning, and lateral movement. | ||
Navigation system | Beidou Navigation (providing APP and protobuf protocol) | ||
Optional features | Anti collision edge touching, control screen, agricultural machinery lifting suspension, handheld point setter | ||
Dimension Drawing(mm):
Dimensional Diagram
Track Width and Wheelbase Dimensional Diagram
(The images shown are for reference only. The actual product shall prevail.)

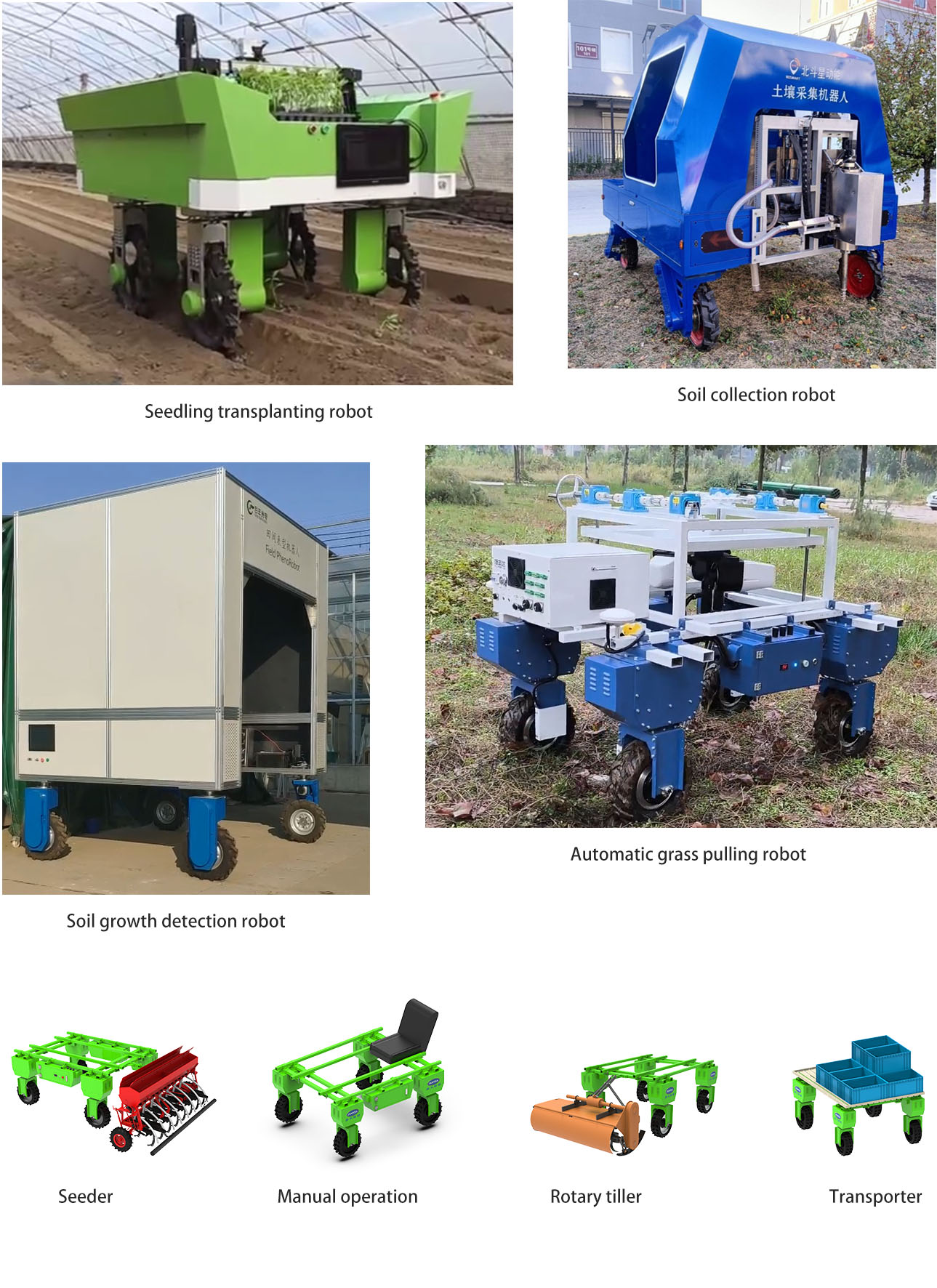

Application:

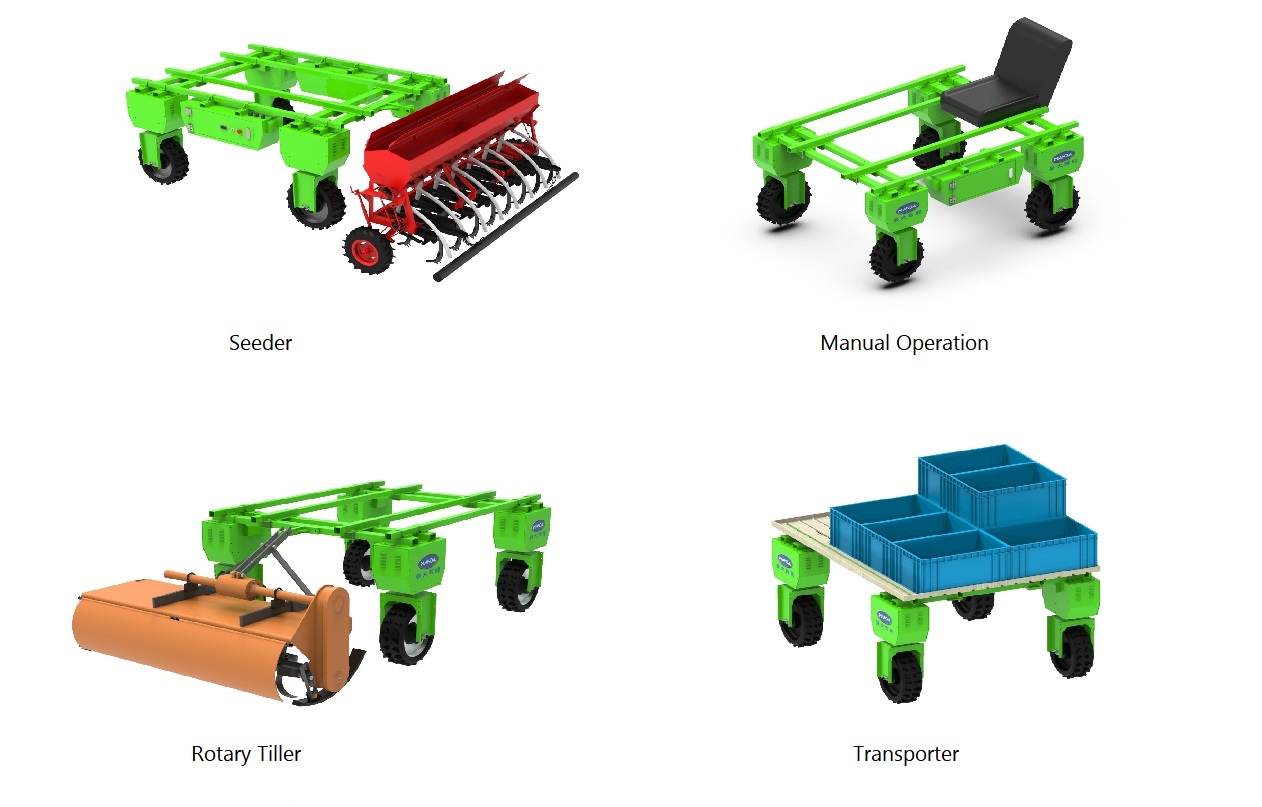

4 wheel drive chassis RMP-WL300 built-in VCU controller, providing CAN communication protocol. Supports rapid secondary development and functional expansion, and can be adapted to various agricultural robots such as seedling transplantation, soil collection, growth detection, and automatic grass pulling. Meanwhile, the outdoor robot platform has good compatibility and supports the installation of agricultural equipment such as rotary tillage vehicles, transport vehicles, and seeders.
Certificate:
To ensure the stability of product quality and meet the demands of the international market, Manda Intelligent has fully implemented the standardization of management and products. The enterprise's products have been certified by national and international authoritative institutions, and have cumulatively obtained multiple explosion-proof qualification certificates and test reports.

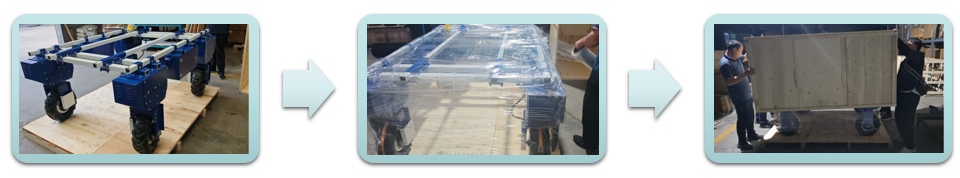

Packaging and Shipping:
To ensure the integrity of your products, the wheeled chassis are packed in sturdy wooden case. Before shipment, professionals fix the wheel body to ensure transportation safety. The wooden case mainly contains the robot body, remote controller, toolkit and charger.
