Four Wheel Chassis
RMP-BL100
Explosion-proof body structure design, suitable for class II explosion-proof areas
Sufficient reserved space for external equipment installation, enabling simpler layout design
360° precise control with flexible maneuverability
High-perference environmental adaptability, with low-tempeture resistance down to -40℃

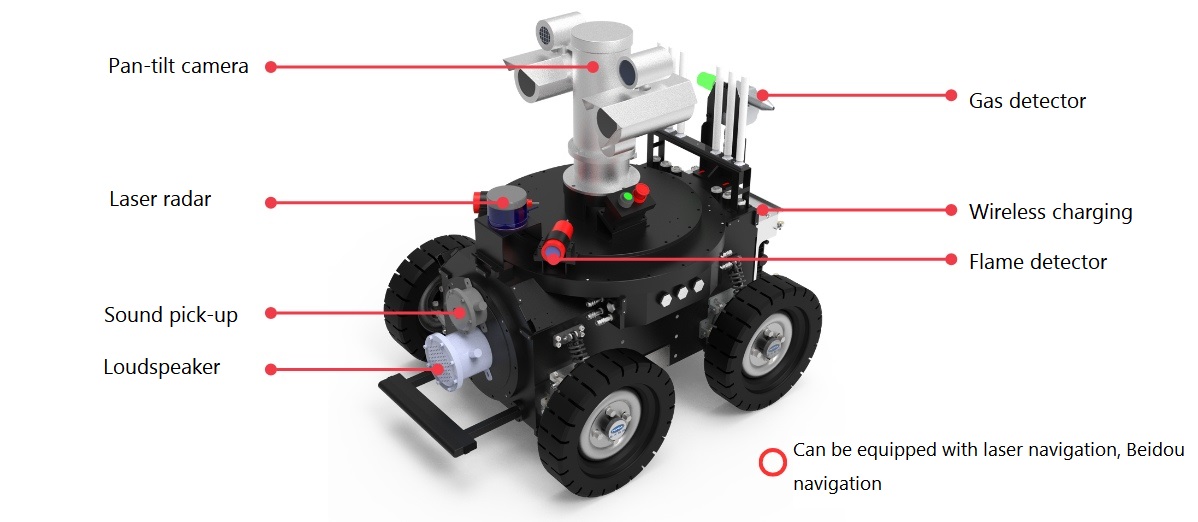

Can be equipped with Beidou, laser, and other navigation systems

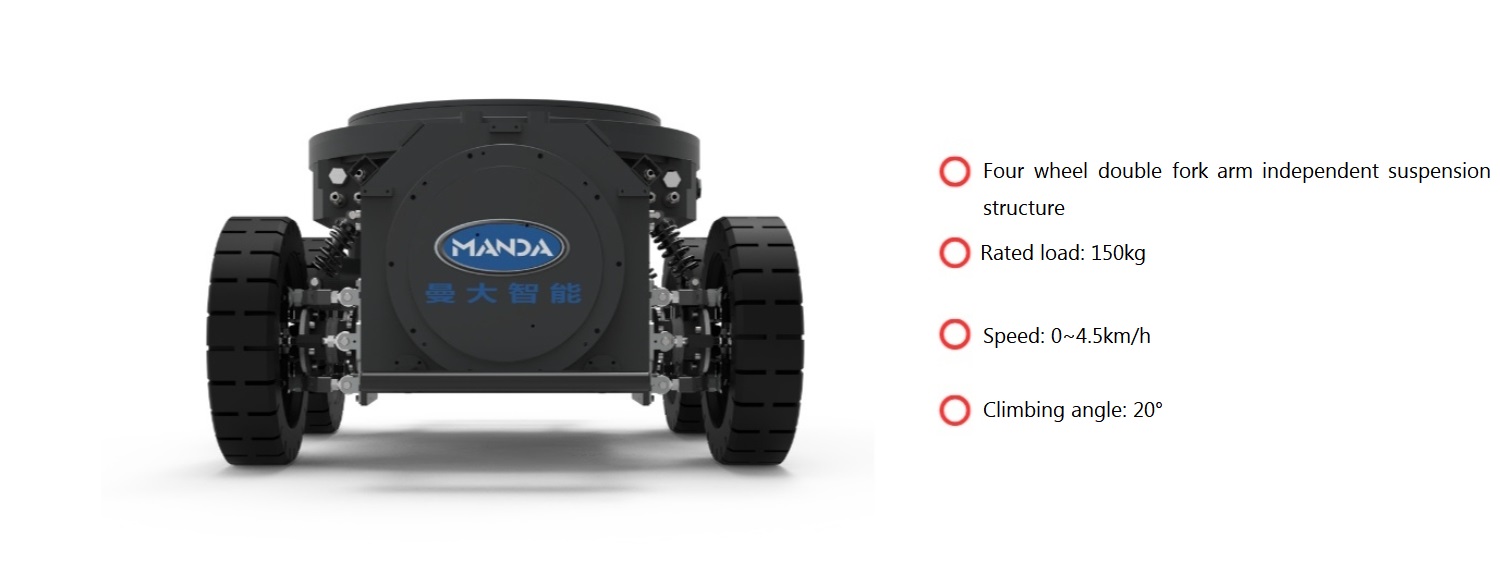

Four wheel double fork arm independent suspension structure, superior shock absorption performance
Built-in VCU supporting rapid secondary development
Product Description:
The Manda Intelligent RMP-BL100 is a mobile robot chassis that has obtained dual explosion-proof certificates for IIC dust and hazardous chemicals. It is suitable for explosion-proof environments with flammable gases such as grain silos, metal dust explosion-proof areas, petrochemicals, and natural gas storage and transportation. The power of the 4 wheel robot chassis is driven by four independent servo motors and planetary reducers, with a maximum load capacity of 100kg and a climbing Angle of 20°. The steering mode is differential operation. The entire structure is made of corrosion-resistant aluminum alloy material, featuring light weight, corrosion resistance and a rich variety of interfaces. The robot chassis is equipped with a standard CAN communication VCU, facilitating users' secondary development.
Parameters:
Description | Specification | Description | Specification |
Model | RDR-Z150BL-M3 | Steering type | Four-wheel differential |
Dimensions | L1250×W900×H620mm±50mm | Total weight | 430kg±30kg |
Speed | 0~4.5km/h | Run time | 5.5h |
Obstacle negotiation height | ≤100mm | Climbing angle | 20° |
Ground clearance | 100mm±20mm | Rated load | 150kg |
Turning diameter | 1400mm±100mm | Suspension | The two forks are suspended independently |
Tyre | Diameter 400 x width 100mm solid tire | Obstacle avoidance form | Ultrasonic,anti-collision strip, laser (optional) |

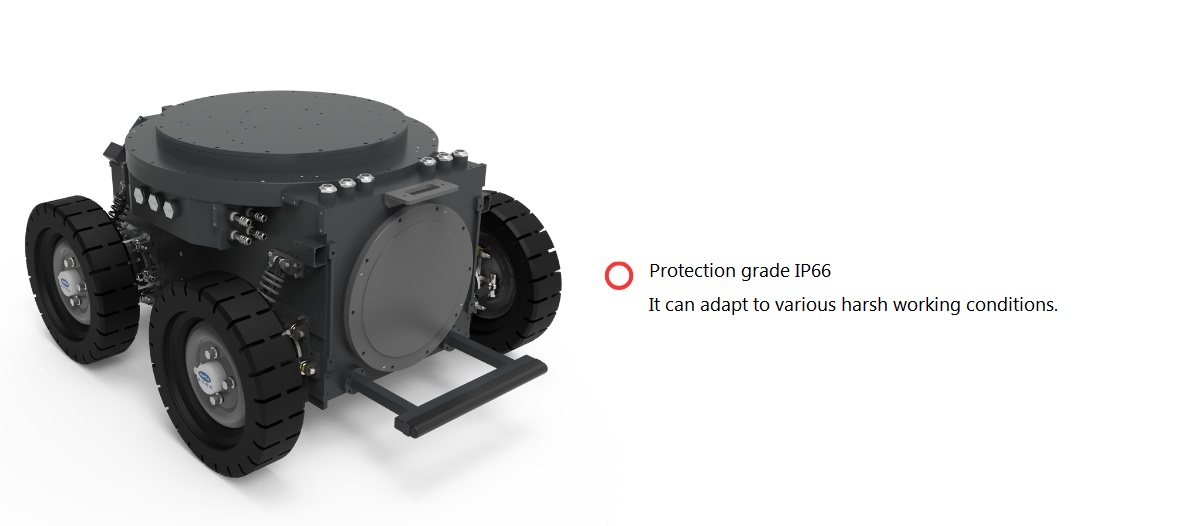

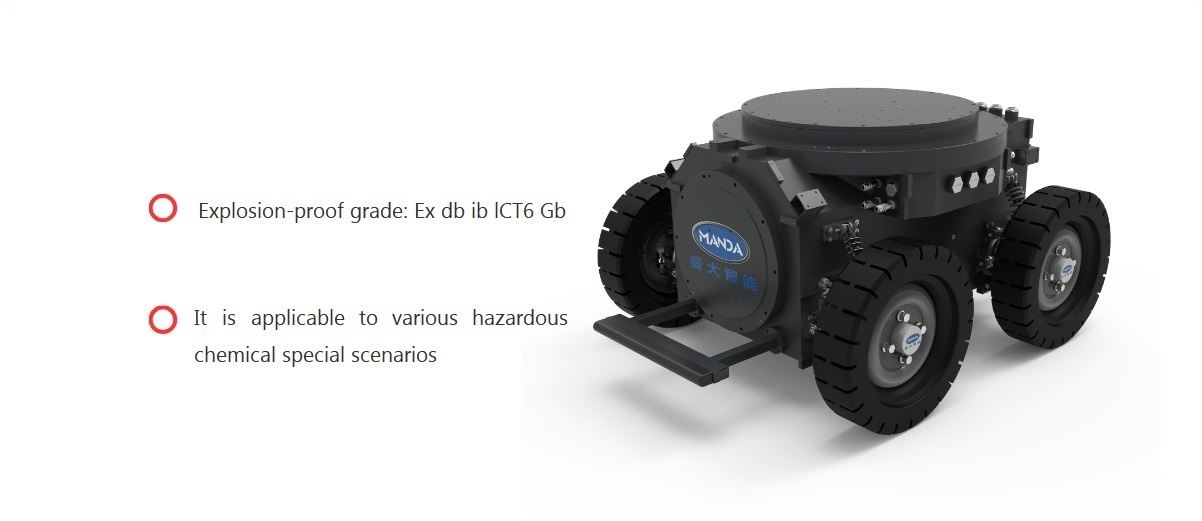

Explosive-proof grade | Ex db ib IIC T6 Gb | IP grade | IP66 |
Operation | Hand held remote control | Remote control distance | 50m(clear sight distance) |
Charging time | 4h(Can reach 80% battery capacity) | Charge | Manual/wireless charging |
Battery parameter | DC48V lithium iron phosphate battery | Working temperature | -20℃~+55℃ |
Brake mode | Electromagnetic brake | Communication interface | CAN |
Charge Pile | Wireless charging pile (optional) | ||
Navigation | Can be equipped with laser navigation, Beidou navigation | ||
Application:

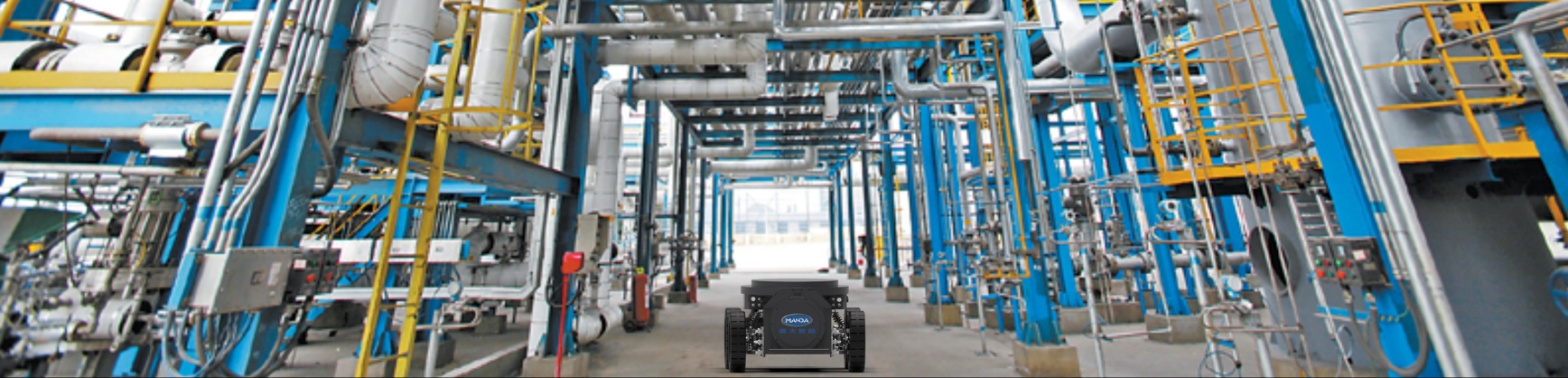

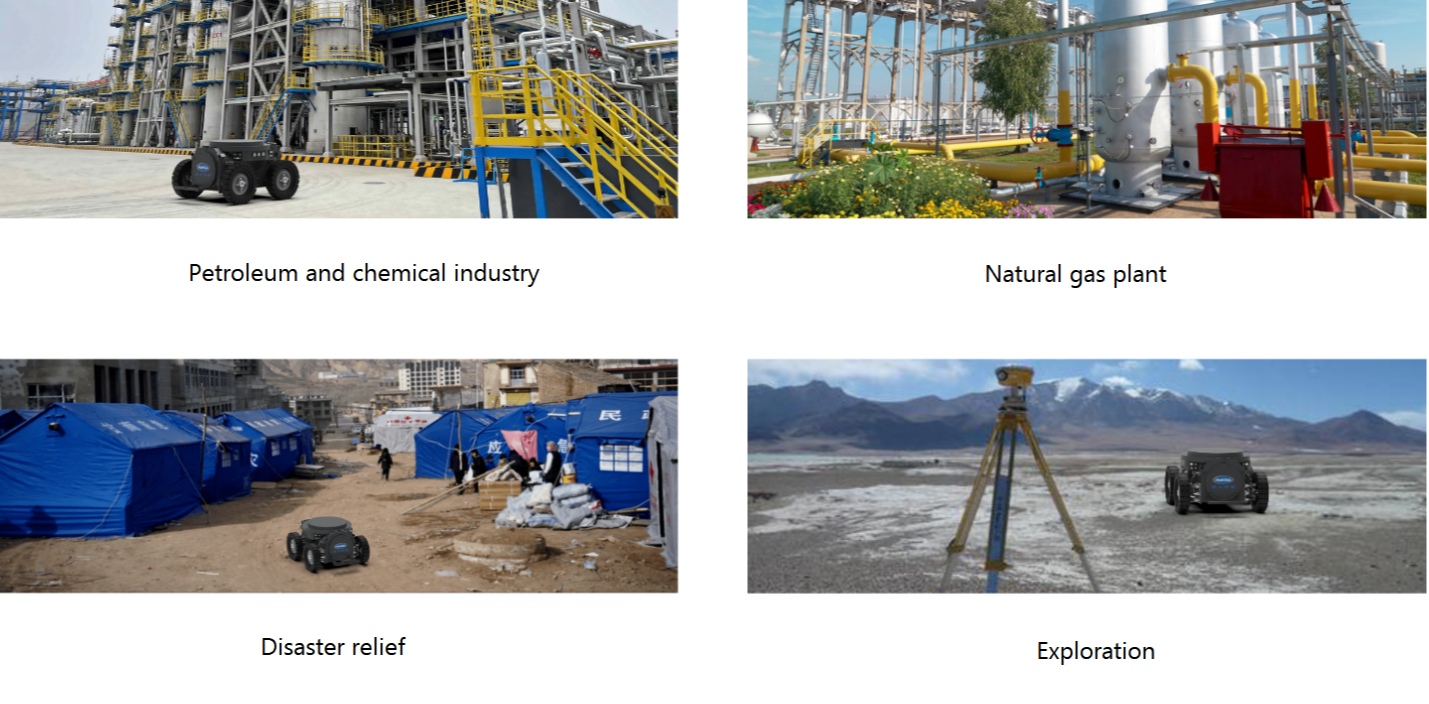

Suitable for operation fields with explosion-proof requirements such as inspection, fire fighting, disaster rescue, and exploration.
Certificate:
To ensure the stability of product quality and meet the demands of the international market, Manda Intelligent has fully implemented the standardization of management and products. The enterprise's products have been certified by national and international authoritative institutions, and have cumulatively obtained multiple explosion-proof qualification certificates and test reports.
Advanced Equipment&Workshop:
In development, the usage of mainstream simulation software can prevent risks in advance. A complete product quality control system have been established for problems source tracing, closed loop improving and PDCA cycle. The main test equipment includes aging test room, high and low temperature experimental equipment, motion simulation equipment, etc., to ensure stability and reliability of product.
