Steering Motor
Rated Voltage: DC 12V/24V
Power Supply Range: DC 9V-36V
Rated Power: 50W
Rated Current: 10A
Rated Speed: 100RPM
Pure servo design, with control accuracy up to 0.1 degree.
Integrated design, simple installation and easy maintenance.
It meets the usage requirements in harsh working environments such as agriculture and mining areas.
The high-torque design meets the requirements of deep ploughing in agriculture, paddy fields, and operations in highly viscous soil.
Product Introduction:
The Unmanned Driving Auto Steering Motor precisely drives the steering wheel or steering wheels by receiving the steering instructions from the control system, achieving unmanned steering control. It can be used for unmanned agricultural machinery, road administration engineering vehicles, trucks, mine cars, scenic area tour vehicles, agricultural sowing operations (corn and soybeans), etc.
Product Parameters:
Model | KY173DD01005-08-HC |
Rated Voltage | DC 12V/24V |
Power Supply Range | DC 9V-36V |
Rated Power | 50W |
Rated Current | 10A |
Rated Speed | 100RPM |
Instantaneous Max.Current | 20A |
Working Mode | Speed Mode, Position Mode |
Under voltage protection | 7V（adjustable） |
Over voltage protection | 32V（adjustable） |
Control Method | RS232/CAN/CANopen |
Feedback Part | Linear encoder |
Operating Temp. | -25-+55℃ |
Storage Temp. | -35-+65℃ |
Protection Grade | IP55 |
Cooling Method | Natural Cooling |
Weight | ≤5kg |
Main Functions:
1. Working modes: Speed mode, position mode
2. Feedback element: Linear encoder
3. Control ports: RS232, CAN
4. The motor speed control and data reading are achieved through RS232 and CAN
5. Internal temperature monitoring and protection of the driver
6. Overcurrent and overload protection
7. Overvoltage and undervoltage protection
8. Locked rotor and flywheel protection
9. Motor short-circuit protection
Drawing:

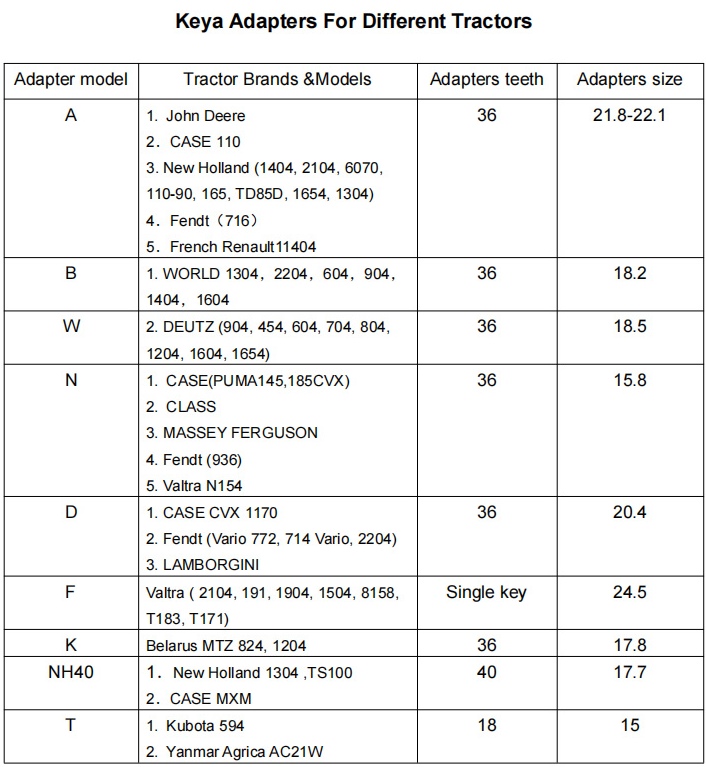

Adapters For Different Tractors | |||
Adapter model | Tractor Brands &Models | Adapters teeth | Adapters size |
A | 1. John Deere 2. CASE 110 3.New Holland (1404, 2104, 6070, 110-90, 165, TD85D, 1654, 1304) 4. Fendt(716) 5. French Renault11404 | 36 | 21.8-22.1 |
B | 1.WORLD 1304，2204，604，904, 1404，1604 | 36 | 18.2 |
W | 2. DEUTZ (904,454,604,704,804 1204，1604,1654) | 36 | 18.5 |
N | 1. CASE(PUMA145,185CVX) 2. CLASS 3. MASSEY FERGUSON 4. Fendt (936) 5. Valtra N154 | 36 | 15.8 |
D | 1. CASE CVX 1170 2. Fendt (Vario 772, 714 Vario, 2204) 3. LAMBORGINI | 36 | 20.4 |
F | Valtra(2104,191,1904,1504,8158 T183,T171) | Single key | 24.5 |
K | Belarus MTZ 824, 1204 | 36 | 17.8 |
NH40 | 1. New Holland 1304, TS100 2. CASE MXM | 40 | 17.7 |
T | 1. Kubota 594 2. Yanmar Agrica AC21W | 18 | 15 |
Application Areas:
Auto steering motor play a crucial role in the fields of precision agricultural machinery and unmanned driving. In agricultural automation applications, servos achieve intelligent adjustment of the steering system of agricultural machinery through precise Angle control, thereby enhancing operational efficiency. Meanwhile, in the steering wheel drive of unmanned agricultural machinery, the motor works in coordination with GNSS satellite navigation, Front wheel sensor, Tablet, etc., guiding the agricultural machinery to travel along the prescribed route.

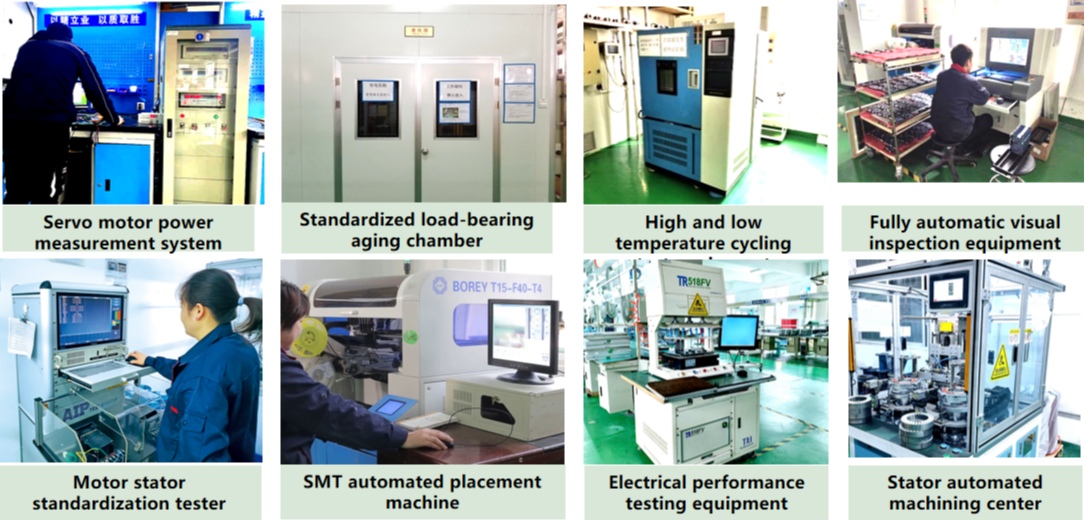

Advanced Equipment&Workshop:
Why Choose Us:
1. Centering on customer needs, we provide full-cycle service guarantees.
2. By obtaining ISO9001 certification, we ensure the reliability of our products through standardized processes and transform our technological advantages into your competitive edge.
