Unmanned Driving Auto Steering Motor
Rated Voltage: 12VDC/24VDC
Control Signals: RS232/CAN
Servo design, high control accuracy, accuracy can reach 0.1 degree.
Integrated design, easy installation and maintenance.
It is used for unmanned agricultural machinery, road engineering vehicles,low-speed unmanned vehicles, etc.
Customization supported.
Product Description

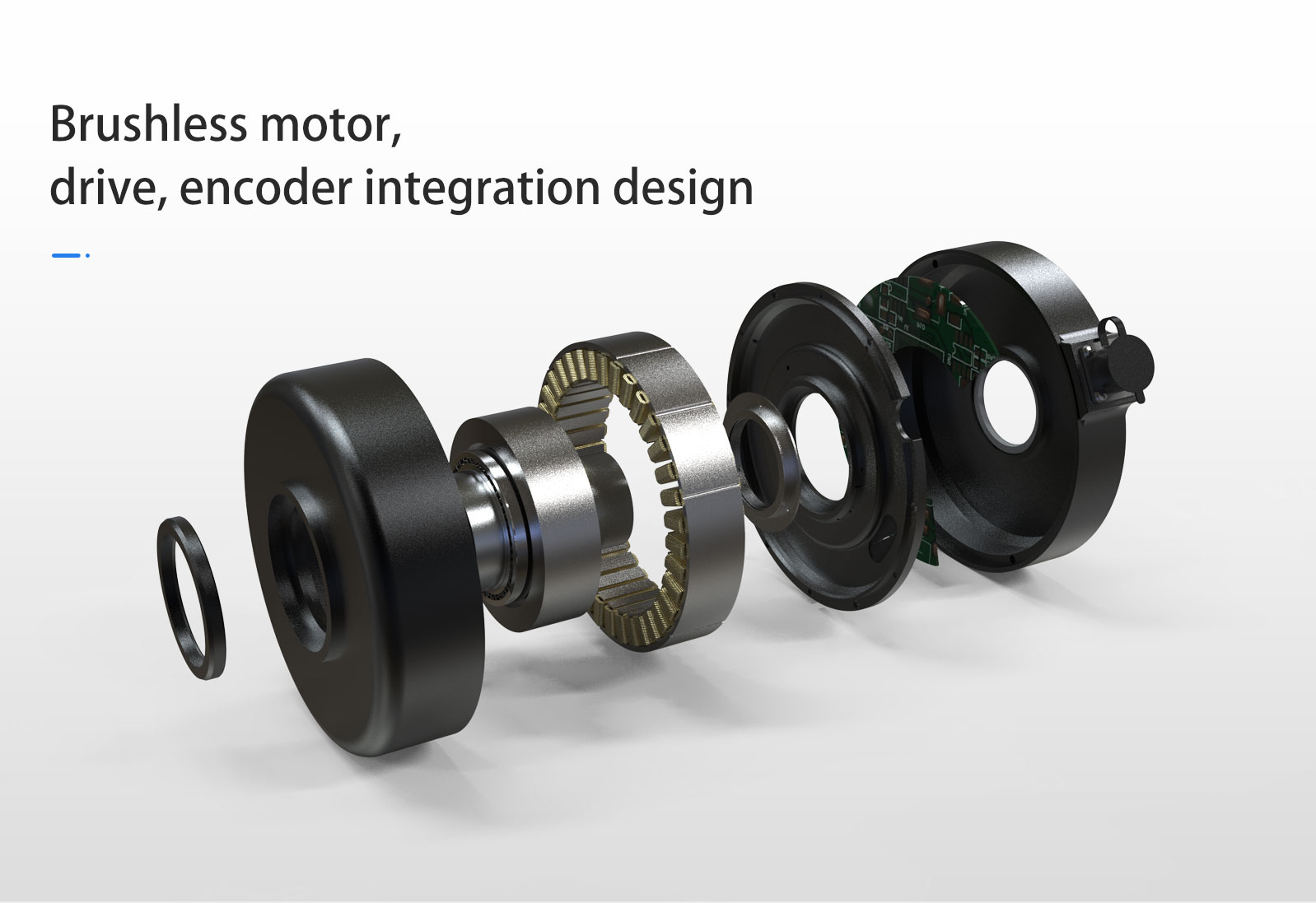

The unmanned driving auto steering motor adopts a pure servo design, with a control Angle accuracy of 0.1 degrees. It features a large torque output and can adapt to harsh working environments. It adopts a hollow shaft interface design, which is convenient for quick connection and installation with agricultural machinery steering wheels. Motor and driver integrated design, compact structure, small size. The automatic steering motor is equipped with built-in temperature monitoring and multiple protection functions, including overcurrent, overload, overvoltage, undervoltage, and motor short circuit protection, etc., comprehensively ensuring stable and reliable operation.
Product Parameters
Model | KY173DD01005-08-HC |
Rated Voltage | DC 12V/24V |
Power Supply Range | DC 9-36V |
Rated Power | 50W |
Rated Current | 10A |
Rated Speed | 100RPM |
Instantaneous Max.Current | 20A |
Working Mode | Speed Mode, Position Mode |
Under Voltage Protection | 7V（Can set） |
Over Voltage Protection | 32V（Can set） |
Control Method | RS232/CAN/CANopen |
Feedback Part | Incremental encoder |
Operating Temp. | -25-+55℃ |
Storage Temp. | -35-+65℃ |
Protection Grade | IP55 |
Cooling Method | Natural Cooling |
Weight | ≤5kg |
Key Technologies and Innovations
1. Low moment of inertia, fast dynamic response;
2. The rotor permanent magnet multipole pair has a small torque fluctuation coefficient (≤3%);
3. Small size (∅180*85 including controller);
4. The hollow shaft interface facilitates quick connection and installation with the steering wheel of agricultural machinery;

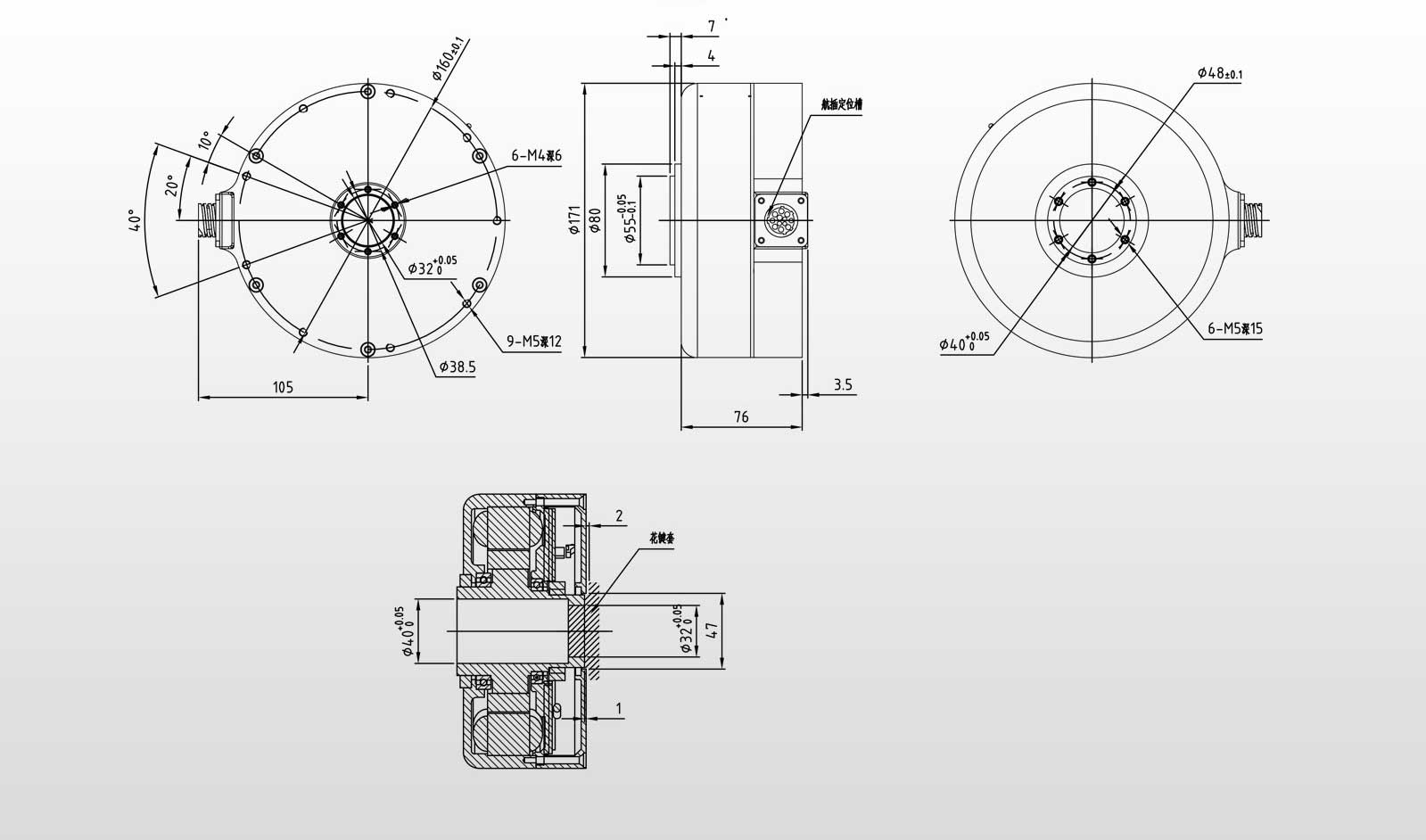

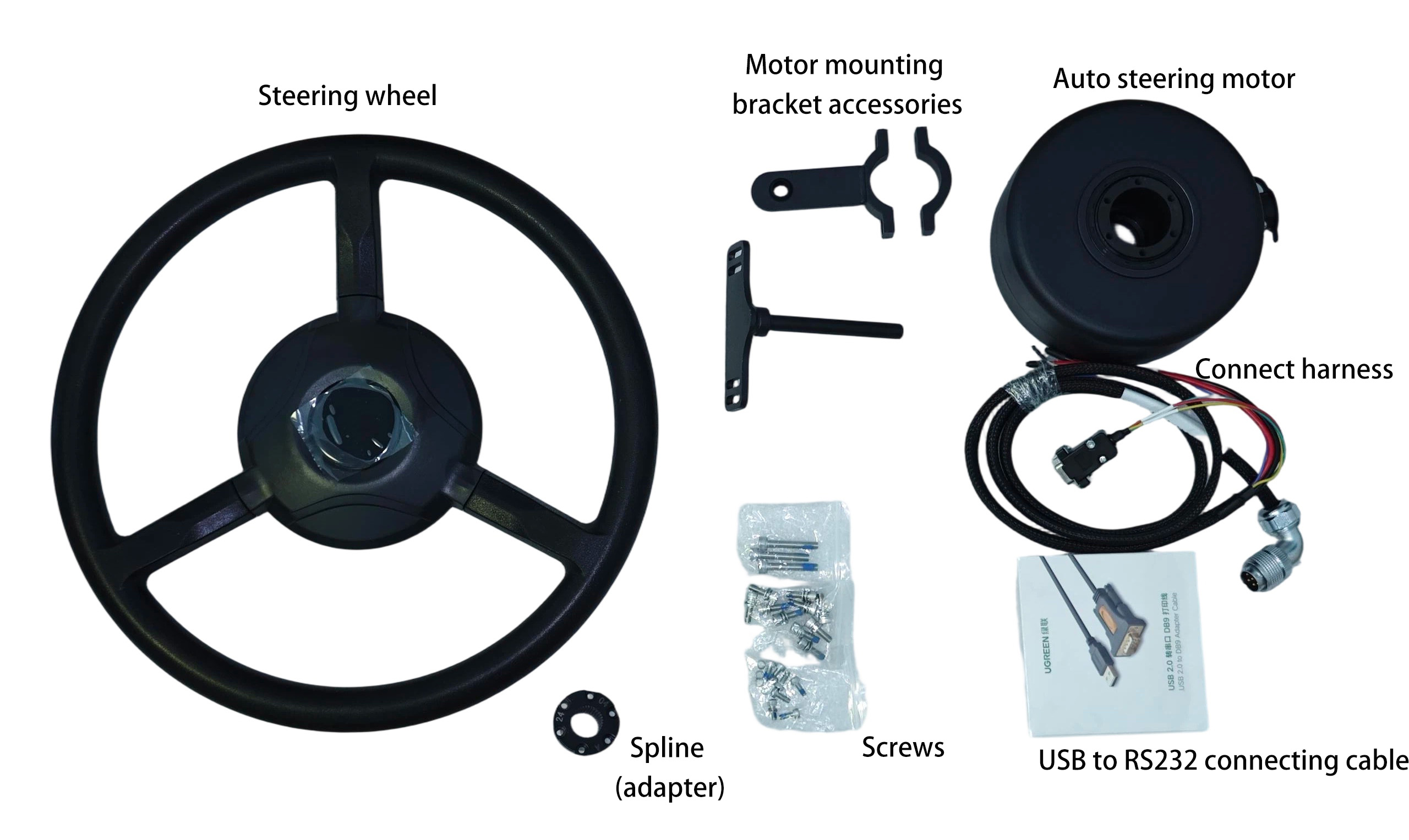

Product Drawing
Adapters For Different Tractors
Adapters For Different Tractors | |||
Adapter model | Tractor Brands &Models | Adapters teeth | Adapters size |
A | 1. John Deere 2. CASE 110 3.New Holland (1404, 2104, 6070, 110-90, 165, TD85D, 1654, 1304) 4. Fendt(716) 5. French Renault11404 | 36 | 21.8-22.1 |
B | 1.WORLD 1304，2204，604，904, 1404，1604 | 36 | 18.2 |
W | 2. DEUTZ (904,454,604,704,804 1204，1604,1654) | 36 | 18.5 |
N | 1. CASE(PUMA145,185CVX) 2. CLASS 3. MASSEY FERGUSON 4. Fendt (936) 5. Valtra N154 | 36 | 15.8 |
D | 1. CASE CVX 1170 2. Fendt (Vario 772, 714 Vario, 2204) 3. LAMBORGINI | 36 | 20.4 |
F | Valtra(2104,191,1904,1504,8158 T183,T171) | Single key | 24.5 |
K | Belarus MTZ 824, 1204 | 36 | 17.8 |
NH40 | 1. New Holland 1304, TS100 2. CASE MXM | 40 | 17.7 |
T | 1. Kubota 594 2. Yanmar Agrica AC21W | 18 | 15 |
Working Modes
Working mode | Control signal | Feedback part |
Speed mode | CAN | Linear encode |
Position mode | CAN | Linear encode |
Technical Parameters
Parameters | Label | Parameter value | Unit |
Limit power voltage | U | 7-37 | VDC |
Max continuous current | Ic | 10 | A |
Max peak current | Imax | 17 | A |
PWM switching frequency | fPWM | 8 | kHz |
Output encoder power supply | +5Vout | 5 | VDC |
ICC | 100 | mA | |
Under voltage protection | Vu | 7 (adjustable)
| V |
Over voltage protection | Vo | 37 (adjustable)
| V |
Operating temperature | Industrial grade (standard product) | -25 ~ +55 | ℃ |
Low temp. grade | -40 ~ +65 | ||
Storage temperature | Industrial grade (standard product) | -35 ~ +65 | ℃ |
Low temp. grade | -55 ~ +85 |
Application Areas
The 12V automatic steering motor is mainly applied in precision agriculture and autonomous driving steering wheel drive, such as autonomous driving tractors, road rollers, ships, and sweepers. The parameters of the steering motor can be customized, providing highly precise steering drive solutions for the intelligent upgrades in various industries.
Advanced Equipment&Workshop
The company has a complete product quality control system and has passed the ISO9001 international quality system certification. The process quality control of products before delivery implements "four controls", namely first item control, inspection control, final inspection control, and finished product inspection control before shipping. After strict inspection in the testing process, the "8D" model is adopted for the discovered problems, tracing the root causes of the problems, and improving the closed loop and PDCA cycle.

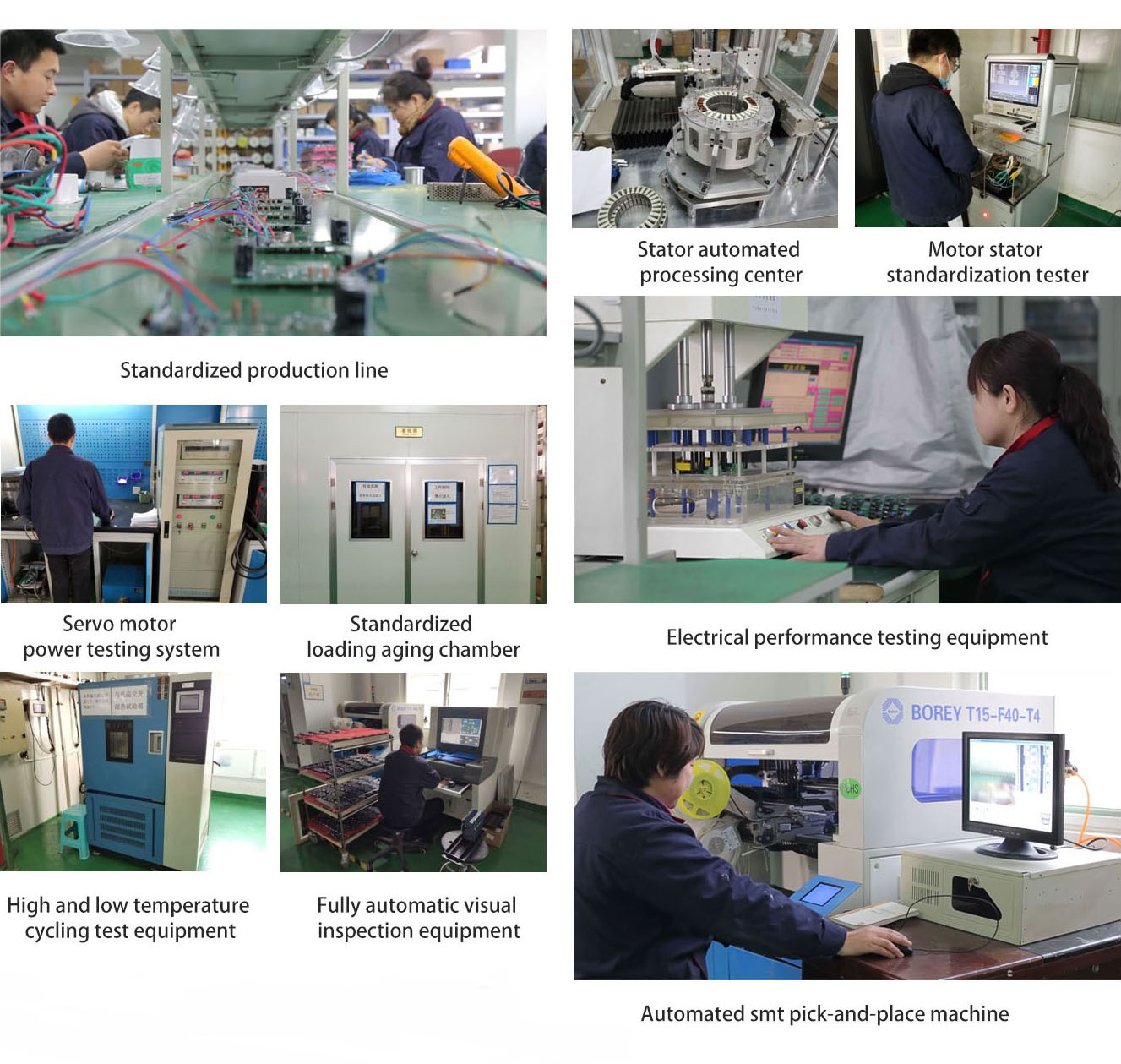

The main testing instruments include power testing equipment for servo motors, standardized load aging chamber, high and low temperature cycle test equipment, motor stator standardized tester, fully automatic visual inspection equipment, electrical performance test equipment, LCR bridge tester, and withstand voltage tester, electrolytic capacitor withstand voltage and leakage current tester, MOS tube tester, electric blast drying oven, salt spray test chamber, Rockwell hardness tester, etc. to ensure the stability and reliability of product quality.
