12V Auto Steering Motor
Rated Voltage: 12V
Power Supply Range: DC 9-36V
Rated Power: 50W
Rated Current: 10A
Rated Speed: 100RPM
Motor control mode: RS232/CAN/CANopen
Feedback element: Incremental encoder
12V Autosteering Motor support AGOPEN GPS.
Servo design, high control precision, the accuracy of 0.1 degrees.
Integrated design, simple installation and easy maintenance.
Product Description:
Unmanned Driving Auto Steering Motor is a brushless DC torque motor, integrated design, easy installation, support 12V and 24V power supply system.Servo motor is designed for the use of agricultural machinery, to meet the vibration characteristics, three prevention (moist-proof, dustproof, anti-salt spray), temperature characteristics and other requirements.
Product Information:
Model | KY173DD01005-08-HC |
Rated Voltage | DC 12V/24V |
Power Supply Range | DC 9-36V |
Rated Power | 50W |
Rated Current | 10A |
Rated Speed | 100RPM |
Instantaneous Max.Current | 20A |
Working Mode | Speed Mode, Position Mode |
Under voltage protection | 7V（Can set） |
Over voltage protection | 32V（Can set） |
Control Method | RS232/CAN/CANopen |
Feedback Part | Incremental encoder |
Operating Temp. | -25-+55℃ |
Storage Temp. | -35-+65℃ |
Protection Grade | IP55 |
Cooling Method | Natural Cooling |
Weight | ≤5kg |

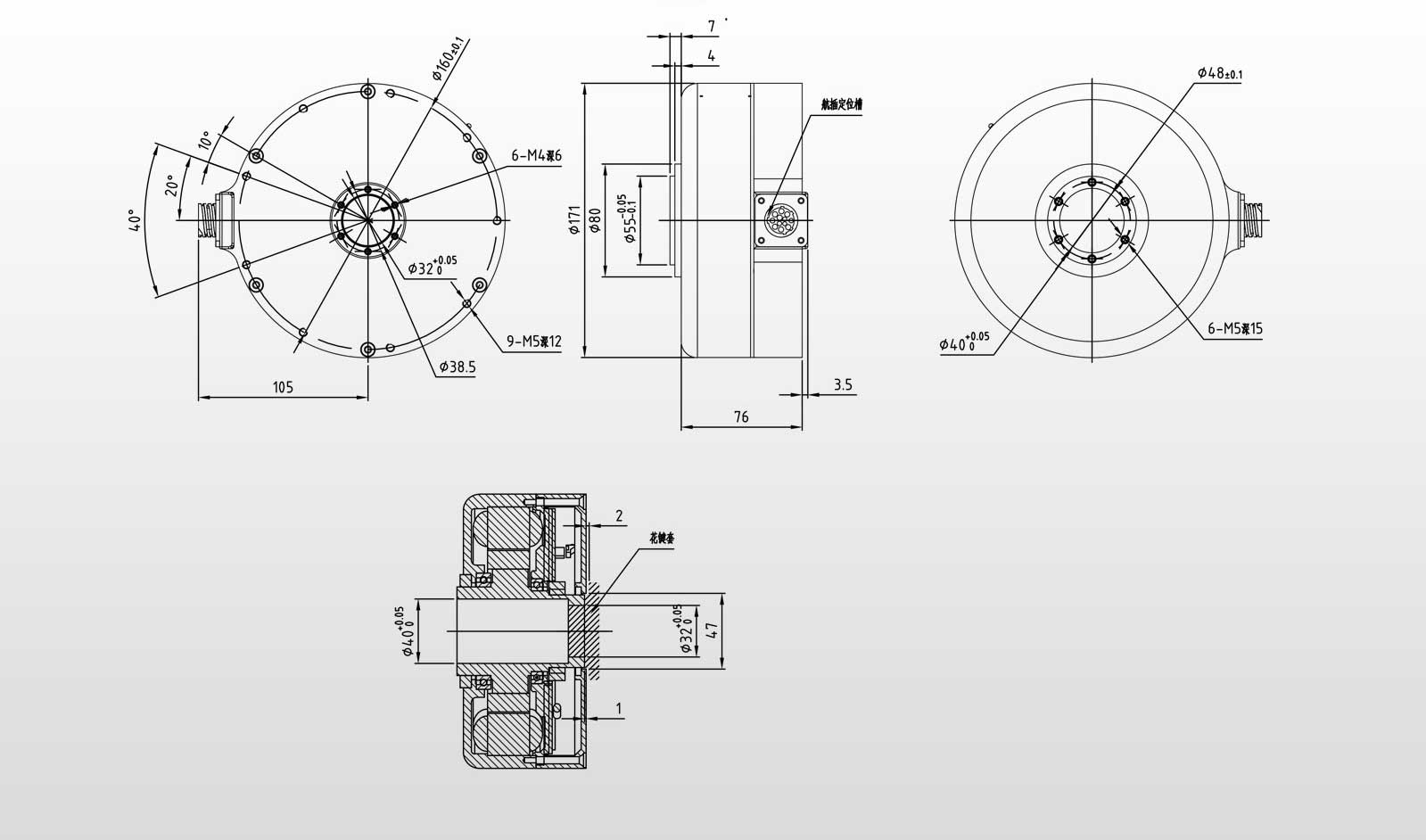

Product drawing:
Adapters For Different Tractors | |||
Adapter model | Tractor Brands &Models | Adapters teeth | Adapters size |
A | 1. John Deere 2. CASE 110 3.New Holland (1404, 2104, 6070, 110-90, 165, TD85D, 1654, 1304) 4. Fendt(716) 5. French Renault11404 | 36 | 21.8-22.1 |
B | 1.WORLD 1304，2204，604，904, 1404，1604 | 36 | 18.2 |
W | 2. DEUTZ (904,454,604,704,804 1204，1604,1654) | 36 | 18.5 |
N | 1. CASE(PUMA145,185CVX) 2. CLASS 3. MASSEY FERGUSON 4. Fendt (936) 5. Valtra N154 | 36 | 15.8 |
D | 1. CASE CVX 1170 2. Fendt (Vario 772, 714 Vario, 2204) 3. LAMBORGINI | 36 | 20.4 |
F | Valtra(2104,191,1904,1504,8158 T183,T171) | Single key | 24.5 |
K | Belarus MTZ 824, 1204 | 36 | 17.8 |
NH40 | 1. New Holland 1304, TS100 2. CASE MXM | 40 | 17.7 |
T | 1. Kubota 594 2. Yanmar Agrica AC21W | 18 | 15 |
Application Areas:
The steering wheel motor is mainly used in unmanned agricultural machinery, low-speed unmanned vehicles and road engineering vehicles, etc. Its design fully meets the requirements of complex working conditions such as farmland deep tillage, paddy field and high viscous soil, so as to ensure stable and reliable steering control in harsh environments.

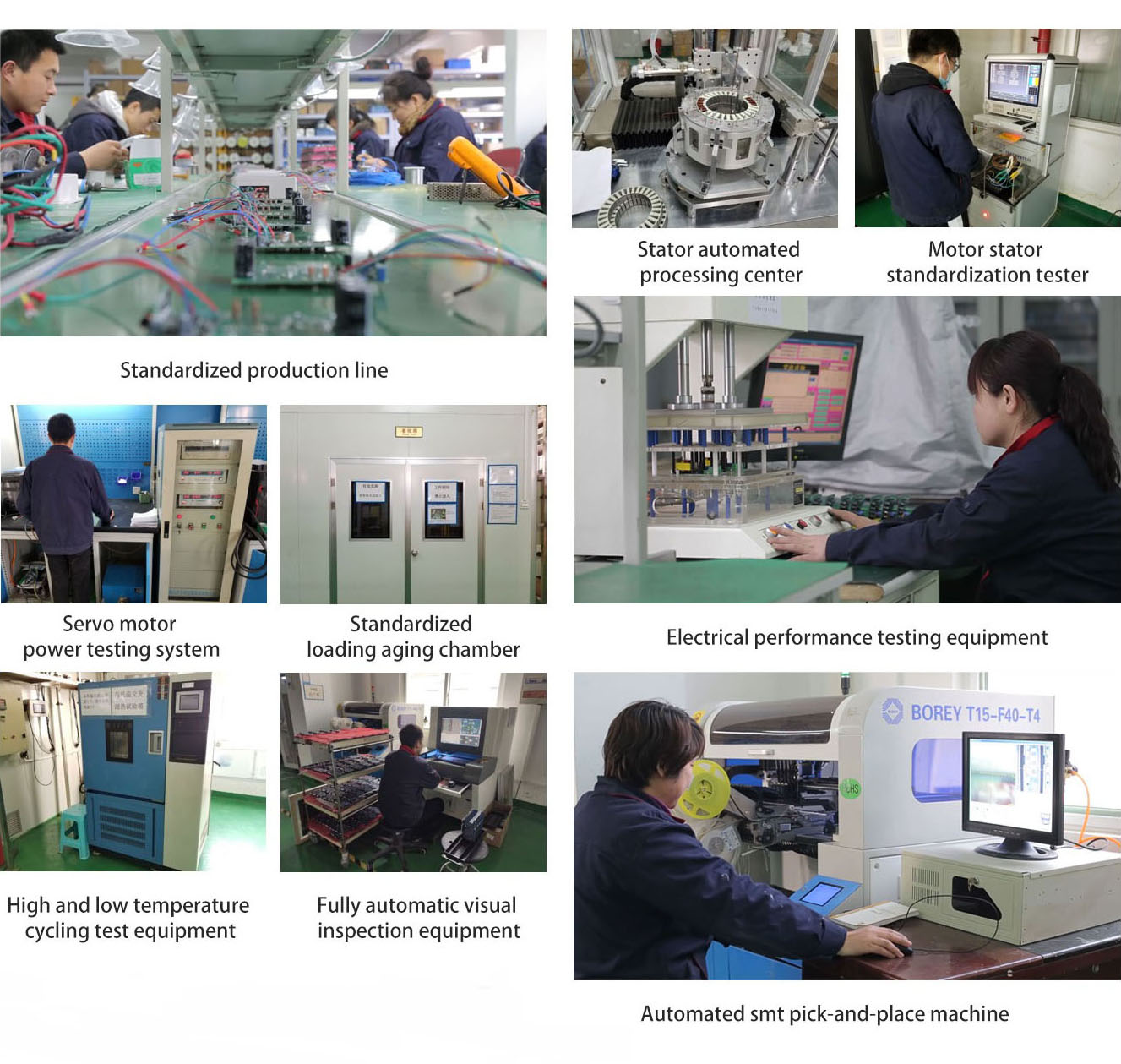

Advanced Equipment&Workshop:
The company has a complete product quality control system and has passed the ISO9001 international quality system certification. The process quality control of products before delivery implements "four controls", namely first item control, inspection control, final inspection control, and finished product inspection control before shipping. After strict inspection in the testing process, the "8D" model is adopted for the discovered problems, tracing the root causes of the problems, and improving the closed loop and PDCA cycle.
The main testing instruments include power testing equipment for servo motors, standardized load aging chamber, high and low temperature cycle test equipment, motor stator standardized tester, fully automatic visual inspection equipment, electrical performance test equipment, LCR bridge tester, and withstand voltage tester, electrolytic capacitor withstand voltage and leakage current tester, MOS tube tester, electric blast drying oven, salt spray test chamber, Rockwell hardness tester, etc. to ensure the stability and reliability of product quality.
FAQ:
Q1: Product price?
A1: We offer a flexible tiered pricing strategy to ensure you get the best value for money
Tiered discounts: The larger the purchase volume, the greater the unit price discount
Customized quotation: We provide an exclusive quotation based on your specific requirements (such as model/quantity/delivery cycle)
Q2: Product quality?
A2: We have passed the ISO9001 international quality management system certification and adopted the 8D+PDCA dual-cycle quality management model to ensure closed-loop quality control.
Q3: Product transportation and delivery?
A3: Inventory products will be dispatched within 24 hours. For other products, the production progress will be fed back in real time to ensure on-time delivery.
