Chassis Platform
RMP-BL200
Compact chassis design with ultra-low energy consumption
Compact and flexible, adaptable to narrow industrial spaces
4-wheel independent drive with powerful-power output
Explosion-proof body structure design, suitable for class II explosion-proof areas
Built-in VCU supporting rapid secondary development
Product Description:
The Manda Intelligent RMP-BL200 is a mobile robot chassis that has obtained dual explosion-proof certificates for IIC class dust and hazardous chemicals. The power of the explosion-proof wheeled chassis is driven by four independent servo motors and planetary reducers, with a maximum load of 100kg and a climbing Angle of 20°. The steering form is four-wheel differential type. The wheeled chassis is made of corrosion-resistant aluminum alloy and features light weight and corrosion resistance. This wheeled chassis platform is equipped with a standard CAN communication VCU, providing users with convenient and efficient secondary development support. It is particularly suitable for the expansion of robot applications in dusty and flammable and explosive environments by scientific research institutions and industry users, meeting the needs of diversified and customized robot development in the explosion-proof field.
Parameters:
Description | Specification | Description | Specification |
Model | RMP-BL200 | Steering mode | Four-wheel differential type |
Overall dimensions | L1105×W580×H520mm±50mm | Curb weight | 160kg±20kg |
Operation speed | 0~4.5km/h | Battery life | 6h (empty load) 5h (full load) |
Obstacle negotiation height | ≤60mm | Climbing angle | 20° |
Ground clearance | 85mm±10mm | Rated load | 80kg |
Turning diameter | 1400mm±100mm | Hanging form | None |
Tire specification | Diameter 320mm × Width 74mm Solid Tire (± 10mm) | Obstacle avoidance form | safety edge |

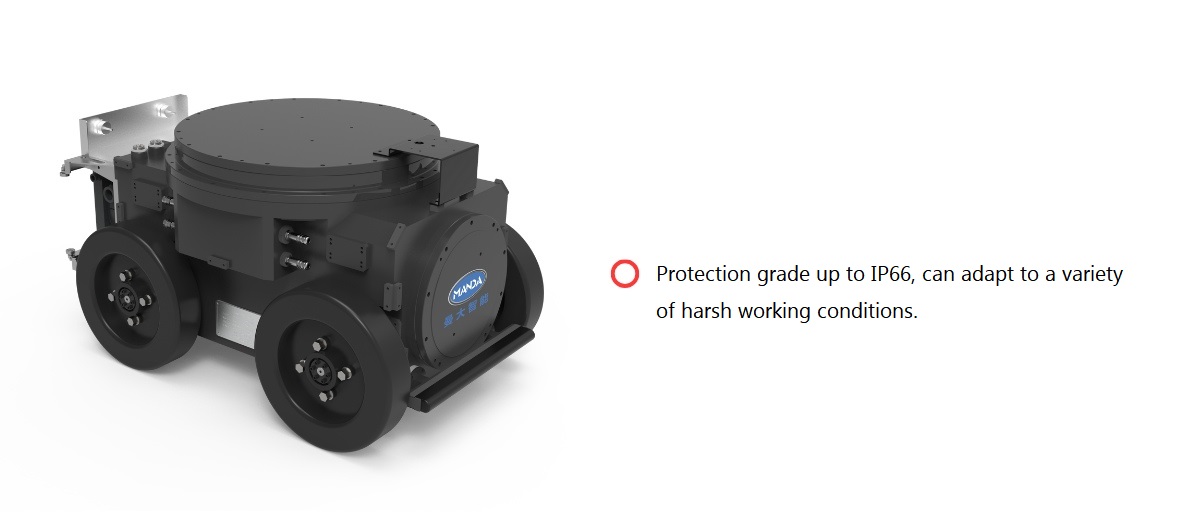

Explosion-proof rating | Ex db ib IIC T4 Gb Ex tb ib IIIC T130℃ Db | Protection level | IP66 |
Control method | Handheld remote controller | Remote control distance | 50m (Line-of-sight (LOS) range) |
Charging time | 3h (up to 80% battery capacity) | Charging method | Manual/wireless charging |
Battery parameters | DC48V 52Ah lithium iron phosphate | Working temperature | -30℃~+55℃ |
Braking method | Enable braking+electromagnetic brake | Communication protocol | CAN |
Charge pile | Optional wireless charging station | ||

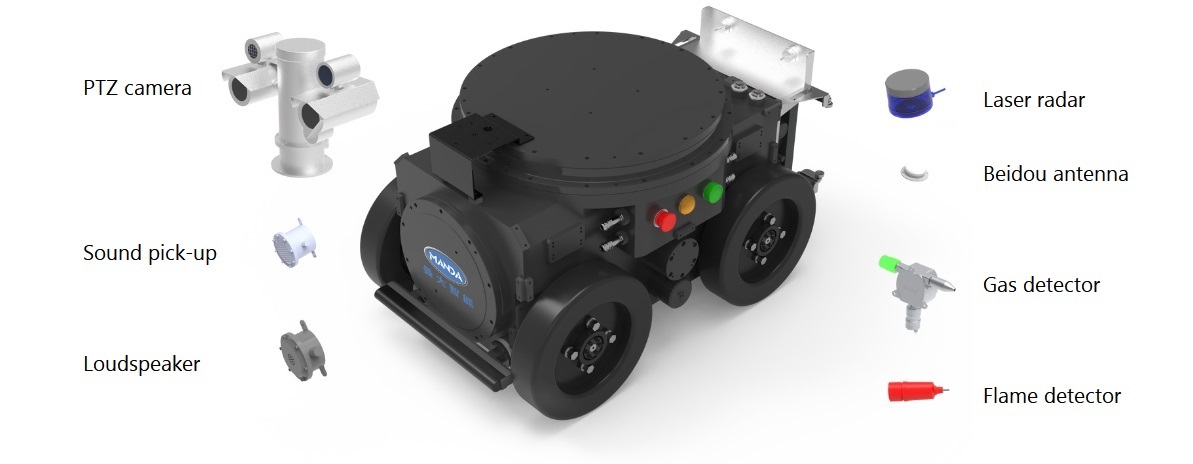

Navigation | Optional LiDAR navigation and Beidou navigation (with APP and protobuf protocol provided) | ||
Application:

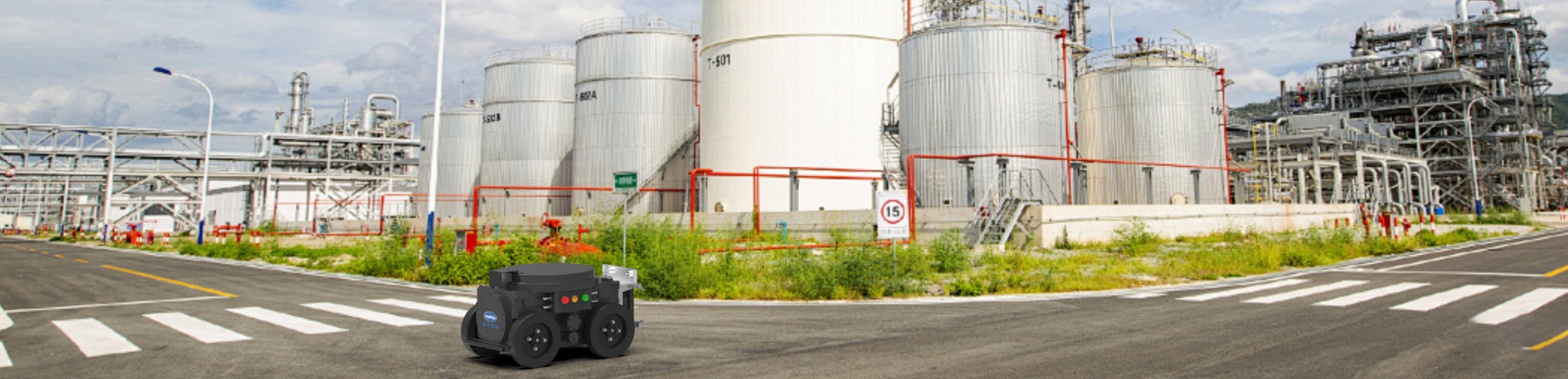

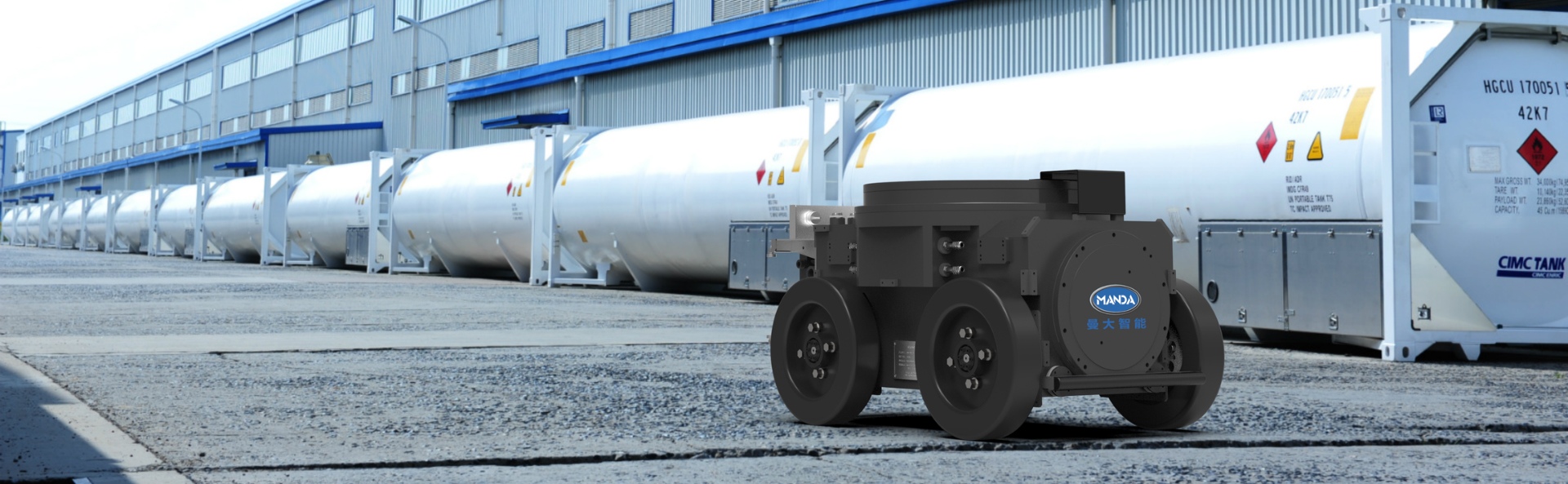

The wheeled robot platform is specially designed for mobile operation needs in various high-risk environments, fully covering operation fields with explosion-proof requirements. Such as flammable gas environments like petrochemicals and natural gas storage and transportation, as well as places with flammable and explosive dust like grain silos and metal dust. It can provide safe and reliable mobile robot platform solutions for various high-risk operations such as intelligent inspection, emergency rescue, exploration and reconnaissance.

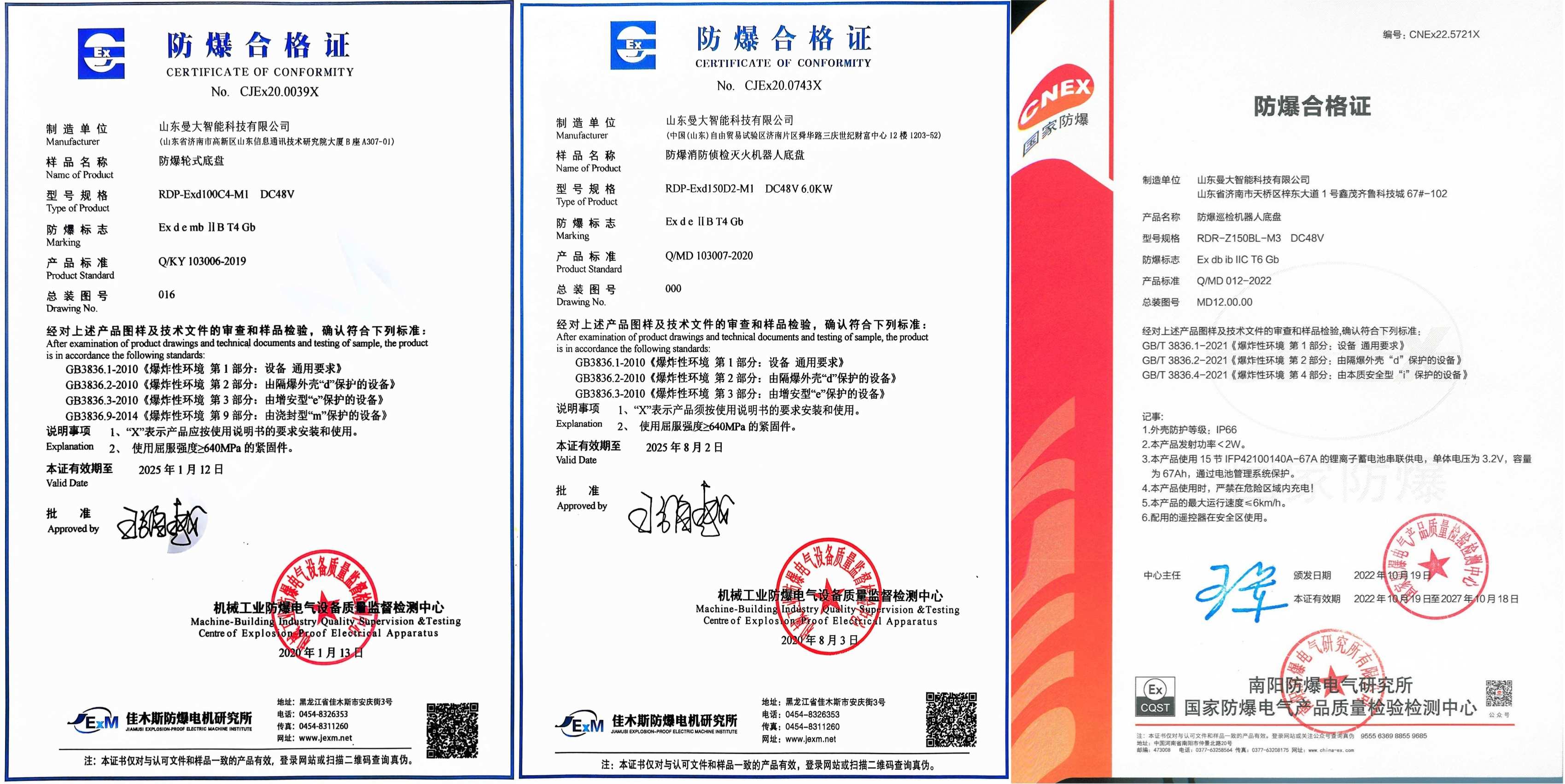

Certificate:
To ensure the stability of product quality and meet the demands of the international market, Manda Intelligent has fully implemented the standardization of management and products. The enterprise's products have been certified by national and international authoritative institutions, and have cumulatively obtained multiple explosion-proof qualification certificates and test reports.

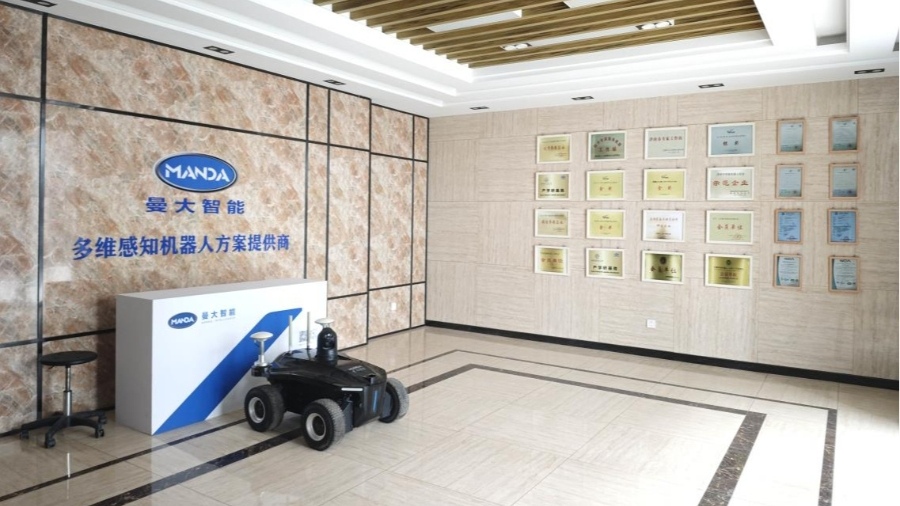

Advanced Equipment&Workshop:
In the research and development process of mobile robot chassis, mainstream simulation software is used to prevent risks in advance. In terms of quality, we strictly control the quality, introduce a complete product quality management system, trace the root cause of problems, improve the closed loop, and implement the PDCA cycle. The main testing equipment includes a robot comprehensive aging record test bench, high and low temperature alternating wet heat test chamber, motion simulation equipment, etc., to ensure the stability and reliability of product quality.
