24 Volt Motor Driver

Operating Voltage: DC 24/48V
Ultimate Supply Voltage: DC 16-55V
Adaptable Motor Power: 500W/1000W
Rated Current: 25A
Working Mode: Speed Mode
Cooling Method: Natural Cooling
Control Method: 0-5V；Potentiometer
With overvoltage, undervoltage, overheating, short circuit protection function

Contact Now E-Mail Telephone WhatsApp

Product Details

Product Description:

The DC Servo Motor Driver adopts double closed-loop PI regulation, and the output current and braking current can be set separately. Dedicated single-chip microcomputer intelligent control, make Brushed Motor Driver respond fast, run smoothly, work reliably.

Product Information:

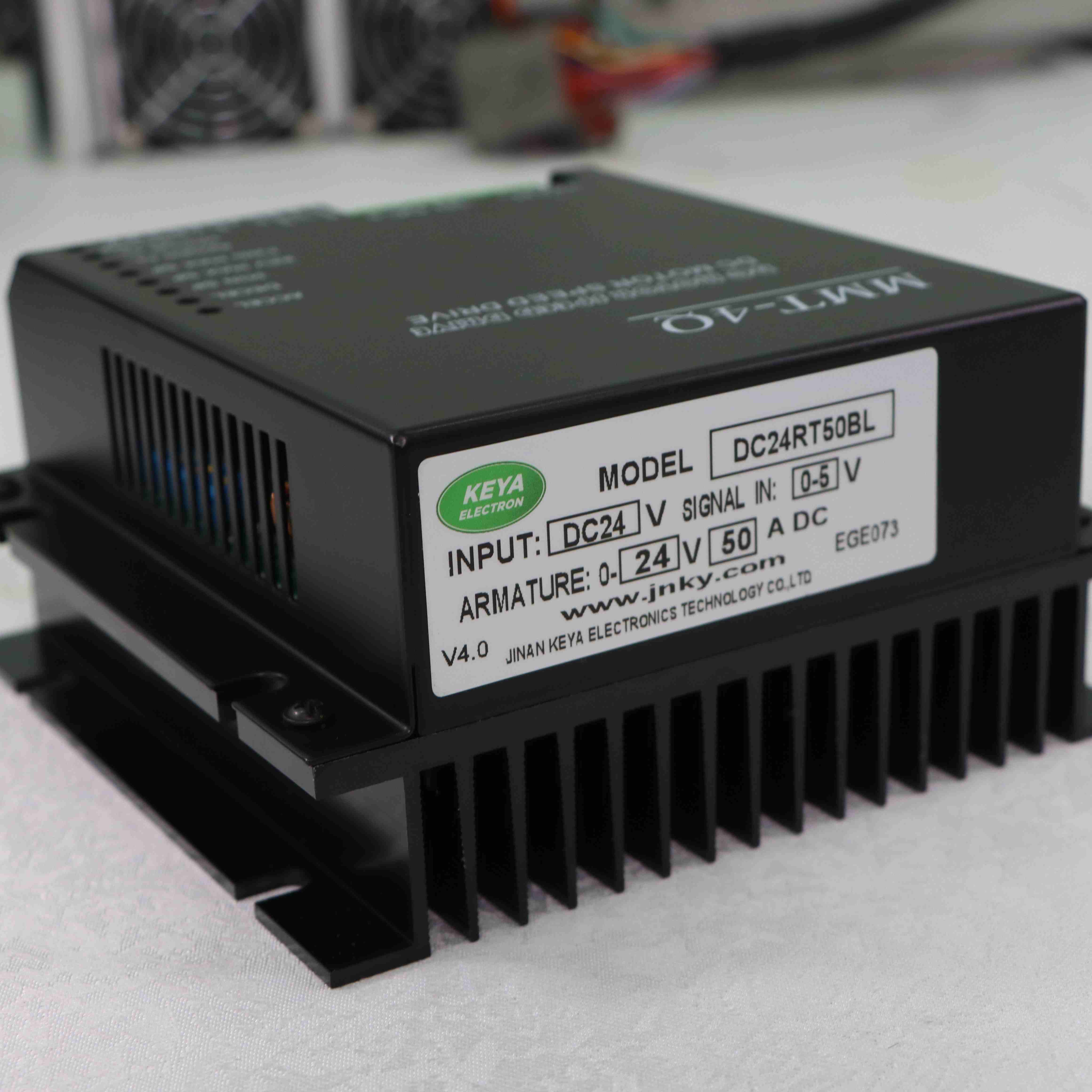

Model	DC24RT50BL
Parameters
Operating Voltage	DC 24/48V
Ultimate Supply Voltage	DC 16-55V
Adaptable Motor Power	500W/1000W
Rated Current	25A
Instantaneous Max.Current	50A
Overcurrent Time	Over-current limit
Signal Feedback
Working Mode	Speed Mode
Cooling Method	Natural Cooling
Control Method	0-5V；Potentiometer
Operating Temp.	-20℃-+55℃
Storage Temp.	-30℃-+65℃
Insulating Properties	The output and input are insulated to DC600V from the chassis, leakage current is 0.07mA, insulation resistance is above 20MΩ.
Protective Properties	Dust-proof, Moisture-proof, Salt Spray-proof
Protective Function	Over voltage/Under voltage/Over heated/Short-circuit
Controllable Speed Range	0-Max.speed
Protection Level	IP20
Dimension	13513570mm
Weight	0.86kg
