Tractor Power Steering Motor
Rated Voltage: 12V/24V
Power Supply Range: DC 9-36V
Rated Power: 50W
Rated Current: 10A
Rated Speed: 100RPM
Motor control mode: RS232/CAN
Feedback element: Linear encoder
Autosteering Motor support AGOPEN GPS.
Servo design, high control precision, the accuracy of 0.1 degrees.
Integrated design, simple installation and easy maintenance.
Product Description:
High precision integrated unmanned steering wheel steering wheel, control accuracy of 0.1 degree, easy installation and easy maintenance, working mode is speed mode and position mode, cooling mode is natural cooling, control mode is RS232/CAN/CANopen.
Product Information:
Model | KY170DD01005-08G |
Rated Voltage | DC 12V/24V |
Power Supply Range | DC 9V-36V |
Rated Power | 50W |
Rated Current | 10A |
Rated Speed | 100RPM |
Instantaneous Max.Current | 20A |
Working Mode | Speed Mode, Position Mode |
Under voltage protection | 7V（adjustable） |
Overvoltage protection | 32V（adjustable） |
Control Method | RS232/CAN |
Feedback Part | Linear encoder |
Operating Temp. | -25-+55℃ |
Storage Temp. | -35-+65℃ |
Protection Grade | IP55 |
Cooling Method | Natural Cooling |
Weight | ≤5kg |

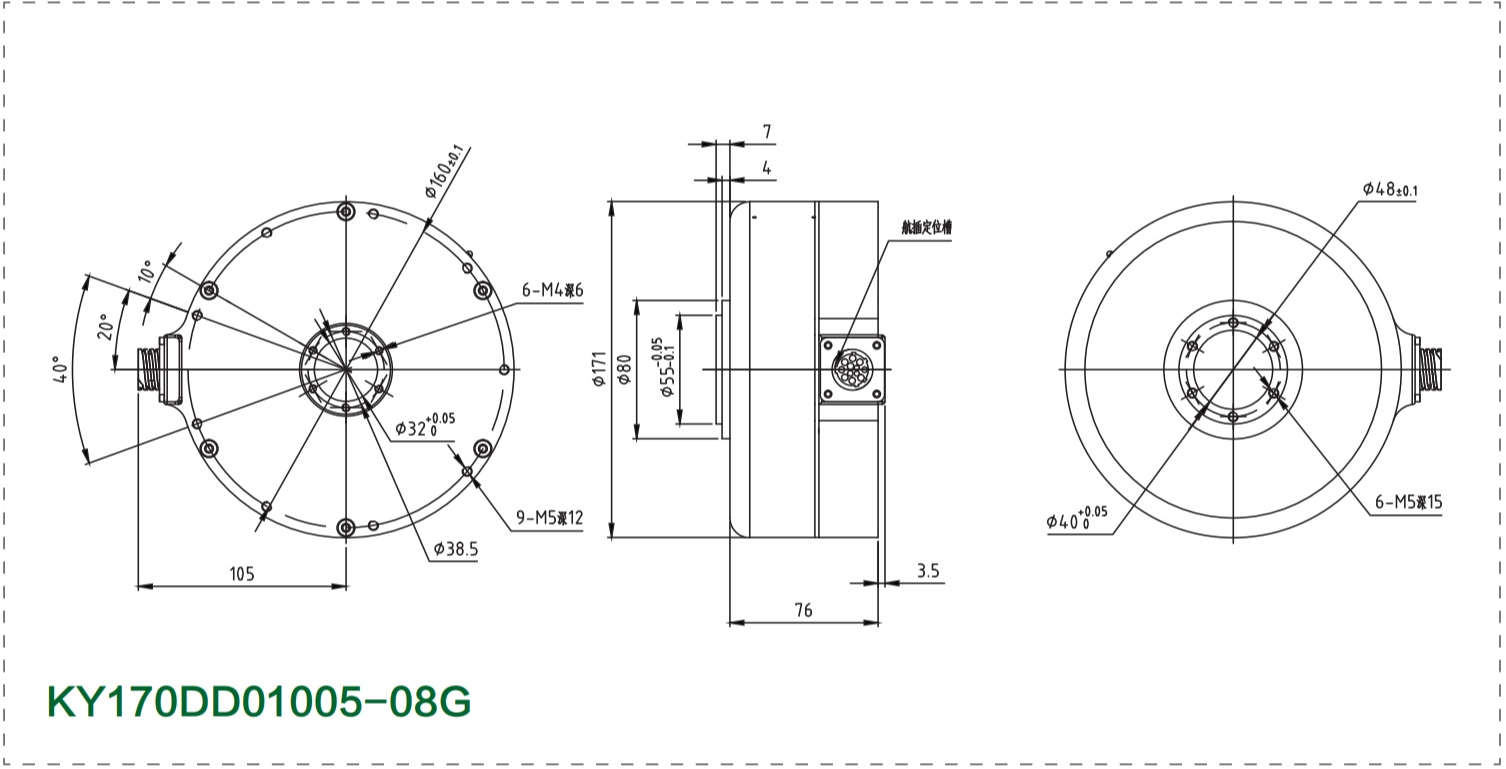

Product drawing:
Certificate:
Application Areas:
It is used for unmanned agricultural machinery, road engineering vehicles,low-speed unmanned vehicles, etc.

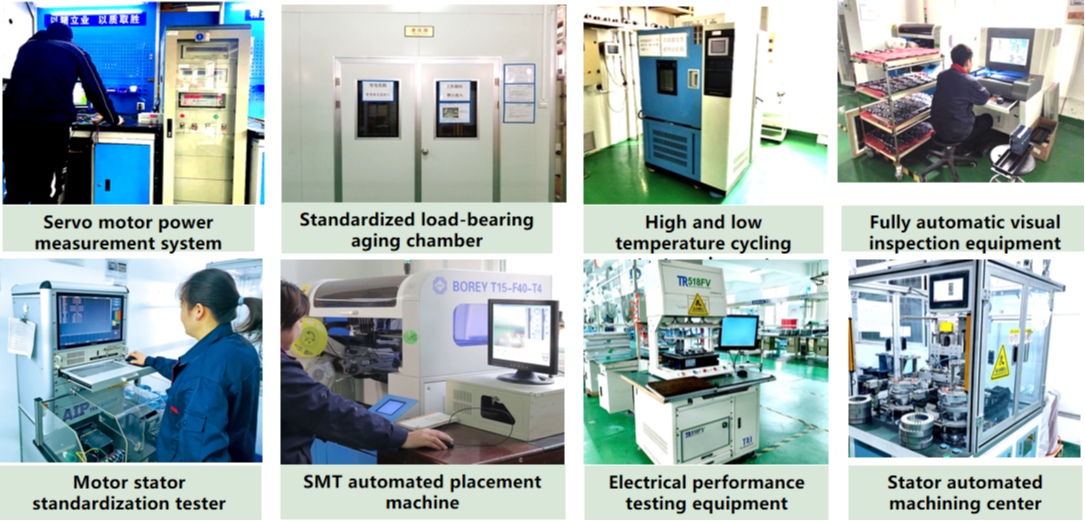

Advanced Equipment&Workshop:
FAQ:
Price description?
We support tiered pricing. The larger the purchase volume, the greater the discount. For more details, please contact our customer service to obtain a dedicated quotation plan.
Product quality?
Strictly adhering to ISO9001 and CE certification standards, the full-process quality control ensures the outstanding performance and long-term stable operation of servo motors, drivers and other products.
Product delivery?
Regular models have products in stock and can be arranged for shipment quickly. For other products, the production progress is synchronized in real time to ensure efficient delivery.
