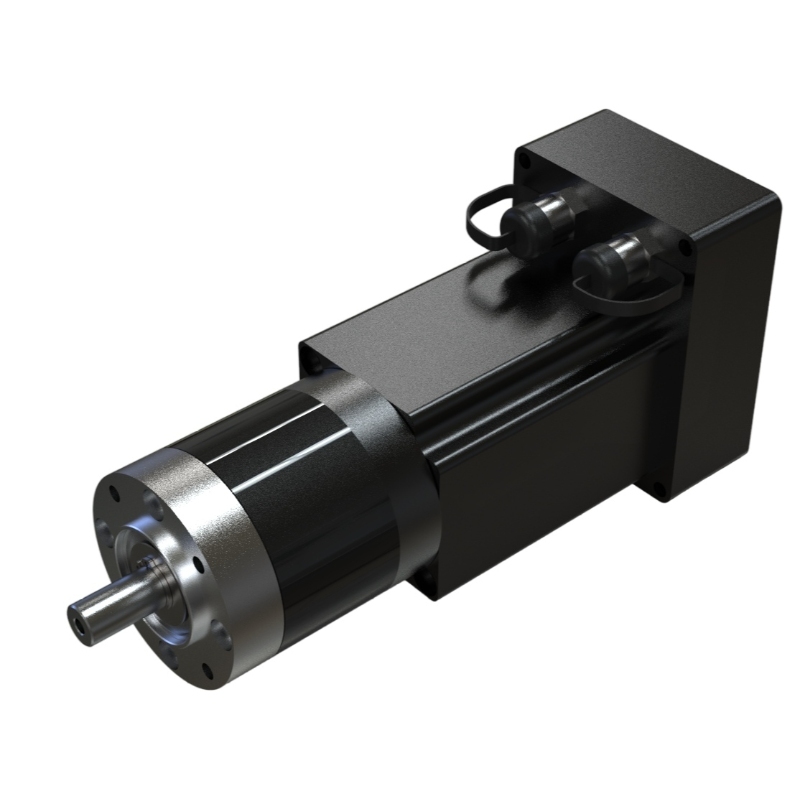

12 Volt Seeder Motor

Product Description:

Servo seeding integrated motor integrates servo motor, reducer, seed scheduler and servo controller into single module, combined with precision agricultural technology, to achieve efficient and intelligent agricultural seeding operation (such as corn, soybean, etc.), improve seeding accuracy and operation efficiency.

Product parameters:

Operating Environment:

1. Operating Temperature: - 25~55℃ (based on ambient temperature);

2. Storage Temperature: - 35~65℃ (based on ambient temperature);

3. Humidity: 5% - 90%RH, with condensation (25℃);

4. Protection Level: IP65, resistant to forward rain;

5. Insulation Performance: Input to the machine case is DC600V, leakage current is 0.07mA, and insulation resistance is above 20MΩ;

6. Three - Proof Requirements: Meet the three - proof requirements (dust - proof, moisture - proof, salt - fog - proof);

7. Vibration Requirements: Frequency 5HZ - 25HZ, amplitude 3mm, 0.09g. 25HZ - 200HZ, amplitude 1.47mm, 116g. 30 minutes for each direction of horizontal, vertical, and longitudinal;

8. Cooling Method: Natural Cooling;

Typical Applications:

1. Articulations of collaborative robots

2. End - effectors of robots

3. Robot exoskeletons

4. AGV

5. Highly integrated servo motors

6. BLDC motors for model aircraft

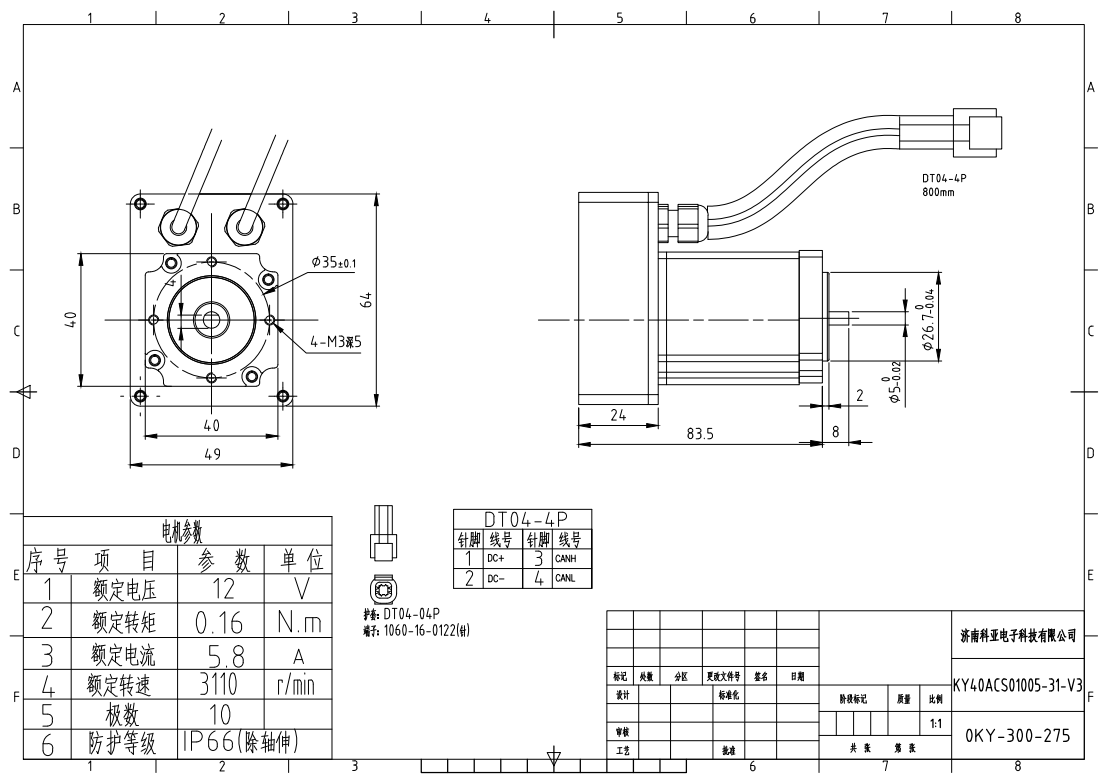

Product Drawing:

Certificate:

Application Areas:

Advanced Equipment&Workshop:

FAQ:

1. Product price?

   The more you purchase, the greater the discount you can enjoy. For specific price plans, please feel free to consult us online at any time. We will provide you with the best quotation.

2. Product quality?

   Servo motors, matching servo drivers and other products strictly follow the ISO9001 international quality system standard and have passed the CE certification. Each product undergoes multiple quality inspection processes before leaving the factory to ensure reliable quality.

3. Product delivery?

   Inventory products support quick delivery and will be arranged immediately after the order is confirmed. Non-inventory products will be delivered strictly in accordance with the agreed delivery cycle in the contract to ensure on-time delivery.
