Hydraulic Pump Motor
Rated Voltage：DC 24V-96V
Rated Power：1.5KW-5KW
Comprehensive efficiency reaches 93%
FOC vector control, high-precision encoder feedback,and stable pressure output.
Protection Level：IP67
It can be used in scissor type lift work platforms, boom aerial vehicles,DC power supply variable frequency hydraulic power units, electric auxiliary steering of engineering machinery, special vehicle walking, etc.
Product advantages:
The hydraulic pump motor adopts an integrated design, with a compact structure, small space occupation and convenient installation. The starting current is small and the torque is large. The system is highly efficient, with the overall maximum efficiency reaching 93%. It is FOC vector control with a built-in high-precision encoder, ensuring stable pressure output. Except for the motor shaft, the protection grade is as high as IP67, meeting the dust-proof and water-proof requirements in complex working environments. At the same time, the driver and servo motor are equipped with independent temperature alarm thresholds and protection devices to ensure that the motor can still operate stably in high-temperature environments and avoid performance degradation or failure caused by overheating.
Product parameters:
Model | KYIS130ACS24200-40L | KYOS130ACS24200-35L |
Parameters | ||
Rated Voltage | 24V±10% | |
Limiting Supply Voltage | 18-32V | |
Rated Power | 3500W | |
Rated Current | 110A±5% | |
Rated Speed | 3000RPM | |
Rated Torque | 9.55N·m | 11.1N·m |
Max. Speed | 4000RPM (At the rated voltage） | 3500RPM (At the rated voltage） |
Instantaneous Max.Current | 200A±5% | 200A±5% |
Instantaneous Max.Torque | 16N·m | 20N·m |
Number of Poles | 10 | |
Feedback Part | Encoder | |
Control Method | Analog quantity/CAN/CANopen | |
Ambient Temp | -25-+50℃ | |
Insulating Properties | The output and input are insulated to DC600V from the chassis, leakage current is 0.07mA, insulation resistance is above 20MΩ. | |
Connector | TE 776286-1 (Control end connector) | |
Protective Properties | Dust-proof, Moisture-proof, Salt Spray-proof | |
Target humidity | 0%-90%RH、There is condensation (25℃) | |
Vibration Requirements | Frequency: 5-25Hz, amplitude: 3mm,0.09g 25-200Hz, amplitude 1.47mm,116g | |
Protection Level | IP67 (Except for the motor output shaft) | |
Cooling Method | Natural Cooling | |
Weight | 9.8kg | 10.5kg |

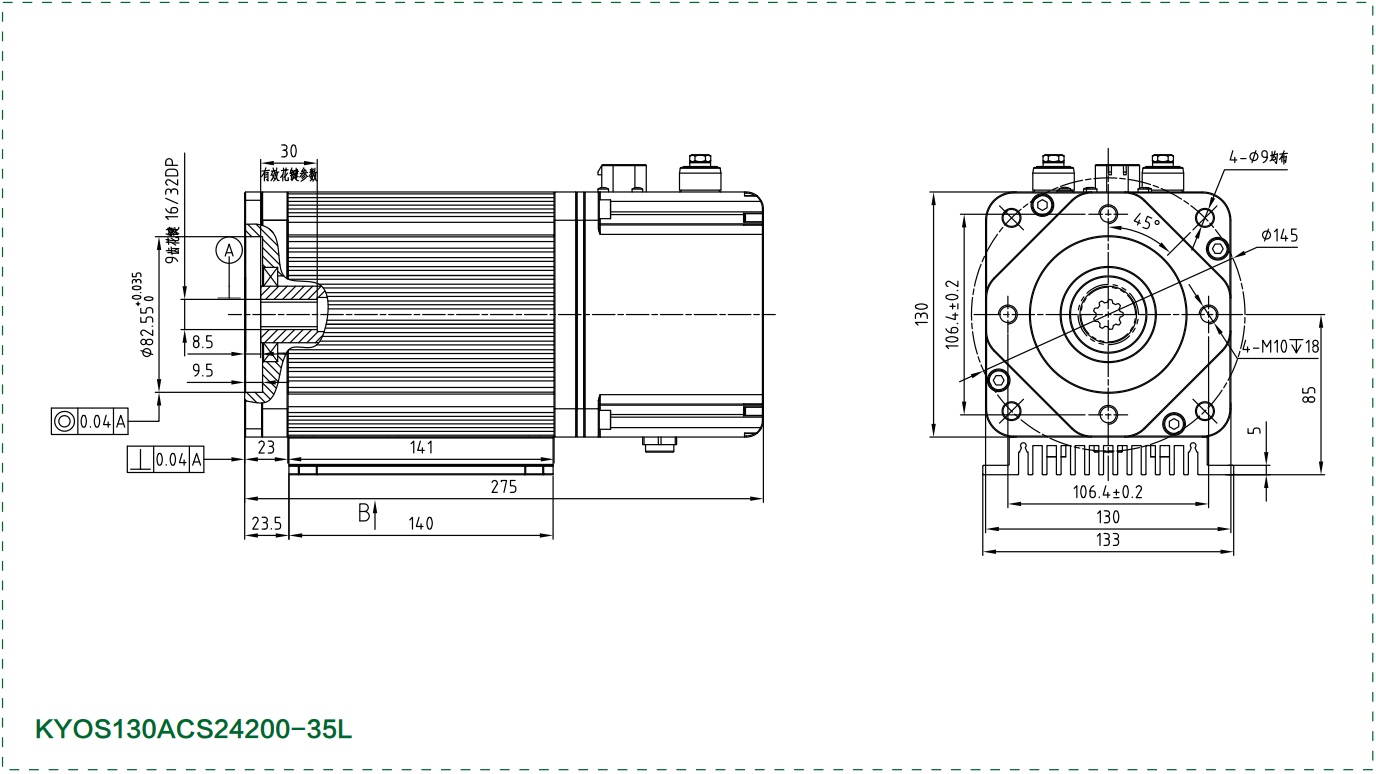

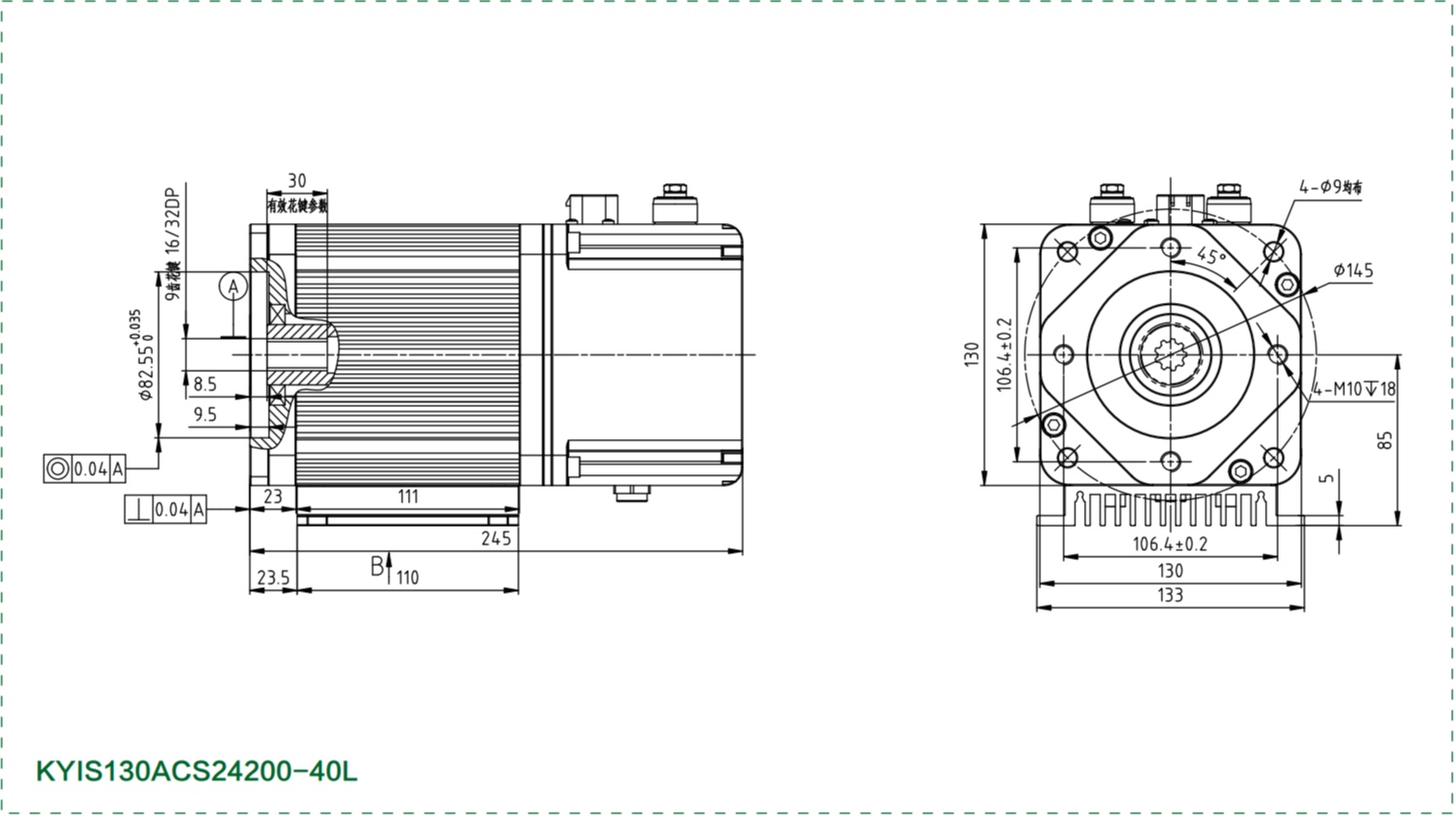

Drawing:

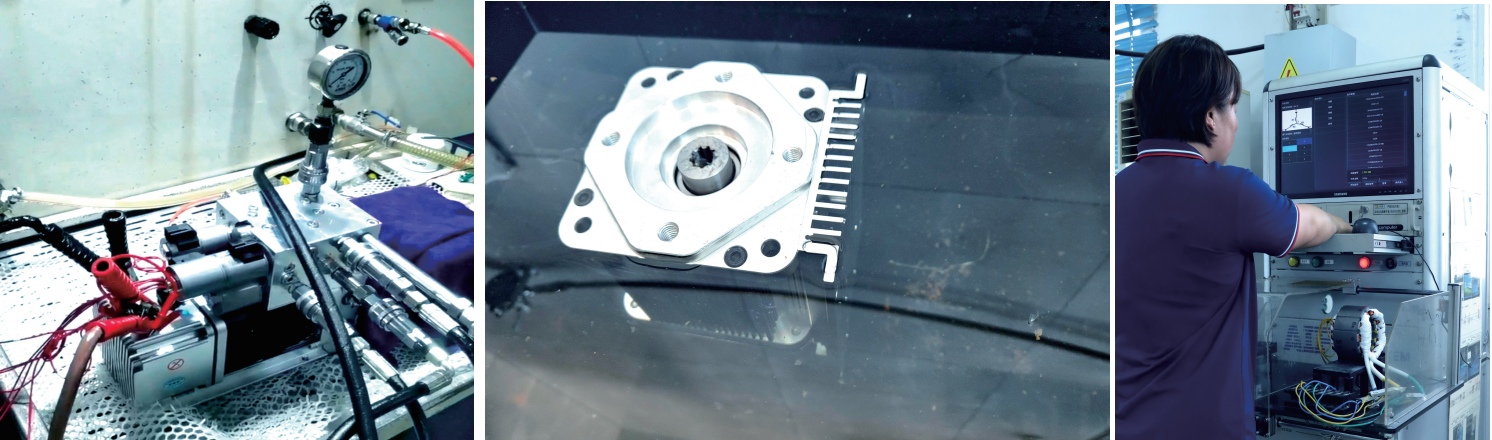

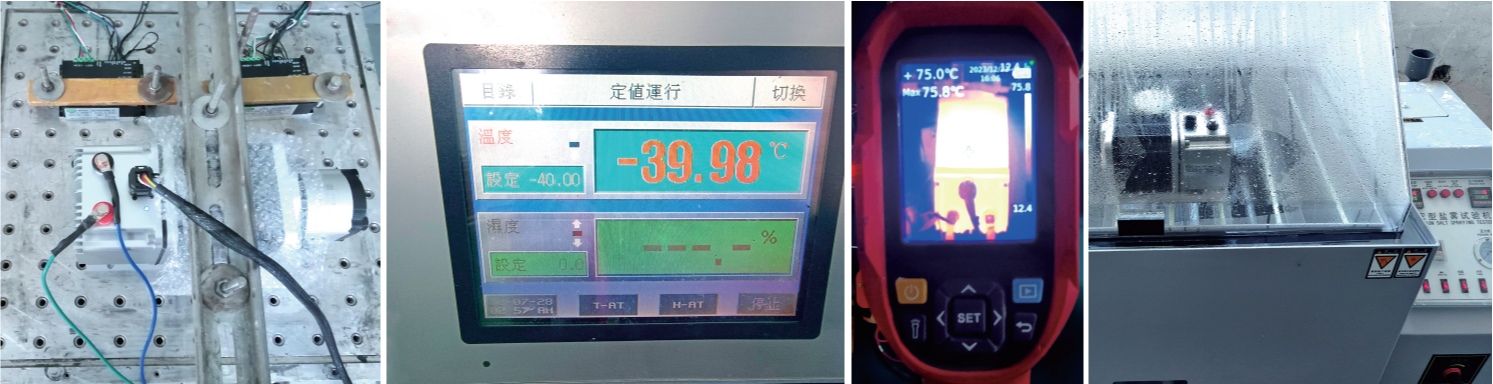

Product Performance Testing:
Hydraulic pump motor undergoes a number of strict performance tests before leaving the factory, such as vibration test, low-temperature test, high-temperature test, salt spray test, load aging test for 1000 hours, waterproof test and stator inspection, etc., to ensure the continuous and reliable operation of the equipment in environments such as vibration, temperature difference and corrosion.

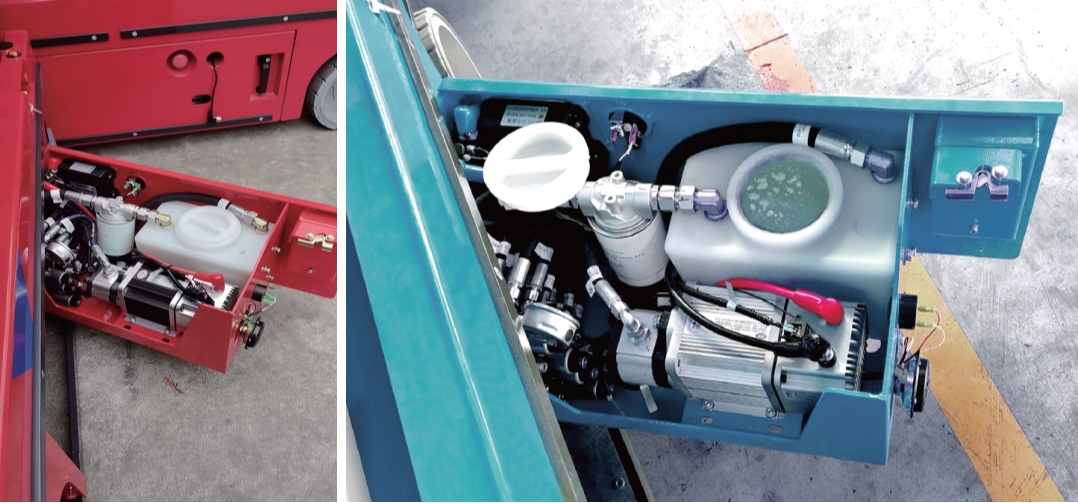

Product Installation Diagram:
Industry Applications:
Hydraulic pump motor is applicable to scissor lift platforms, boom aerial work platforms, DC variable frequency hydraulic systems, steering of construction machinery and drive of special vehicles, etc. In scissor lift work platforms, it can provide stable power to ensure smooth and accurate lifting. In boom-type aerial work platforms, rapid dynamic response enables smooth movement of the telescopic boom. In the electric-assisted steering of construction machinery, the steering flexibility can be enhanced.

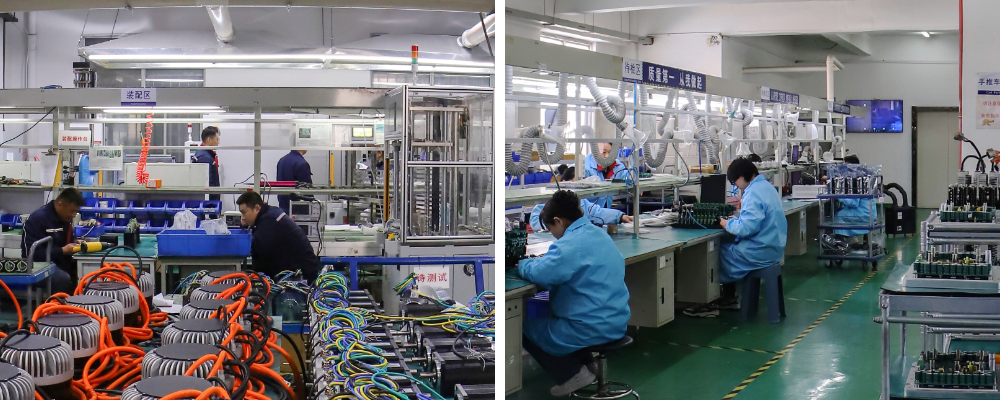

Advanced Equipment&Workshop:
FAQ:
Quality Assurance and After-sales Service:
The products strictly follow the ISO9001 quality management system and have passed the CE certification. Before leaving the factory, they all undergo strict quality inspection to ensure stable performance, safety and reliability. If you encounter any problems during use, our professional technical team will quickly customize solutions to assist you in solving them.
Product Prices and offers:
We always strive to enhance cost performance and offer market-competitive prices. Bulk purchases can enjoy price discounts. Welcome to contact us for an exclusive quotation.
Delivery time:
Products in stock will be dispatched after receiving the order. Customized products or those out of stock will be delivered strictly in accordance with the agreed time.
